How to Choose the Right Planar Spiral Antenna for Your Application
Choosing the right Planar Spiral Antenna demands careful attention to technical specifications, operational environments, and procurement priorities. At its core, the decision hinges on matching frequency range, bandwidth, polarization characteristics, and form factor constraints to your system's mission-critical requirements. For procurement engineers evaluating options across defense, aerospace, satellite, or telecommunications sectors, understanding how spiral geometry influences performance—combined with supplier capabilities like customization, compliance certifications, and delivery timelines—ensures optimized system integration and long-term reliability.

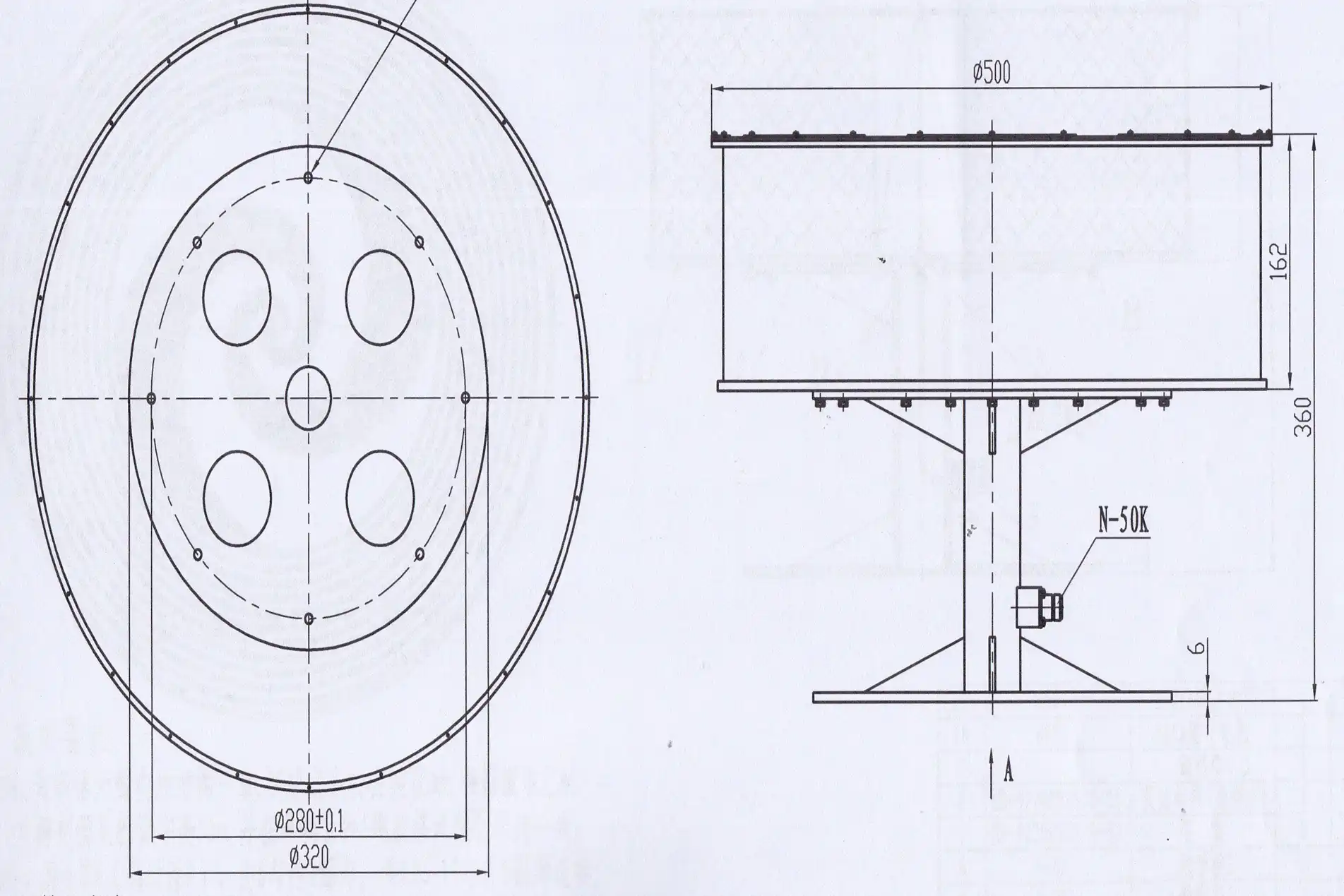

Understanding Planar Spiral Antennas: Basics and Working Principles
These antennas are a complex type of design that doesn't depend on frequency. They have conductive lines that are etched onto flat dielectric surfaces in spiral patterns that are usually Archimedean or equangular. Planar Spiral Antennas work by self-complementarity and angular constancy, while narrow-band resonant antennas are tied to specific bands. This lets them keep the same resistance, gain, and radiation patterns over very large frequency ranges, often reaching 10:1 or 30:1 frequency ratios.
How Active Region Translation Enables Broadband Operation
The idea of an "active region" is at the heart of their broad ability. As the working frequency changes, the area that is emitting moves along the spiral arms. At lower frequencies, radiation happens close to the outer diameter, where the circumference is close to the wavelength. When the frequency goes up, the active region moves closer to the feed point. This self-scaling behavior gets rid of the need to tune or switch between multiple Planar Spiral Antennas mechanically, which is a major problem in applications where the spectrum is fragmented.
Circular Polarization and Impedance Characteristics
Most implementations automatically create circular polarization, and the direction of the spiral winding determines which hand it is on. This feature is very useful in places where the transmitter and receiver orientations change quickly, like on airplanes where the platform can roll, pitch, and yaw, or on mobile satellite terminals. Self-complementary Planar Spiral Antennas have a free-space impedance that is close to 188 ohms, but built-in wideband baluns change this to standard 50-ohm coaxial interfaces so that the system can work together smoothly. Advanced Microwave Technologies Co., Ltd makes Planar Spiral Antennas that work from 1 GHz to 40 GHz and have circular polarization that stays the same. The shapes can be changed to fit your needs. Precision-etched traces on high-performance dielectric surfaces are used in our designs to make sure phase consistency across multi-octave bandwidths and meet ISO 9001:2015 quality standards.
Comparing Planar Spiral Antennas with Other Antenna Types
To make smart purchasing choices, you need to know how Planar Spiral Antennas compare to other options. The comparison shows how size, bandwidth, gain, and production complexity can be traded off depending on the application.
Planar Spirals vs. Patch Antennas
Patch antennas are great for narrowband uses because they have a resonant cavity structure that makes them more direct and easy to integrate into printed circuit boards. Their operating capacity, on the other hand, rarely goes above 10-15%. For systems that need to cover more than one band, like electronic warfare devices that check frequencies from 2 to 18 GHz at the same time, Planar Spiral Antennas get rid of the need for complex arrays by covering the whole spectrum in a single opening. Patch solutions would need more than one element with switching networks, which would make the system heavier and increase insertion loss.

Comparison with Helical and Log-Periodic Designs
Helical antennas have circular polarization and a modest bandwidth, but they need a long axial length, which can be a problem in aircraft uses that need to avoid drag. While log-periodic arrays have a wide bandwidth, their output is linearly polarized, so they need additional polarizers. Planar Spiral Antennas fit these features into a small package, meeting SWaP (Size, Weight, and Power) requirements that are important for UAV payloads and small ground terminals. Because they have less space, they are better when curved mounting or a small radar cross-section is needed.
Manufacturing and Cost Considerations
When it comes to buying things, Planar Spiral Antennas use well-known PCB fabrication methods, which makes scaling cheaper than with horn or conical log-spiral antennas that have a lot of moving parts. To get high-frequency performance above 20 GHz, you need base materials with stable dielectric constants and tight etching limits. These are things that affect lead times and unit costs.
Core Criteria to Evaluate When Choosing a Planar Spiral Antenna
To find the best solution, you need to carefully look at technical performance factors, compliance needs, and supply chain factors.
Frequency Range and Bandwidth Requirements
The low-frequency cutoff is set by the outer width, and the high-frequency boundaries are set by the inner feed point precision. When procurement teams list standards, they should check the real VSWR performance across the band that was given. If VSWR is more than 2.5:1 at the band ends, a range of 2–18 GHz doesn't mean much. Our normal designs keep VSWR below 2.0:1 over the whole working range. For specific sub-bands, we can make custom geometries.
Radiation Pattern and Gain Specifications
Planar Spiral Antennas usually have hemispherical coverage with beamwidths of 70 to 90 degrees and gains between 3 and 8 dBi. The almost omnidirectional design works well for monitoring and finding directions when the threat's angle is unknown. But radiation that goes in both directions (front and back lobes) needs cavity backing to work in only one direction. Reflective holes filled with a material that absorbs radar waves soak up back radiation. This makes the front-to-back ratio better but lowers efficiency by about 3 dB. When system budgeting, knowing about this trade-off keeps people from setting unrealistic goals for performance.
Polarization Purity and Axial Ratio
Axial ratio measurements are used to figure out the quality of circular polarization. Values below 3 dB show that the characteristics are truly circular, while higher ratios show elliptical polarization with possible signal loss when the orientation changes. The quality of the integrated balun has a direct effect on the uniformity of the axial ratio across the span. Feed-line radiation, which messes up patterns and lowers polarization purity, is caused by bad balun design. When you look over datasheets, make sure that the axial ratio is given for the whole frequency range, not just the center frequencies.
Material Durability and Environmental Compliance
Antennas that can handle changing temperatures, vibrations, and contact with the air are needed for mission-critical uses. High-quality dielectric laminates, like Rogers or Taconic materials, are used by Advanced Microwave Technologies. These meet IPC-6012 Class 3 standards for defense-grade durability. Our goods are tested in the MIL-STD-810 environment, which includes standards for rain, ice, and temperature shock. RoHS compliance makes sure that products can be sold all over the world, and hydrophobic radome options keep moisture from building up and changing the effective dielectric constants.
Procurement and Supply Chain Factors
Lead times, minimum order amounts, and the ability to customize have a big effect on how long a job takes to finish. Catalog items can be shipped within a few weeks, but custom frequency bands or mounting setups need prototype validation rounds. Clear information about MOQ levels helps balance the costs of inventory with savings for buying in bulk. Our management of the global supply chain makes sure that delivery dates are always met, and quality control is done at every stage of production.
Matching Solutions to User Needs: Personalized Recommendations
There are different practical needs in different areas that affect the choice between off-the-shelf and custom-engineered antennas.
Defense and Aerospace Applications
Ultra-wideband Planar Spiral Antennas that cover 2-40 GHz are useful for electronic warfare systems and radar warning receivers because they let them find threats across multiple radar bands at the same time. Temperatures can change from -55°C to +85°C, and these platforms have to move quickly and with a lot of force. Designs that are toughened up with hollow backing and conformal mounting surfaces meet strict requirements for vibration. For high-power microwave uses where standard designs can't handle the heat, we offer custom solutions with special high-temperature materials and unique balun architectures.
Satellite Communication Ground Stations
For CubeSat and LEO satellite telemetry to work, Planar Spiral Antennas need to be flat and compatible with ISIPOD deployment standards. Circular polarization lessens the effects of Faraday rotation in the ionosphere, which keeps data safe during fast orbital passes. Our 1-18 GHz designs support both uplink and downlink bands in a single small package, which makes building ground terminals easier. Custom frequency settings work with different satellite link bands, and low-profile designs let them be used on mobile ground vehicles.
Telecommunications Infrastructure
Base stations that need to cover multiple bands for 5G millimeter-wave frequencies use Planar Spiral Antennas that work above 24 GHz. The wideband features protect infrastructure against changes in how spectrum is allocated in the future. Because our designs are small and light, they fit right in with current tower structures and don't need any extra support. Customized radiation patterns are the best way to make sure that specific building shapes are covered for specific industrial IoT applications that need reliable connectivity in tough RF environments.
Research and Development Environments
Flexible antenna options are useful for university labs and corporate R&D teams that are developing ground-penetrating radar or non-destructive testing systems. High-resolution readings in the time domain are possible thanks to ultra-wideband pulse accuracy and low ringing. We offer fast prototyping services with shorter wait times, which lets you make changes to your idea over and over again. When researchers are working on new apps, our tech team can help them figure out how to balance bandwidth, size, and power handling.
When looking for suppliers, think about working with companies that have strong RF knowledge, quality systems that are ISO-certified, and a history of success in your application sector. For more than 20 years, Advanced Microwave Technologies has helped defense companies, satellite operators, and telecom integrators. Our 24-meter anechoic chamber can record frequencies up to 110 GHz.
Procurement Process and How to Initiate Inquiry
To do efficient sourcing, you need to know how things work from the first technical question to shipping and order completion.
Defining Technical Requirements
First, make a list of all the system-level requirements, such as frequency coverage, gain goals, polarization type, mounting limitations, and operating conditions in the environment. Include interaction needs like the type of connectors and the lengths of the cables that need to be assembled. Make it clear if business, industrial, or military-grade compliance is needed. This will affect the choice of materials and the way they are tested.

Vendor Evaluation and RFQ Preparation
When you send out a request for quote, be sure to include detailed technical needs along with estimated quantities and delivery dates. Not just theoretical forecasts, but also example datasheets with measured VSWR, radiation patterns, and axial ratio data should be asked for. Find out if the product can be customized, if there is engineering support, and how long it takes to get a prototype. If you know the MOQ levels ahead of time, you can avoid delays when going from development quantities to production volumes.
Interpreting Datasheets and Test Reports
Important parts of the inspection process include checking the VSWR across the whole bandwidth with a vector network analyzer, measuring the axial ratio with a rotating source in anechoic chambers, and making sure there are no deep nulls within the intended field-of-view angles. Automated Optical Inspection reports confirm the accuracy of the etch, especially at high-frequency feed points where errors of a few microns hurt performance. Checking the homogeneity of the dielectric constant stops phase errors that ruin the symmetry of the pattern.
Order Placement and Quality Assurance
Set clear acceptance criteria that are linked to the requirements in the document. Before committing to production numbers for unique designs, full electromagnetic characterization should be part of the prototype validation process. Our ISO 9001:2015 certification makes sure that quality control is documented at every stage of production, and test results are sent with every shipment. Your quality control systems are supported by RoHS compliance certificates and material tracking documents.
Logistics and Delivery Coordination
For global shipments, export compliance needs to be coordinated, especially for defense-related uses that are regulated by ITAR or EAR. The packaging has to meet carrier standards and protect fragile PCB boards while in transit. Advanced Microwave Technologies handles foreign logistics with established freight partnerships that make sure supplies are made on time and in accordance with regulations. Make sure everyone knows what to expect from lead times and plans for custom engineering cycles in case requirements change during the development process.
Conclusion
When choosing the right Planar Spiral Antenna, you have to weigh the scientific performance against the facts of buying. Things like frequency coverage, polarization quality, and environmental resilience have to be weighed against budgets, delivery dates, and the need for customization. Procurement engineers find solutions that improve system performance while lowering supply chain risks by carefully checking things like VSWR characteristics, axial ratio purity, material durability, and supplier capabilities. Advanced Microwave Technologies has been making products for over 20 years and has ISO-certified quality systems and full engineering support. This makes us your ideal partner for mission-critical RF components in the defense, aerospace, satellite, and telecommunications industries.
FAQ
1. What determines the lowest operating frequency of a spiral antenna?
The low-frequency cutoff is set by the outer diameter, since the circumference needs to be close to the wavelength for radiation to work well. Increasing the circular size makes the coverage go down, but it changes the form factor limits in uses with limited room for a Planar Spiral Antenna.
2. Can spiral antennas handle high-power transmission?
Standard designs work well for receiving signals or sending low-power signals because the trace lengths are very narrow near the feed points and the balun's temperature limits. For high-power microwave uses, we offer custom engineering services that include special substrates and unique balun designs.
3. How does cavity backing affect performance?
Radar-absorbent material in the cavity covering changes two-way radiation into one-way output, which improves the front-to-back ratio. This usually lowers efficiency by 3 dB because rear radiation is absorbed instead of sent out, but this is a trade-off that can be accepted when coverage around the whole hemisphere isn't needed.
4. Why is circular polarization important in satellite communications?
Circular polarization reduces signal loss caused by Faraday rotation through the ionosphere and gets rid of polarization mismatch losses when terminal orientation changes, which can happen on mobile platforms or when satellites are tilting during attitude movements.
Partner with ADM for Your Planar Spiral Antenna Needs
Advanced Microwave Technologies Co., Ltd. is ready to help you buy an antenna by offering custom solutions based on twenty years of experience in RF engineering. Our team makes precision-engineered parts that meet the quality standards of defense, aerospace, and telecommunications industries. They can either find catalog goods that cover 1 to 40 GHz or create unique geometries for specific frequency bands. Email our technical experts at craig@admicrowave.com to talk about the needs of your project, get full datasheets, or start making a sample. As a reliable Planar Spiral Antenna manufacturer, we offer low bulk prices, the ability to make rapid prototypes, and full integration support to make sure your system works at its best from the idea stage to launch.
References
1. Stutzman, W. L., & Thiele, G. A. (2012). Antenna Theory and Design (3rd ed.). John Wiley & Sons.
2. Balanis, C. A. (2016). Antenna Theory: Analysis and Design (4th ed.). John Wiley & Sons.
3. IEEE Standard 149-2021. IEEE Standard for Test Procedures for Antennas. Institute of Electrical and Electronics Engineers.
4. Nakano, H., Mimaki, H., & Yamauchi, J. (1988). Backfire Radiation from a Monofilar Spiral Antenna with a Cavity. IEEE Transactions on Antennas and Propagation.
5. Corzine, R. G., & Mosko, J. A. (1990). Four-Arm Spiral Antennas. Artech House Antenna Library.
6. MIL-STD-810H. (2019). Department of Defense Test Method Standard for Environmental Engineering Considerations and Laboratory Tests. U.S. Department of Defense.
