China Waveguide Couplers Wholesale: Top Suppliers 2025
Finding reliable waveguide coupler suppliers in China can be overwhelming when your satellite communication system demands precision or your defense radar requires uncompromising signal integrity. The Double-Ridged Waveguide Broadwall Directional Coupler market in 2025 presents unique challenges for procurement managers and RF engineers who need to balance high performance, cost-effectiveness, and dependable delivery schedules. This comprehensive guide reveals how to identify top Chinese suppliers who deliver exceptional quality waveguide couplers that meet international standards while offering competitive wholesale pricing for your critical microwave applications.
Understanding Double-Ridged Waveguide Broadwall Directional Coupler Technology

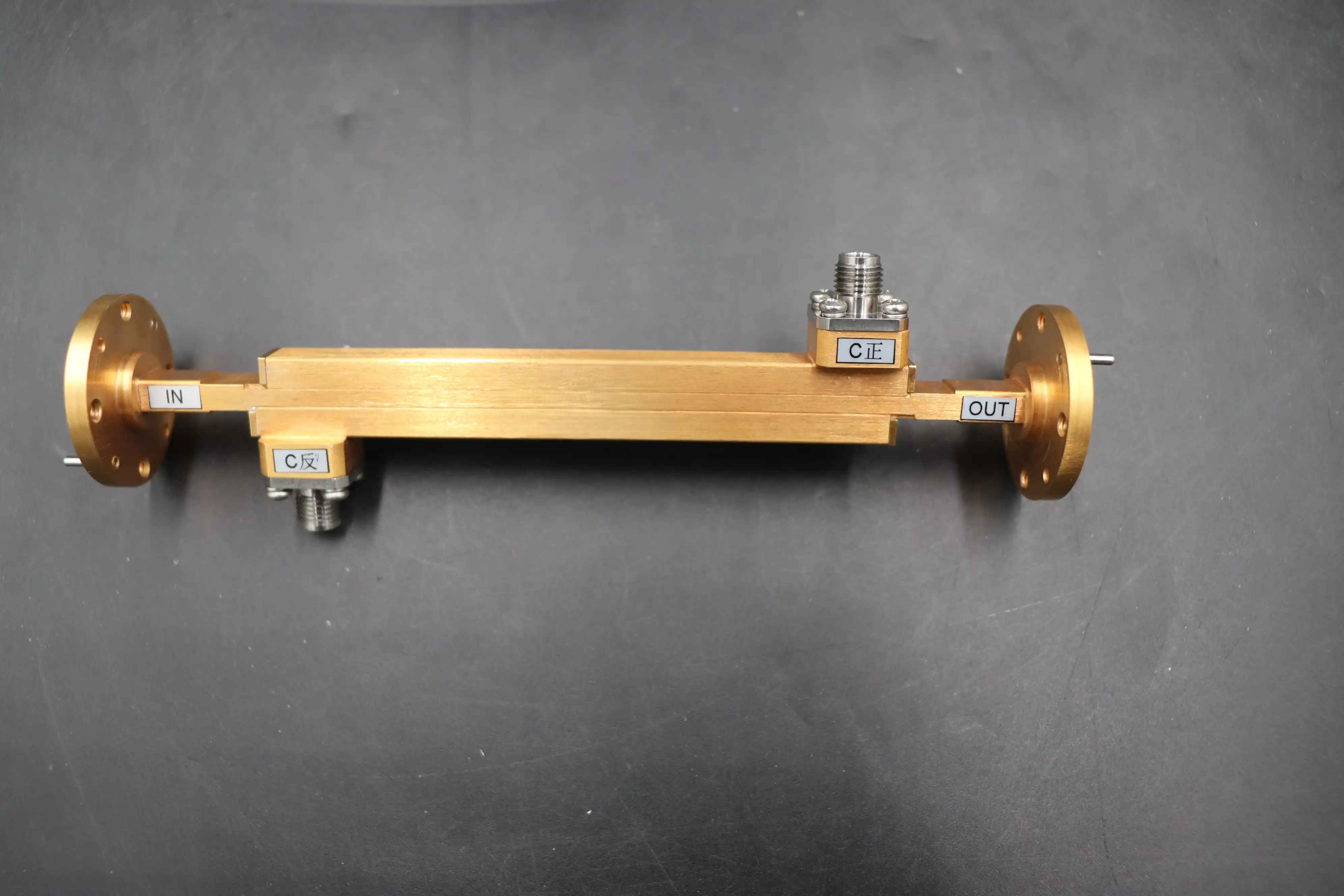

The Double-Ridged Waveguide Broadwall Directional Coupler represents a significant advancement in microwave technology, offering engineers and procurement specialists a sophisticated solution for complex signal routing challenges. This specialized component features two opposite ridge-like protrusions on its wide wall, creating a unique electromagnetic field distribution that fundamentally differs from conventional waveguide structures. When electromagnetic waves propagate through the double-ridge waveguide, they interact with these ridge structures to produce enhanced bandwidth characteristics and improved coupling efficiency compared to standard rectangular waveguides. The technology enables precise directional transmission by coupling electromagnetic energy from one port to another through the wide wall, allowing partial signal extraction without significantly disrupting the main transmission path. The operational principle behind the Double-Ridged Waveguide Broadwall Directional Coupler involves sophisticated electromagnetic field manipulation that makes it indispensable for modern communication infrastructure. As signals enter through one port, the double-ridge structure creates controlled coupling on the broad wall surface, directing a predetermined portion of electromagnetic energy to the coupled port while maintaining the primary signal path. This directional characteristic proves essential for applications requiring power monitoring, signal sampling, or multi-channel distribution without introducing excessive insertion loss. Industries ranging from satellite ground stations to military surveillance systems depend on this technology to ensure reliable signal integrity across extended frequency ranges, particularly when operating between 1 GHz and 40 GHz where conventional couplers often struggle with performance consistency.
Key Performance Specifications of Advanced Directional Couplers
Modern Double-Ridged Waveguide Broadwall Directional Couplers deliver exceptional technical specifications that address the demanding requirements of contemporary microwave systems. The broad frequency coverage spanning 1 GHz to 40 GHz enables these components to support both legacy communication protocols and cutting-edge 5G implementations within a single platform. Insertion loss specifications typically achieve 0.5 dB or less, ensuring signal integrity remains uncompromised even in multi-stage distribution networks where cumulative losses could otherwise degrade system performance. The coupling factor versatility, available in configurations from 10 dB through 30 dB, provides system designers with precise control over power distribution ratios, enabling optimized performance for applications ranging from low-level signal sampling to high-power monitoring scenarios. High-power handling capability distinguishes premium Double-Ridged Waveguide Broadwall Directional Couplers from basic alternatives, with advanced designs supporting continuous power levels up to 1 kilowatt. This robust power tolerance makes them suitable for transmitter output monitoring, high-power test systems, and defense applications where reliability under extreme conditions cannot be compromised. The enhanced isolation characteristics, often exceeding 20 dB, minimize interference between channels in multi-signal environments, protecting sensitive receiver circuits from unwanted coupling effects. Voltage standing wave ratio (VSWR) performance typically maintains values below 1.15 across the operational bandwidth, ensuring efficient power transfer and reducing the risk of component damage from reflected energy. These combined specifications establish the Double-Ridged Waveguide Broadwall Directional Coupler as an essential building block for professional-grade microwave systems.
Critical Industries Driving Double-Ridged Waveguide Broadwall Directional Coupler Demand
Satellite communications infrastructure represents one of the most demanding applications for Double-Ridged Waveguide Broadwall Directional Couplers, where signal integrity directly impacts service quality for millions of end users. Ground station operators utilize these precision components for monitoring transponder output power, measuring signal quality metrics, and distributing signals to multiple processing chains without introducing degradation. The unique characteristics of double-ridged designs prove particularly valuable in Ka-band and higher frequency satellite links where traditional couplers struggle to maintain consistent performance across required bandwidths. As satellite operators expand capacity through higher frequency allocations and more sophisticated modulation schemes, the reliability and precision of waveguide directional couplers become increasingly critical to maintaining competitive advantage in the global communications marketplace. Defense and aerospace sectors impose extraordinary requirements on Double-Ridged Waveguide Broadwall Directional Couplers, demanding components that deliver unwavering performance under environmental extremes while meeting stringent military specifications. Radar systems for air traffic control, surveillance, and threat detection depend on these couplers for beam-forming networks, power monitoring, and signal distribution across multiple antenna elements. The ability to withstand high power levels, maintain phase stability across temperature variations, and resist electromagnetic interference makes double-ridged designs essential for mission-critical applications. Electronic warfare systems utilize these components for signal intelligence gathering and countermeasure deployment, where even minor performance deviations could compromise operational effectiveness. The rigorous qualification processes and extensive documentation requirements of defense procurement favor established suppliers with proven track records in delivering high-reliability Double-Ridged Waveguide Broadwall Directional Couplers that meet or exceed military standards.
Telecommunications Infrastructure and Research Applications
The rapid deployment of 5G networks and preparation for future 6G technologies creates expanding demand for advanced Double-Ridged Waveguide Broadwall Directional Couplers capable of supporting millimeter-wave frequencies with minimal loss. Base station manufacturers integrate these components into antenna systems, enabling efficient power distribution to massive MIMO arrays while maintaining the phase coherence necessary for beamforming operations. Rural telecommunications projects particularly benefit from the low insertion loss characteristics, maximizing coverage from limited infrastructure investments while reducing operational costs through improved system efficiency. Industrial Internet of Things deployments increasingly rely on specialized microwave links for critical data transmission, creating new markets for customized coupler solutions that balance performance requirements with cost constraints. Research institutions and universities conducting microwave and millimeter-wave investigations require versatile Double-Ridged Waveguide Broadwall Directional Couplers for experimental systems exploring next-generation communication technologies. The ability to customize coupling factors, frequency ranges, and physical configurations enables researchers to construct precise test environments for evaluating novel modulation schemes, antenna designs, and signal processing algorithms. Material science research into advanced dielectrics and conductor treatments depends on accurate power measurements and signal characterization capabilities provided by high-quality directional couplers. As academic institutions collaborate with industry partners to accelerate technology transfer from laboratory concepts to commercial products, the availability of reliable, well-characterized Double-Ridged Waveguide Broadwall Directional Couplers from reputable Chinese manufacturers facilitates rapid prototyping and system validation at competitive price points.
Evaluating Top China Double-Ridged Waveguide Broadwall Directional Coupler Suppliers
Selecting an appropriate China Double-Ridged Waveguide Broadwall Directional Coupler manufacturer requires careful evaluation of technical capabilities, quality management systems, and customer support infrastructure. Leading suppliers distinguish themselves through comprehensive in-house measurement facilities equipped for full characterization across operational frequency ranges, typically extending to 110 GHz for forward-thinking manufacturers preparing for emerging applications. The presence of anechoic chambers and near-field/far-field measurement systems indicates serious commitment to product validation and design optimization. Companies operating ISO 9001:2015 certified quality management systems demonstrate structured approaches to process control, traceability, and continuous improvement that translate directly to product reliability and consistency across production batches. Manufacturing capability assessment should examine both standard product availability and customization flexibility, as system-specific requirements often demand tailored solutions beyond catalog specifications. Premier China Double-Ridged Waveguide Broadwall Directional Coupler suppliers maintain extensive materials inventories including aluminum, stainless steel, and brass in various grades, enabling rapid prototype fabrication and production scaling. Advanced machining centers with multi-axis capabilities and precision tolerances measured in micrometers ensure dimensional accuracy critical for maintaining electrical specifications. Suppliers offering comprehensive OEM services, including custom frequency ranges, coupling factor variations, and specialized connector configurations, provide strategic advantages for original equipment manufacturers seeking differentiated solutions. The ability to support small-batch prototyping through high-volume production runs indicates operational maturity and reduces supply chain risks associated with multi-vendor strategies.
Quality Certifications and International Standards Compliance
International quality certifications provide essential validation of a China Double-Ridged Waveguide Broadwall Directional Coupler supplier's commitment to excellence and operational maturity. ISO 14001:2015 environmental management certification demonstrates responsible manufacturing practices that minimize ecological impact while ensuring regulatory compliance across global markets. This certification becomes particularly relevant for European and North American buyers subject to strict environmental regulations, as it provides assurance that supply chain partners maintain compatible sustainability standards. Companies holding ISO 45001:2018 occupational health and safety certifications signal their investment in workforce wellbeing, which correlates with lower turnover rates, enhanced institutional knowledge retention, and more consistent product quality over extended partnerships. RoHS compliance for Double-Ridged Waveguide Broadwall Directional Couplers ensures products meet European Union restrictions on hazardous substances, facilitating market access across multiple jurisdictions without requiring special exemptions or additional testing. Suppliers maintaining current certifications typically implement robust materials management systems that prevent non-conforming substances from entering production processes. Some advanced China Double-Ridged Waveguide Broadwall Directional Coupler manufacturers pursue additional certifications such as REACH registration or military specifications qualification, expanding their addressable market segments. The certification portfolio maintained by potential suppliers provides valuable insights into their strategic focus areas and capability investments, helping buyers align with partners whose quality infrastructure matches their own standards and regulatory obligations.
Customization and OEM Services for Specialized Applications
The diversity of modern microwave applications necessitates flexible customization capabilities from China Double-Ridged Waveguide Broadwall Directional Coupler wholesale suppliers. Standard catalog products rarely satisfy the precise requirements of advanced radar systems, satellite ground stations, or specialized research equipment where performance margins directly impact mission success. Leading manufacturers offer comprehensive engineering support beginning at the conceptual design phase, collaborating with customers to translate system-level requirements into optimized component specifications. This consultative approach identifies opportunities to enhance performance, reduce costs, or accelerate development timelines through alternative designs or manufacturing techniques. The ability to simulate electromagnetic performance using advanced software tools before committing to prototype fabrication saves significant time and expense while reducing technical risk in demanding applications. Customization services for Double-Ridged Waveguide Broadwall Directional Couplers typically encompass frequency range optimization, where engineers tailor the ridge geometry and cavity dimensions to achieve superior performance within customer-specified bands. Coupling factor adjustments enable precise power distribution ratios matched to specific system architectures, whether sampling small signal fractions for monitoring purposes or extracting substantial power for secondary transmission paths. Physical configuration modifications accommodate installation constraints, thermal management requirements, or integration with existing waveguide infrastructure. Material selection options balance performance characteristics against environmental conditions, budget limitations, and regulatory requirements. Suppliers offering comprehensive OEM services maintain short lead times for custom designs, often delivering prototype units within weeks rather than months, enabling rapid iteration and validation cycles critical for competitive product development schedules.
Prototyping Through Production Scaling
Professional China Double-Ridged Waveguide Broadwall Directional Coupler manufacturers understand that successful new product introductions require seamless transitions from prototype validation through volume production. Rapid prototyping capabilities allow customers to verify performance characteristics, mechanical interfaces, and system integration before committing to larger investments. Leading suppliers maintain dedicated prototype fabrication resources separate from production lines, ensuring quick-turn requests receive appropriate priority without disrupting ongoing manufacturing commitments. The ability to produce small quantities with production-equivalent processes provides confidence that performance characteristics observed during evaluation will translate reliably to volume deliveries. As programs transition from development into production phases, supplier scalability becomes paramount. Established China Double-Ridged Waveguide Broadwall Directional Coupler wholesale manufacturers demonstrate capacity planning capabilities that accommodate growth trajectories while maintaining consistent quality and delivery performance. Production control systems tracking individual unit test data ensure traceability from raw materials through final inspection, satisfying quality assurance requirements for critical applications. Suppliers investing in automation where appropriate balance productivity improvements against the flexibility required for customized products. The combination of prototype agility and production scalability provides strategic advantages for customers navigating uncertain market conditions or managing products with variable demand patterns.
Conclusion
China's waveguide coupler industry has matured significantly, with top suppliers now delivering Double-Ridged Waveguide Broadwall Directional Couplers that meet international quality standards while offering competitive wholesale pricing for satellite communications, defense, aerospace, and telecommunications applications demanding high-performance microwave components.
Cooperate with Advanced Microwave Technologies Co., Ltd.
Advanced Microwave Technologies Co., Ltd. stands ready to serve as your trusted China Double-Ridged Waveguide Broadwall Directional Coupler factory, bringing over 20 years of microwave engineering excellence to your most demanding applications. Our state-of-the-art 24-meter Microwave Darkroom and comprehensive testing capabilities up to 110 GHz ensure every High Quality Double-Ridged Waveguide Broadwall Directional Coupler leaving our facility meets rigorous performance specifications. As a premier China Double-Ridged Waveguide Broadwall Directional Coupler supplier and China Double-Ridged Waveguide Broadwall Directional Coupler manufacturer, we maintain ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certifications, demonstrating our commitment to quality, environmental responsibility, and workplace safety. Whether you need standard Double-Ridged Waveguide Broadwall Directional Coupler for sale or require customized OEM solutions, our engineering team delivers competitive Double-Ridged Waveguide Broadwall Directional Coupler price structures without compromising performance. We offer China Double-Ridged Waveguide Broadwall Directional Coupler wholesale programs with flexible minimum order quantities, rapid prototyping services, and comprehensive technical support throughout your product lifecycle. Contact craig@admicrowave.com today to discuss your specific requirements and discover how our expertise can accelerate your project success while optimizing your microwave component supply chain.
