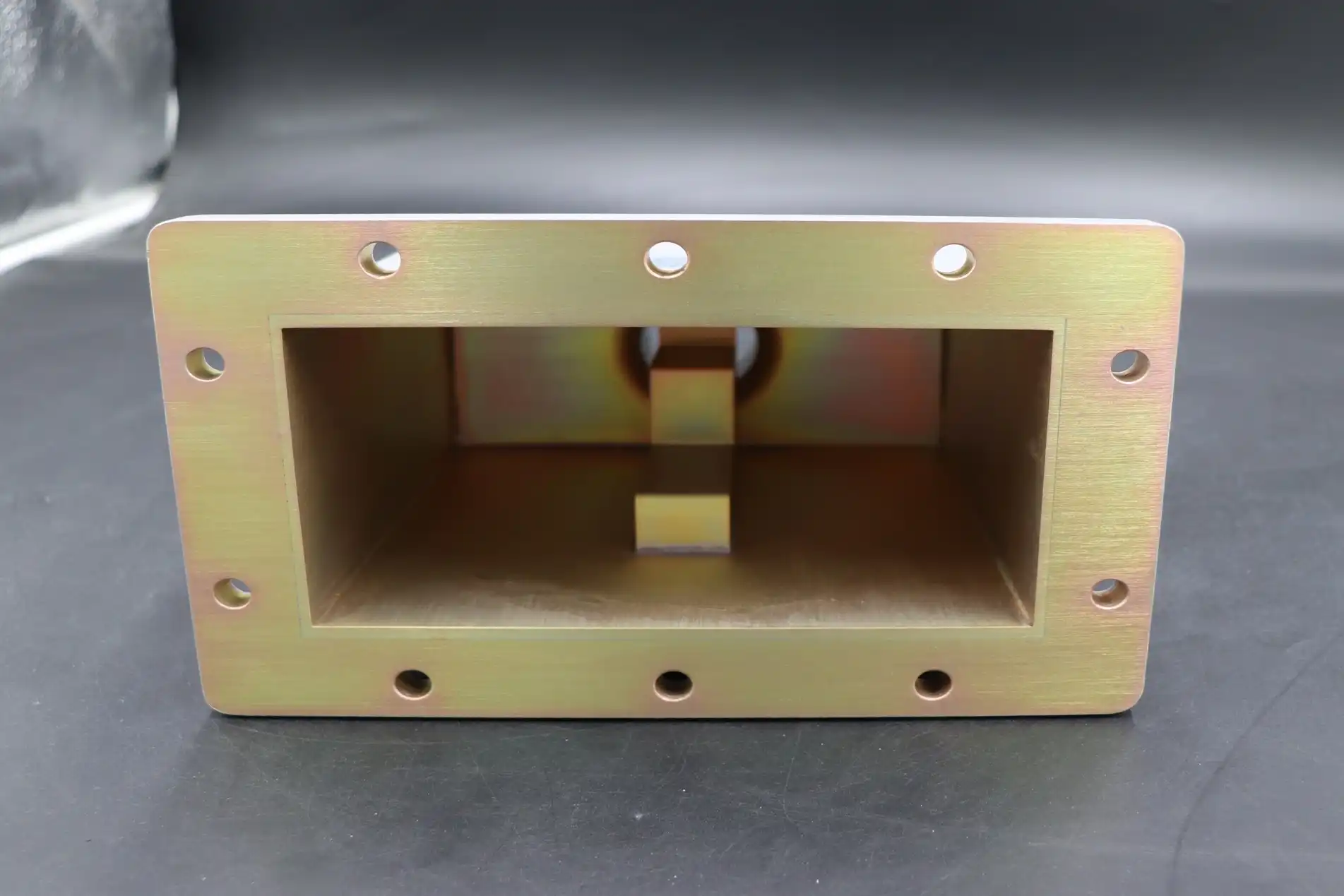

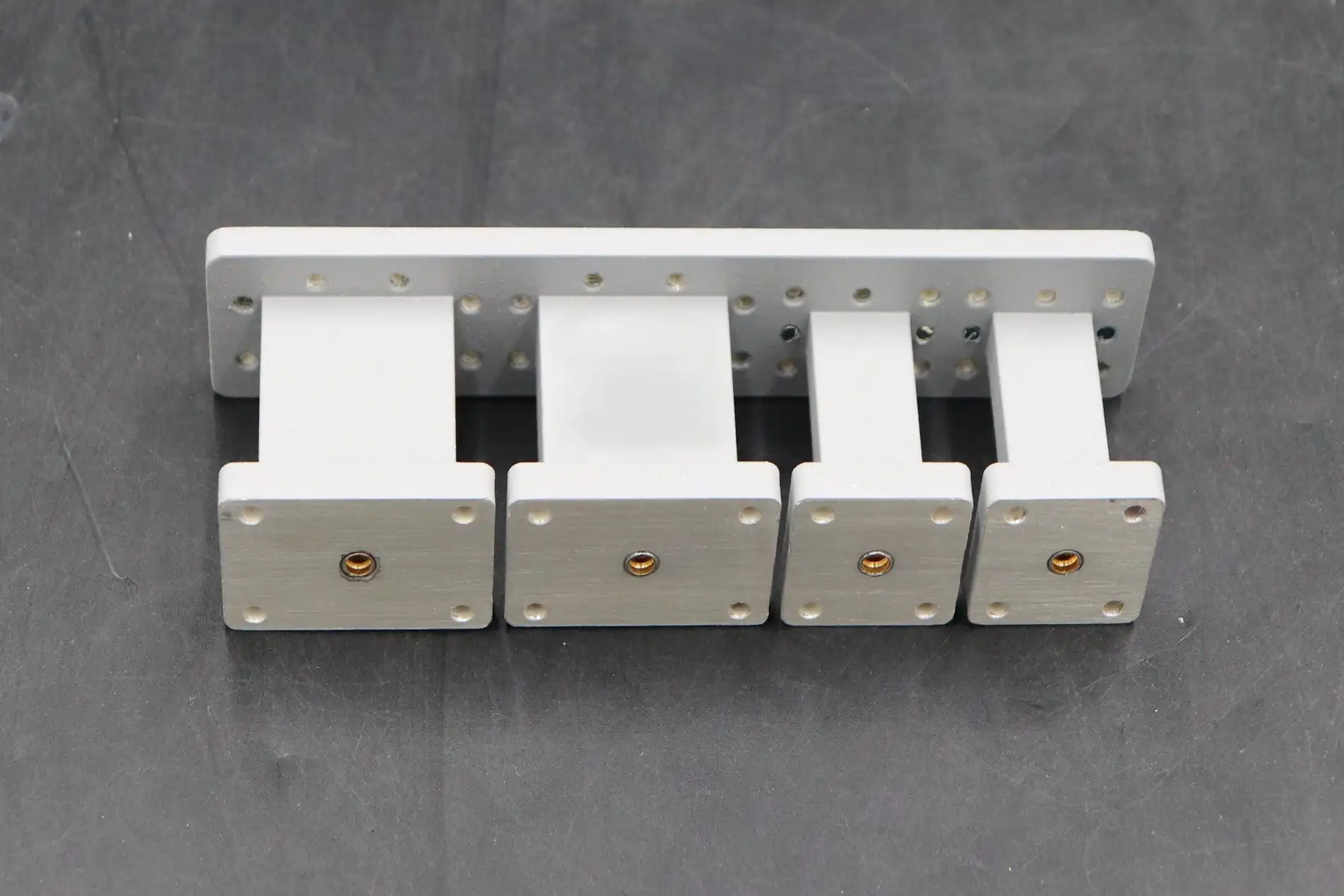

Low VSWR, High Stability: The Hallmarks of Our End Launch Waveguide to Coaxial Adapter

In today's demanding microwave applications, engineers face critical challenges when signal integrity becomes compromised due to poor VSWR performance and unstable connections. Whether you're working on satellite communications, aerospace radar systems, or high-frequency telecommunications, the frustration of dealing with signal reflections, power loss, and unreliable performance can derail entire projects. The End Launch Waveguide to Coaxial Adapter emerges as the definitive solution, delivering exceptional VSWR performance below 1.3:1 and unmatched stability across frequencies up to 110 GHz, ensuring your critical RF systems operate at peak efficiency without compromise.

Understanding VSWR Performance in End Launch Waveguide to Coaxial Adapters

• The Science Behind Low VSWR Achievement

VSWR (Voltage Standing Wave Ratio) quantifies how efficiently RF power is transmitted through the adapter, with End Launch Waveguide to Coaxial Adapter designs maintaining VSWR values typically below 1.3:1. The fundamental principle behind achieving low VSWR lies in precise impedance matching between the waveguide and coaxial transmission lines. Advanced Microwave Technologies Co., Ltd employs sophisticated electromagnetic modeling and precision manufacturing techniques to optimize the transition geometry where rectangular waveguide modes convert to coaxial TEM modes. This critical transition zone requires exact dimensional control and material selection to minimize reflections and ensure seamless power transfer. The impedance matching network within our End Launch Waveguide to Coaxial Adapter incorporates carefully designed matching elements that gradually transform the waveguide's characteristic impedance to match the 50-ohm coaxial standard. This transformation occurs over a precisely calculated distance, allowing the electromagnetic fields to adapt smoothly without creating discontinuities that would otherwise generate reflections. Our manufacturing process utilizes advanced CNC machining and precision assembly techniques to maintain tolerances within micrometers, ensuring consistent VSWR performance across production batches.

• Frequency Response and Bandwidth Optimization

Optimizing the impedance matching network, carefully designing the transition geometry, and implementing proper manufacturing techniques are primary approaches for VSWR reduction in end-launch waveguide to coaxial adapters. The frequency response characteristics of End Launch Waveguide to Coaxial Adapters depend heavily on the physical dimensions and material properties of the transition region. Advanced Microwave's designs accommodate full rectangular waveguide frequency ranges, from legacy L-band applications at 0.5 GHz through millimeter-wave frequencies reaching 110 GHz. Each frequency band requires specific design optimization to maintain low VSWR across the entire operational bandwidth. Our engineers employ full-wave electromagnetic simulation software to analyze field distributions and identify potential resonances or discontinuities that could degrade VSWR performance. The resulting designs feature smooth transitions with carefully controlled taper rates and optimized probe positioning to ensure broadband performance. This comprehensive approach enables our End Launch Waveguide to Coaxial Adapter products to maintain excellent VSWR performance even at band edges where traditional designs often struggle.

Mechanical Stability and Robust Construction Features

• Material Selection and Thermal Stability

The mechanical stability of End Launch Waveguide to Coaxial Adapter systems directly impacts their electrical performance, particularly in demanding environmental conditions. Advanced Microwave Technologies Co., Ltd selects premium materials based on their thermal expansion coefficients, mechanical strength, and electromagnetic properties. Our adapters utilize high-grade aluminum alloys and precision-machined brass components that maintain dimensional stability across temperature ranges from -55°C to +125°C. This thermal stability ensures that VSWR performance remains consistent regardless of operating environment. The coaxial center conductor assembly represents a critical component requiring exceptional mechanical precision and stability. Our End Launch Waveguide to Coaxial Adapter designs incorporate spring-loaded contacts and precision alignment features that maintain electrical continuity even under mechanical stress or thermal cycling. The waveguide flange interfaces comply with international standards while providing robust mechanical connection that prevents RF leakage and maintains proper grounding. These design features ensure long-term reliability in applications where mechanical vibration, temperature fluctuations, and handling stress could otherwise compromise performance.

• Installation and Interface Compatibility

Modern RF systems demand End Launch Waveguide to Coaxial Adapter solutions that integrate seamlessly with existing infrastructure while providing reliable, repeatable connections. Our adapters feature standardized flange configurations compatible with international waveguide specifications, ensuring proper fit and alignment with existing waveguide networks. The coaxial interface incorporates high-quality connectors such as N-type, SMA, or precision 2.92mm types, depending on frequency requirements and system specifications. Installation procedures for End Launch Waveguide to Coaxial Adapters require attention to torque specifications, gasket placement, and proper grounding techniques to achieve optimal performance. Advanced Microwave provides comprehensive installation documentation and technical support to ensure proper implementation. Our adapters incorporate alignment features and visual indicators that guide proper installation, reducing the risk of mechanical damage or electrical discontinuities that could degrade VSWR performance. The robust mechanical design withstands repeated connect-disconnect cycles while maintaining electrical specifications throughout the adapter's operational lifetime.

Applications and Industry-Specific Performance Requirements

• Satellite Communications and Ground Station Applications

Satellite communication systems represent one of the most demanding applications for End Launch Waveguide to Coaxial Adapter technology, requiring exceptional VSWR performance and long-term stability. Ground station installations must maintain signal integrity across frequency bands ranging from L-band through Ka-band and beyond, while withstanding harsh environmental conditions including temperature extremes, UV exposure, and precipitation. Our End Launch Waveguide to Coaxial Adapter designs meet these stringent requirements through specialized weatherproofing, enhanced material selection, and optimized electrical performance. The critical nature of satellite communications demands adapters with VSWR performance better than 1.25:1 to minimize signal reflections that could interfere with sensitive receiving systems or reduce transmitter efficiency. Advanced Microwave's End Launch Waveguide to Coaxial Adapter products consistently achieve VSWR specifications below 1.2:1 across operational bandwidths, ensuring maximum power transfer and minimal signal distortion. These performance characteristics directly translate to improved link budgets, enhanced data throughput, and reduced operational costs for satellite operators.

• Aerospace and Defense Radar Systems

Military and aerospace radar applications impose unique requirements on End Launch Waveguide to Coaxial Adapter performance, including operation across wide frequency ranges, resistance to electromagnetic interference, and reliability under extreme conditions. Modern phased array radar systems require hundreds or thousands of individual adapter connections, making consistent performance across large quantities essential for overall system functionality. Our manufacturing processes incorporate statistical process control and 100% electrical testing to ensure every End Launch Waveguide to Coaxial Adapter meets stringent specifications. The high-power handling capability of our adapters enables their use in transmit applications where RF power levels may exceed several kilowatts. Specialized cooling features, enhanced conductor sizing, and optimized dielectric materials ensure reliable operation under high-power conditions without performance degradation. These design features make our End Launch Waveguide to Coaxial Adapter products suitable for both high-sensitivity receiving systems and high-power transmit applications within the same radar platform.

Advanced Manufacturing and Quality Assurance

• Precision Manufacturing Techniques

The achievement of consistent low VSWR performance in End Launch Waveguide to Coaxial Adapter products requires advanced manufacturing capabilities and rigorous quality control processes. Advanced Microwave Technologies Co., Ltd operates state-of-the-art manufacturing facilities equipped with precision CNC machining centers, coordinate measuring machines, and advanced assembly equipment. Our manufacturing processes maintain dimensional tolerances within ±0.0002 inches for critical features, ensuring consistent electrical performance across production quantities. Each End Launch Waveguide to Coaxial Adapter undergoes comprehensive electrical testing using calibrated vector network analyzers traceable to national standards. Our 24-meter microwave darkroom facility enables far-field antenna pattern measurements and precise characterization of adapter performance under actual operating conditions. This testing capability ensures that every adapter meets or exceeds specified VSWR performance before shipment, providing customers with documented performance data and traceability.

• Quality Management and Certification Standards

Advanced Microwave Technologies Co., Ltd maintains ISO 9001:2015 certification, demonstrating our commitment to quality management and continuous improvement in End Launch Waveguide to Coaxial Adapter manufacturing. Our quality management system encompasses all aspects of product development, manufacturing, testing, and customer support, ensuring consistent delivery of products that meet customer requirements and regulatory standards. Environmental management under ISO 14001:2015 certification ensures our manufacturing processes minimize environmental impact while maintaining product quality. The RoHS compliance of our End Launch Waveguide to Coaxial Adapter products ensures compatibility with global environmental regulations and customer requirements. Our supply chain management processes verify material compositions and maintain traceability throughout the manufacturing process. Occupational health and safety management under ISO 45001:2018 certification protects our employees while maintaining the skilled workforce necessary for precision adapter manufacturing and testing.

Conclusion

Low VSWR and high stability represent fundamental requirements for End Launch Waveguide to Coaxial Adapter success in modern RF applications. Advanced Microwave Technologies Co., Ltd delivers these critical performance characteristics through advanced design techniques, precision manufacturing, and comprehensive quality assurance processes that ensure reliable operation across demanding applications from satellite communications to aerospace radar systems.

Cooperate with Advanced Microwave Technologies Co., Ltd.

Advanced Microwave Technologies Co., Ltd stands as your trusted China End Launch Waveguide to Coaxial Adapter manufacturer and China End Launch Waveguide to Coaxial Adapter supplier with over 20 years of proven experience in microwave technology. As a leading China End Launch Waveguide to Coaxial Adapter factory, we offer comprehensive China End Launch Waveguide to Coaxial Adapter wholesale solutions backed by our state-of-the-art 24-meter microwave darkroom and advanced measurement capabilities up to 110 GHz.

Our End Launch Waveguide to Coaxial Adapter for sale inventory includes customizable designs with competitive End Launch Waveguide to Coaxial Adapter price options, ensuring you receive High Quality End Launch Waveguide to Coaxial Adapter products that meet your exact specifications. From rapid prototyping to full-scale production, our expert engineers provide comprehensive technical support including installation guidance and troubleshooting assistance. Contact us today at craig@admicrowave.com for customized solutions that optimize your RF system performance and accelerate your project success.

FAQ

Q: What VSWR performance can I expect from your End Launch Waveguide to Coaxial Adapters?

A: Our adapters typically achieve VSWR below 1.3:1, with many models performing better than 1.25:1 across their full frequency range.

Q: What frequency ranges do your End Launch Waveguide to Coaxial Adapters cover?

A: We manufacture adapters covering 0.5-110 GHz, supporting everything from legacy systems to modern 5G and 6G applications.

Q: Do you offer customization for specific waveguide sizes and connector types?

A: Yes, we provide fully customizable designs including various waveguide sizes, flange types, and coaxial connector configurations.

Q: What quality certifications do your End Launch Waveguide to Coaxial Adapters maintain?

A: All our products are ISO 9001:2015 certified and RoHS compliant, ensuring quality and environmental compliance.

References

1. Pozar, David M. "Microwave Engineering, 4th Edition" - Comprehensive analysis of waveguide to coaxial transitions and VSWR optimization techniques

2. Collin, Robert E. "Foundations for Microwave Engineering, 2nd Edition" - Fundamental principles of impedance matching in waveguide-to-coaxial adapters

3. IEEE Standard 1785-2014 "IEEE Standard for Rectangular Metallic Waveguides and Their Interfaces for Frequencies of 110 GHz and Above" - Technical specifications for high-frequency waveguide adapters

4. Balanis, Constantine A. "Advanced Engineering Electromagnetics, 2nd Edition" - Electromagnetic field analysis and design principles for RF transition components
