MMDS Transmitting Antenna

The MMDS Transmitting Antenna is a core transmitting device specially designed for multi-channel microwave distribution systems (MMDS), mainly used for long-distance and large-area wireless coverage of television signals, data signals, etc. through microwave frequency bands. This product is widely used in scenarios such as radio and television coverage, communication access in rural and remote areas, and wireless data transmission in enterprise parks. It features a wide coverage area, strong signal stability, and flexible deployment, and is a key hardware facility for achieving efficient wireless signal transmission.
Send Inquiry
Product Description

MMDS Transmitting Antenna Introduction

The MMDS Transmitting Antenna is specifically engineered to provide efficient, stable, and high-frequency signal transmission for the Multi-channel Multipoint Distribution Service (MMDS). Designed to meet the demanding requirements of modern telecommunications, these antennas ensure minimal transmission loss, enabling clear and reliable communication over long distances. With high gain and a focus on signal strength, the MMDS antenna maximizes coverage and performance, making it ideal for applications in dense urban areas or remote locations.

Additionally, the antenna boasts robust environmental durability, making it suitable for deployment in challenging outdoor conditions. Whether used in the telecommunications sector, aerospace, or other industries, the product delivers unparalleled performance and flexibility, ensuring optimized signal quality and system reliability. This combination of advanced design and practical features makes it a crucial component for a wide range of high-performance wireless communication applications

MMDS Transmitting Antenna (1)

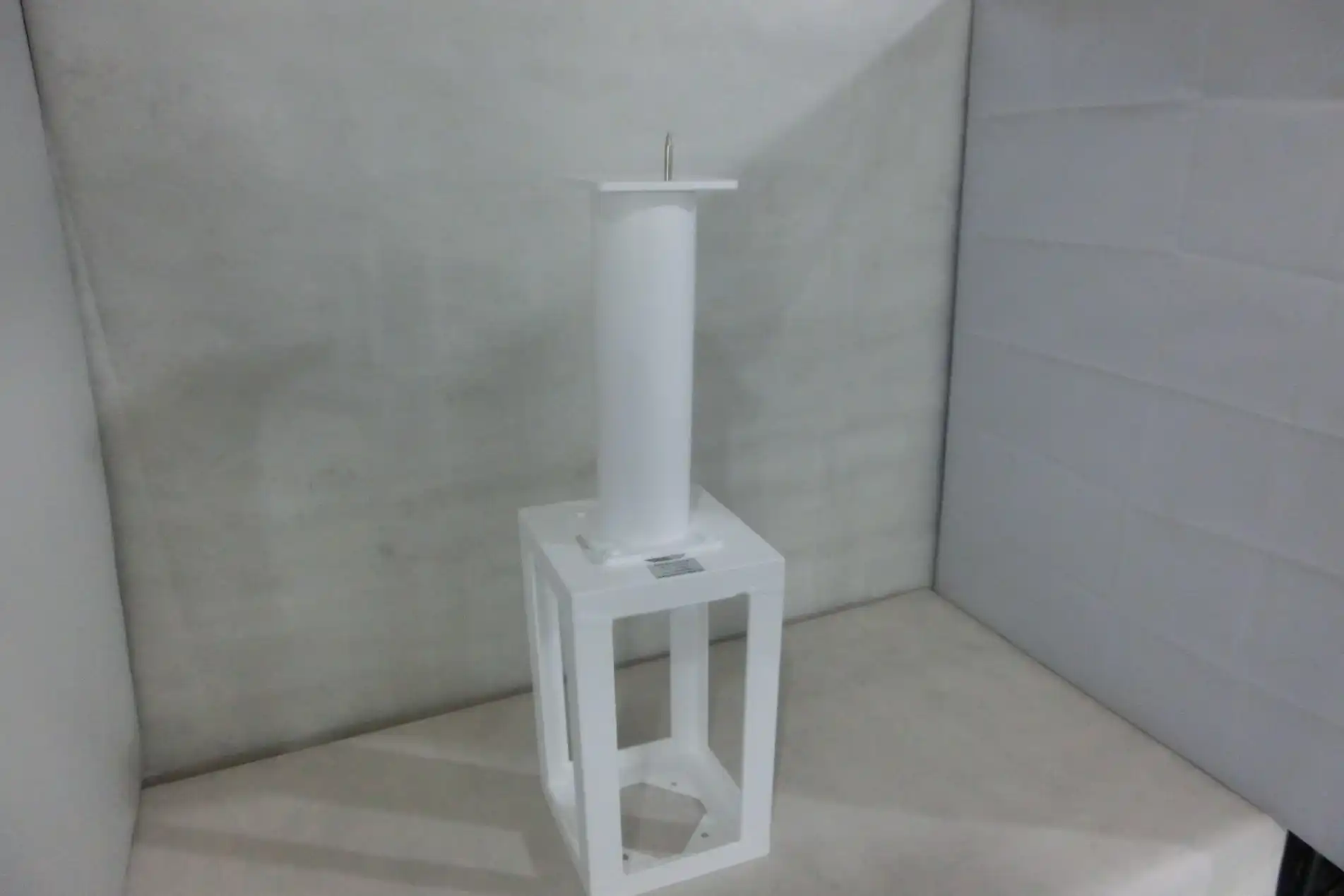

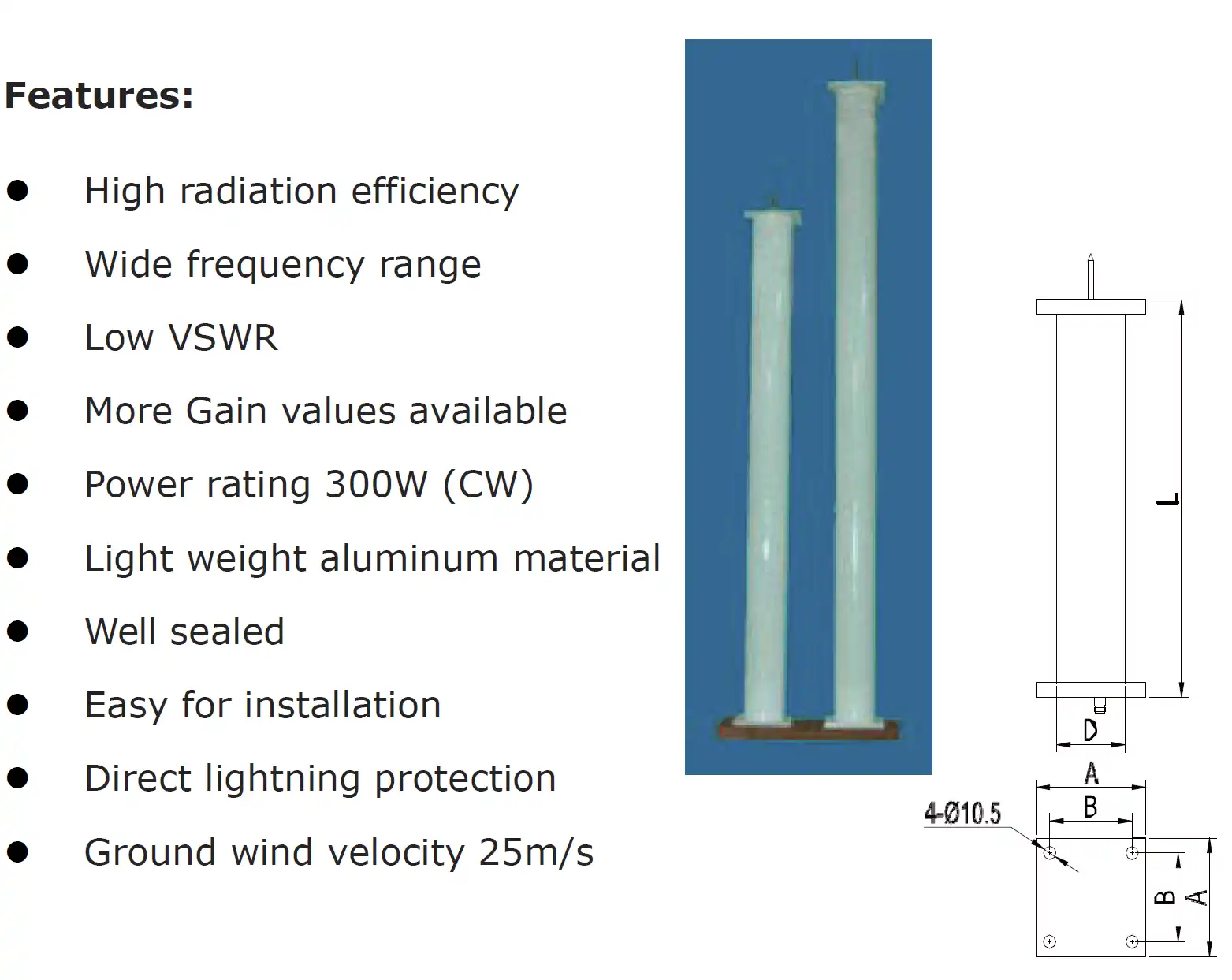

MMDS Transmitting Antenna (2)


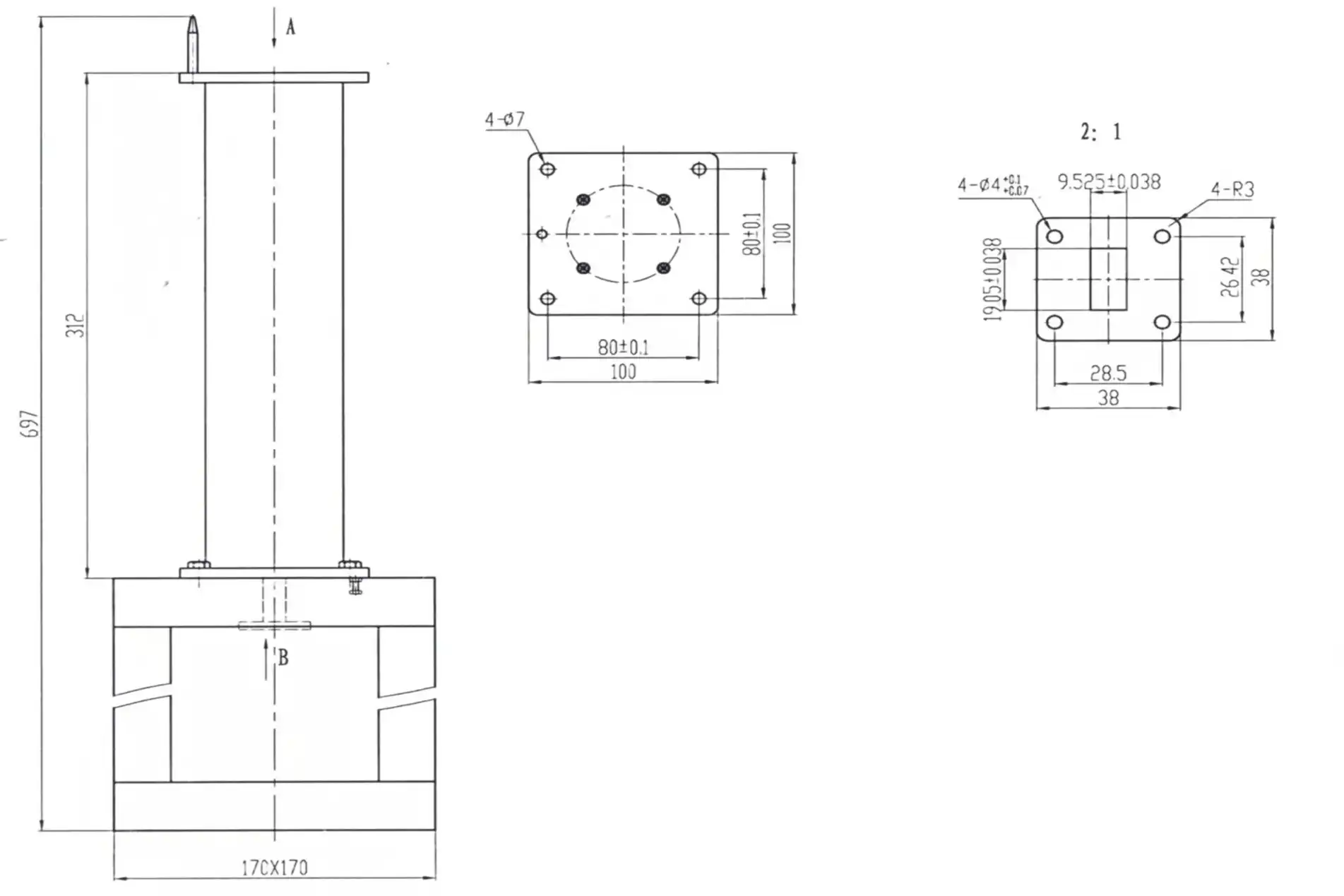

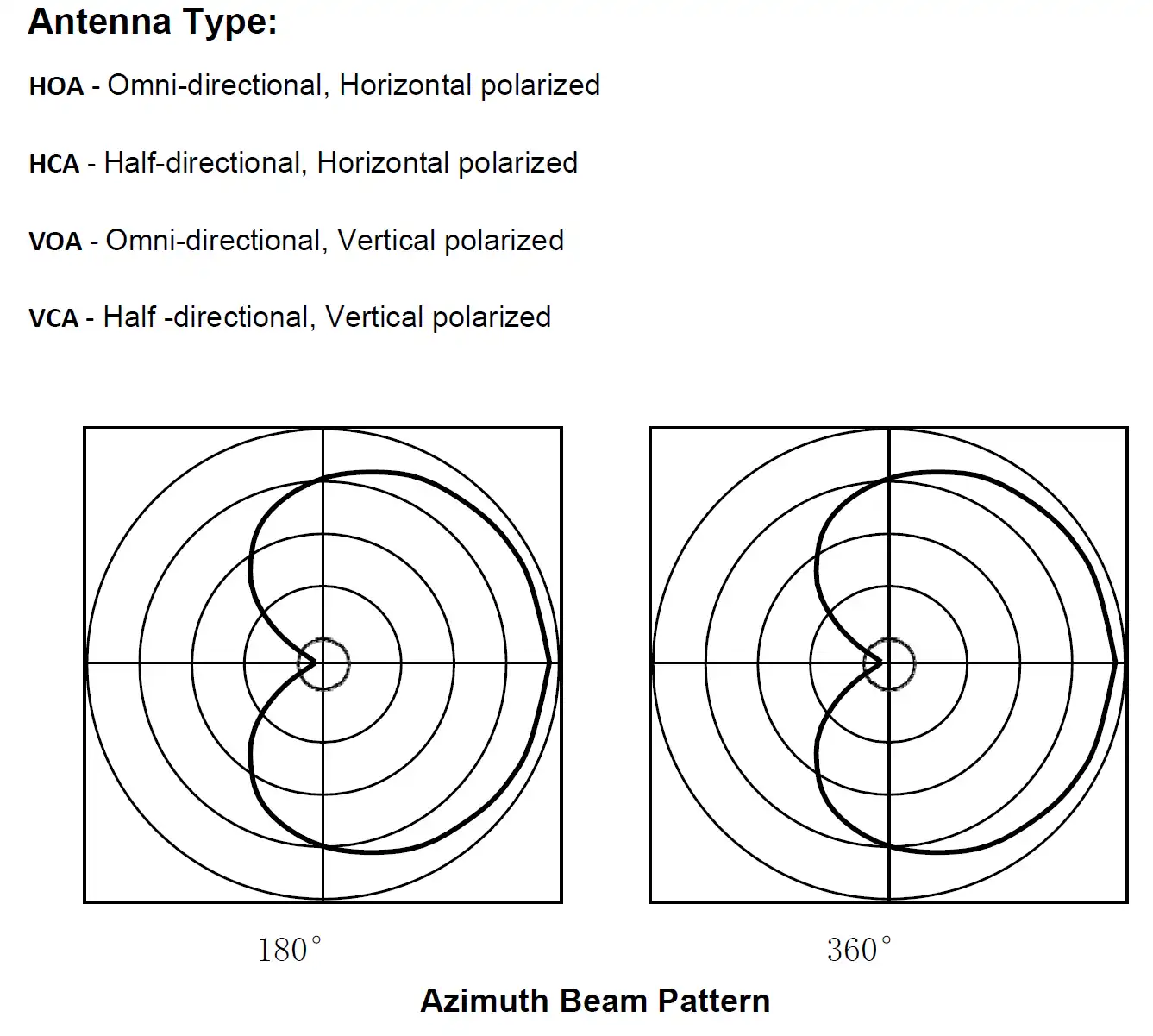

Product Specifications

Model No

Freq Range (GHz)

VSWR(Max)

Gain (dB)
Polarization

Beamwidth (Azimuth)

Beamwidth (Elevation )

Dimensions (D*H) (mm)

Dimensions (A*B) (mm)

Power Handling (W)
Connector
ADM-2527HOA10
2.5-2.7
1.5
10
Horizontal
360°
6°
130*1000
180*152
300
N-F
ADM-2527HOA12
2.5-2.7
1.5
12
Horizontal
360°
5°
130*1300
180*152
300
N-F
ADM-2527HOA16
2.5-2.7
1.5
13
Horizontal
360°
4°
130*1600
180*152
300
N-F
ADM-2527VOA10
2.5-2.7
1.5
10
Vertical
360°
6°
170*1000
220*180
300
N-F
ADM-2527VOA12
2.5-2.7
1.5
12
Vertical
360°
5°
170*1300
220*180
300
N-F
ADM-2527VOA16
2.5-2.7
1.5
13
Vertical
360°
4°
170*1600
220*180
300
N-F
ADM-2527HCA10
2.5-2.7
1.5
13
Horizontal
180°
6°
130*1000
180*152
300
N-F
ADM-2527HCA12
2.5-2.7
1.5
15
Horizontal
180°
5°
130*1300
180*152
300
N-F
ADM-2527HCA16
2.5-2.7
1.5
16
Horizontal
180°
4°
130*1600
180*152
300
N-F
ADM-2527VCA10
2.5-2.7
1.5
13
Vertical
180°
6°
170*1000
220*180
300
N-F
ADM-2527VCA12
2.5-2.7
1.5
15
Vertical
180°
5°
170*1300
220*180
300
N-F
ADM-2527VCA16
2.5-2.7
1.5
16
Vertical
180°
4°
170*1600
220*180
300
N-F

MMDS Transmitting Antenna Benefits

  • Superior Signal Transmission: The MMDS Transmitting Antenna is designed to ensure minimal signal loss, maximizing efficiency for long-distance communication. This feature guarantees reliable performance and high-quality transmission, even in challenging environments.
  • Wide Frequency Range: Optimized for Multi-channel Multipoint Distribution Service (MMDS) applications, the antenna supports a broad spectrum of frequencies, making it versatile for various communication needs.
  • Durability: Constructed from robust materials, the antenna is built to withstand harsh environmental conditions, ensuring reliable operation in both outdoor and industrial settings.
  • Flexibility: The antenna is available in both horizontal and vertical polarization, offering flexibility for different installation scenarios.
  • Customizable: Tailored solutions are available to meet specific operational and performance requirements, ensuring compatibility with unique system setups.

Technical Features

  • High gain: The gain is between 12 and 20dBi (higher for directional models), which can enhance the signal radiation intensity, extend the transmission distance, and ensure signal stability.
  • Narrow beam width: horizontal 30°-60°, vertical 10°-30°, which can concentrate signals and reduce interference to the surrounding area, suitable for long-distance transmission.
  • Low VSWR: usually ≤1.5 (high-end ≤1.2), with good impedance matching, it can reduce signal reflection loss, improve signal transmission efficiency, and avoid damage to front-end equipment caused by reflected signals. ​
  • Strong adaptability: With a protection design of IP65 or above, it can withstand the influence of harsh weather conditions. The operating range is from -40℃ to +65℃, and it can operate reliably for a long time in complex outdoor environments, reducing maintenance costs. ​
  • Easy installation: Adjustable installation bracket, supporting fine Angle adjustment in both horizontal and vertical directions. Meanwhile, the antenna interface adopts standard N-type or DIN type connectors, which are compatible with conventional feeders and simplify the installation and commissioning process.​​​​​​​

Product Applications

Our MMDS Transmitting Antennas serve a wide array of industries:

  • Telecommunications: The product plays a crucial role in supporting base stations and satellite communications, ensuring efficient and stable signal transmission for a wide range of telecommunication networks.
  • Aerospace: Integrated into navigation systems, the antenna helps ensure accurate and reliable communication, supporting the demands of both civilian and military aviation.
  • Defense: With its ability to handle high-frequency signals and provide reliable transmission, the antenna is ideal for radar systems and advanced communication technologies used in defense applications.
  • Broadcasting: The antenna enhances signal distribution in MMDS networks, ensuring seamless, high-quality broadcasting for multimedia services across various regions.

OEM Services

Advanced Microwave Technologies Co., Ltd. provides comprehensive OEM services, ensuring your specific needs are met with precision:

  • Customized designs to match unique frequency bands and dimensions.
  • Full compliance with ISO 9001 and RoHS standards.
  • Technical support, including installation and fault diagnostics.

FAQ

Q1: Can the product be customized?
Yes, we offer customization options to meet your frequency range, size, and material requirements.

Q2: What kind of technical support is available?
We provide installation guidance, product matching services, and fault diagnosis to ensure smooth operation.

Q3: What industries are best suited for this product?
Our antennas are ideal for telecommunications, aerospace, defense, and navigation applications.

Q4: Is the antenna environmentally compliant?
Absolutely, our products meet RoHS requirements, ensuring sustainability and eco-friendliness.

Contact Us

Enhance your operations with our high-performance MMDS Transmitting Antenna. Contact us today for inquiries, customization options, or technical support.
