When to Specify a Waveguide Cable Assembly Instead of Coax

September 9, 2026

Choosing between a waveguide cable assembly and a coaxial cable is one of the most consequential decisions in RF and microwave system design. At frequencies above 18 GHz, coaxial cables suffer from sharply increasing attenuation and reduced power handling, making them a liability in mission-critical environments. A waveguide cable assembly — which propagates electromagnetic energy through a hollow conducting tube in TE or TM modes — delivers dramatically lower insertion loss (often below 0.5 dB/m) and superior power capacity. For defense radar, SATCOM ground stations, and 5G mmWave infrastructure, specifying the right transmission medium directly determines system reliability and operational longevity.

Understanding Waveguide vs. Coaxial Cable Assemblies

The Core Structural Difference

Coaxial wires use TEM mode to send data between a middle conductor and an outer shield. They are small, flexible, and cheap for frequencies below 18 GHz. Waveguides, on the other hand, use a thin metal tube to move electromagnetic waves. Since there is no middle line, there are no resistive losses at higher frequencies. This difference in structure is what makes signal integrity so different between the two technologies as frequency goes up.

Where Each Technology Belongs

For sub-18 GHz systems, lab bench setups, and prototyping work that needs to be done quickly and cheaply, coaxial assemblies are still the best choice. Waveguide cable assemblies are the best choice when insertion loss, power handling, and phase stability can't be compromised. At 40 GHz, for example, a waveguide unit has about a tenth of the insertion loss of a similar coaxial line. This is a big enough difference in performance to tell if a system meets specs or fails in the field.

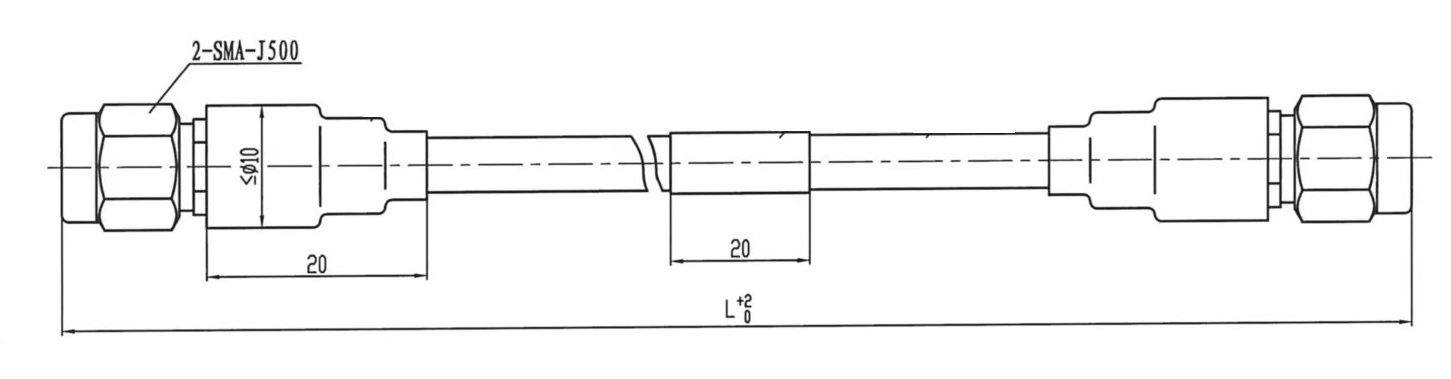

waveguide cable assembly

Key Factors to Consider When Specifying Waveguide Assemblies Instead of Coax

The choice about the specification should be based on a number of technical and operational factors. Before choosing one technology over another, procurement engineers and system planners usually look at the following:

Operating frequency: Waveguide cable assemblies are the best choice above 18 GHz. They come in regular sizes that cover X-Band (WR-90), Ka-Band (WR-28), and frequencies up to and including 110 GHz. Each waveguide type has a set cutoff frequency that limits its useful bandwidth; coaxial doesn't have a similar feature.
Power handling requirements: Hollow waveguide structures can handle kilowatts of continuous-wave power without the risks of dielectric breakdown that come with coaxial designs. This is often needed by high-power amplifier outputs in radar and SATCOM transfer lines.
Environmental resilience: Transmission lines in space, the navy, and outdoor locations are exposed to vibrations, changes in temperature, and water. A toughened flexible waveguide cable assembly with copper or brass convolutions that are silver-plated and a Neoprene or Silicone jacket can withstand millions of bends without losing its electrical integrity. When put under the same amount of mechanical stress, similar coaxial wires break much more quickly.
Phase stability: Phased array radars and Vector Network Analyzer (VNA) interconnects need phase changes that are within ±2 to 5 degrees when the antenna bends. This is built into high-end waveguide systems, but most coaxial lines at mm-wave frequencies can't.

The risk profile of the transmission line is set by these factors as a whole. When any of them gets close to the waveguide level, the total cost of using coax, which includes replacement, recalibration, and downtime, almost always goes over the higher initial cost of the waveguide option.

Types and Materials of Waveguide Cable Assemblies for Different Use Cases

Rigid vs. Flexible Assemblies

Rigid waveguides have the lowest insertion loss and work best in places where alignment is set and shaking is not present, like inside rack-mounted modules. A much more common problem is linking parts that aren't exactly lined up or that move relative to each other while they're working. Flexible waveguide cable assemblies solve this problem. Their interlocking, convoluted cores let them bend in both E-plane and H-plane directions, and twistable versions give multi-axis gimbaled antenna systems more rotational freedom.

Material Selection and Its Impact

The choice of material affects both how well it works electrically and how long it lasts. Aluminum is lighter than other materials, which is important for bases in the air and space. Copper and brass are better at conducting electricity and resisting corrosion, so they are used in both land-based and military systems. Putting silver plating on the inside is a common way to lower surface resistance at millimeter-wave frequencies. For outdoor or pressurized systems, the unit is tested with nitrogen or dry-air pressure to make sure the pneumatic seals work and keep moisture out. This is a quality step that tells the difference between precision makers and commodity sellers.

OEM Customization

A lot of companies that work with defense and satellite systems need parts that are made to exact flange standards, such as CPR, UG, UBR, or MIL-spec, and that come with inspection data that includes full-band VNA sweeps. Working with a certified manufacturer that offers documentation that is ready for OEMs, rapid prototyping, and quality records that can be tracked cuts down on qualification times and procurement risk by a large amount.

Procurement Considerations for Waveguide Cable Assemblies

It takes more than comparing catalog prices to find a reliable waveguide cable assembly supplier. Buyers in the defense, aerospace, and telecom industries should make sure that the supplier is ISO 9001 and RoHS certified, ask for sample VNA test data, and make sure that the supplier can measure the whole operating band of the assembly, ideally up to 110 GHz.

Lead times, minimum order quantities, and technical support after the sale are all important, especially for programs that have procurement schedules that are broken up into stages. When a supplier has both manufacturing and research and development (R&D) under one roof, they can usually turn around custom configurations faster and offer engineering help during the specification phase, which is very helpful when system requirements change between the prototype and production.

Waveguide Cable Assembly

Practical Applications — When Waveguide Assemblies Outperform Coaxial Alternatives

The performance gap is best shown by three real-life examples.

In SATCOM earth stations, flexible waveguide cable assemblies link high-power amplifiers to antenna feeds in Ku, K, and Ka-band transfer systems. They can handle peak transmit power levels that would destroy a coaxial assembly. They can also handle temperature changes and vibrations caused by wind for years of use outside.

In airborne and naval radar, these parts are what connect gimbaled antenna arrays to fixed RF wiring inside the body or hull. It is important for waveguide technology to keep the VSWR low (usually below 1.25:1) while the antenna moves. This is something that coaxial technologies at the same frequencies can't do.

In 5G mmWave test settings, lab engineers use flexible waveguide interconnects to link Device Under Test (DUT) ports to VNAs so that fragile component connections aren't put under too much stress. As new 6G gear comes out, its performance will raise this bar even more. Phase stability and measurement repeatability depend on it.

Conclusion

In the end, frequency, power, phase stability, and environmental demands determine whether a waveguide cable assembly or a coaxial cable is the better choice. Waveguide cable assemblies offer measurable benefits that coaxial lines can't match above 18 GHz, in high-power transmission paths, or anywhere else where mechanical stress and mission-critical stability meet. Understanding the structure and electrical differences between these two technologies and making sure they are perfectly matched to your system needs is the difference between a well-designed system and one that needs to be redone, which costs a lot of money.

FAQ

What frequency range should trigger a waveguide specification?

For systems that work above 18 GHz, engineers usually think about waveguide cable assemblies as a practical limit. Below that point, the cost and versatility of high-quality coaxial lines stay about the same. Above that point, waveguide technology's lower insertion loss makes a big difference in both efficiency and heat control.

Can flexible waveguide assemblies handle outdoor installation?

Yes. Assemblies that are specifically made for outdoor use have Silicone or Neoprene jacketing that meets MIL-DTL-3922 standards. Testing the seal under pressure with dry nitrogen shows that it is hermetic, which means that moisture can't get in and change the dielectric properties over time.

How do I verify supplier quality before placing a production order?

For a sample unit, ask for full-band VNA test reports with VSWR and insertion loss plots. Make sure the seller is ISO 9001 certified, ask if the flange meets the standards you need, and make sure they can measure the product at the frequency you need it to work at.

What is a minimum bend radius, and why does it matter?

The WR size tells us what the minimum bend radius (MBR) is for each flexible waveguide cable assembly. That number is around 65 mm for a WR-75 unit. When you bend it more than the MBR, you damage the interlocked convolutions and create VSWR spikes that permanently damage the signal integrity.
