What are the different types of WG Adapters and their unique functions?

Waveguide (WG) adapters are essential components in microwave and RF applications, serving as critical interfaces between different transmission line technologies. These specialized devices enable seamless transition between waveguide structures and other transmission media such as coaxial lines or microstrip configurations. With numerous types available for various applications, WG adapters address specific operational requirements across different frequency bands, power levels, and installation scenarios, offering engineers flexible solutions for complex RF system designs.

Types of WG Adapters Based on Transition Configuration

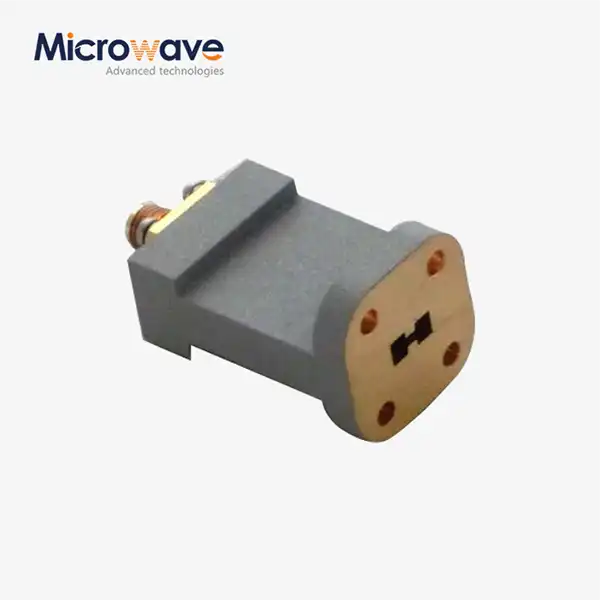

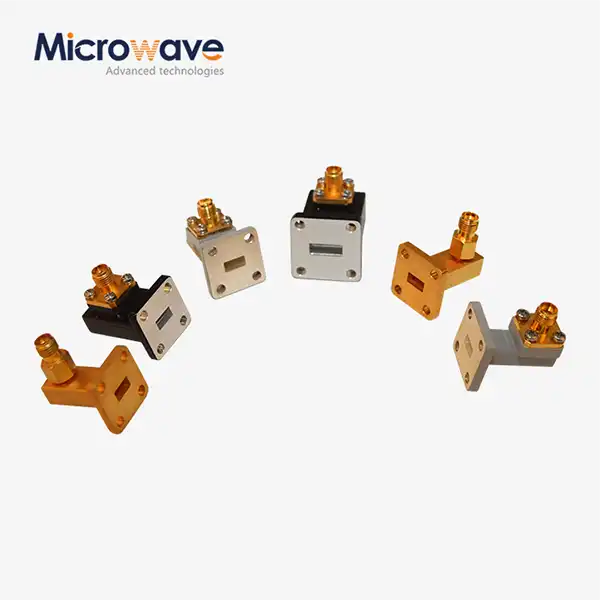

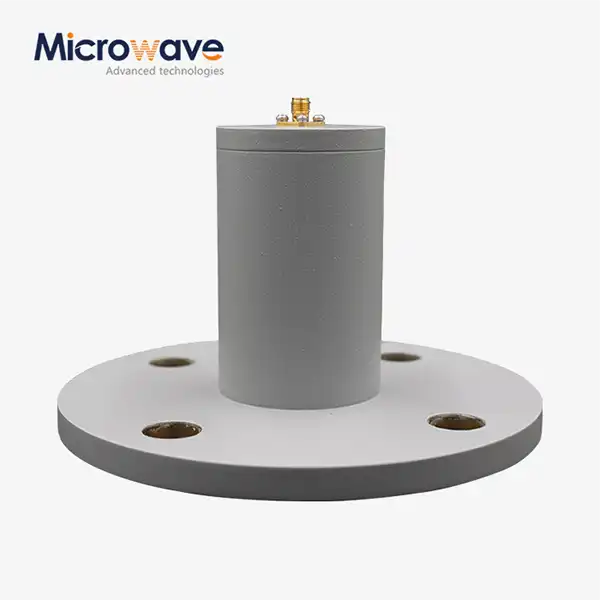

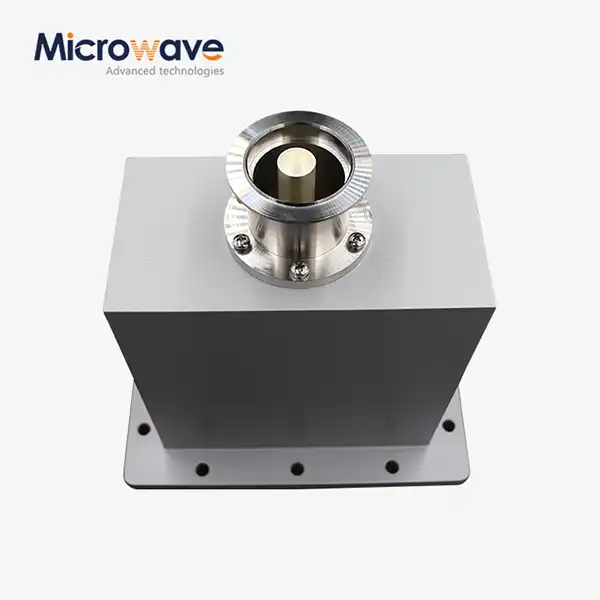

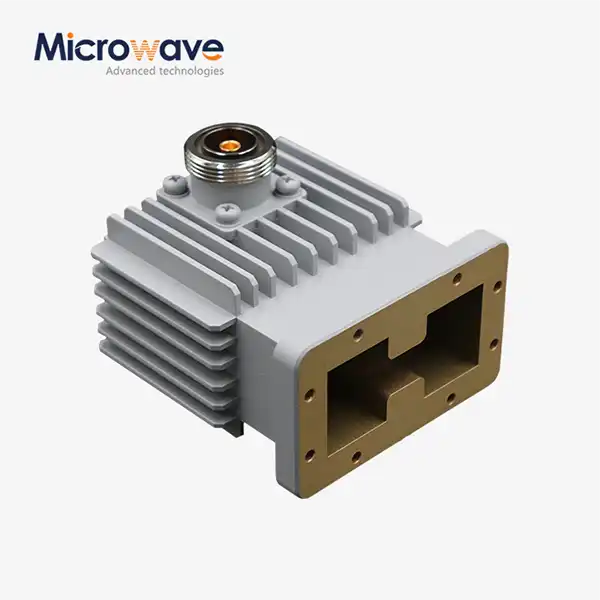

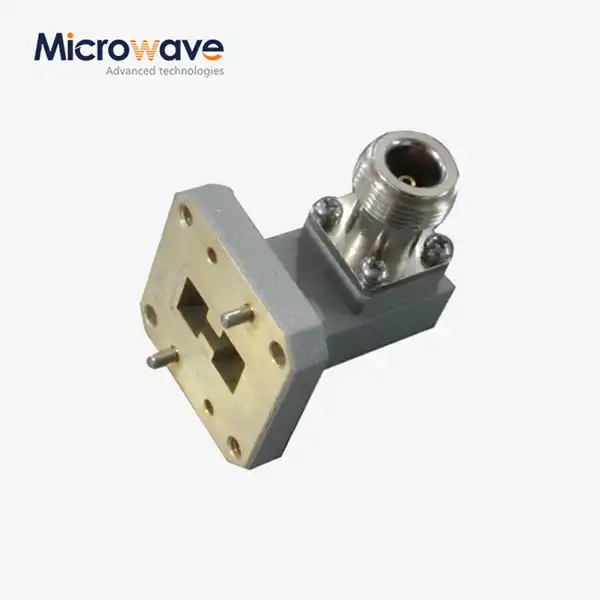

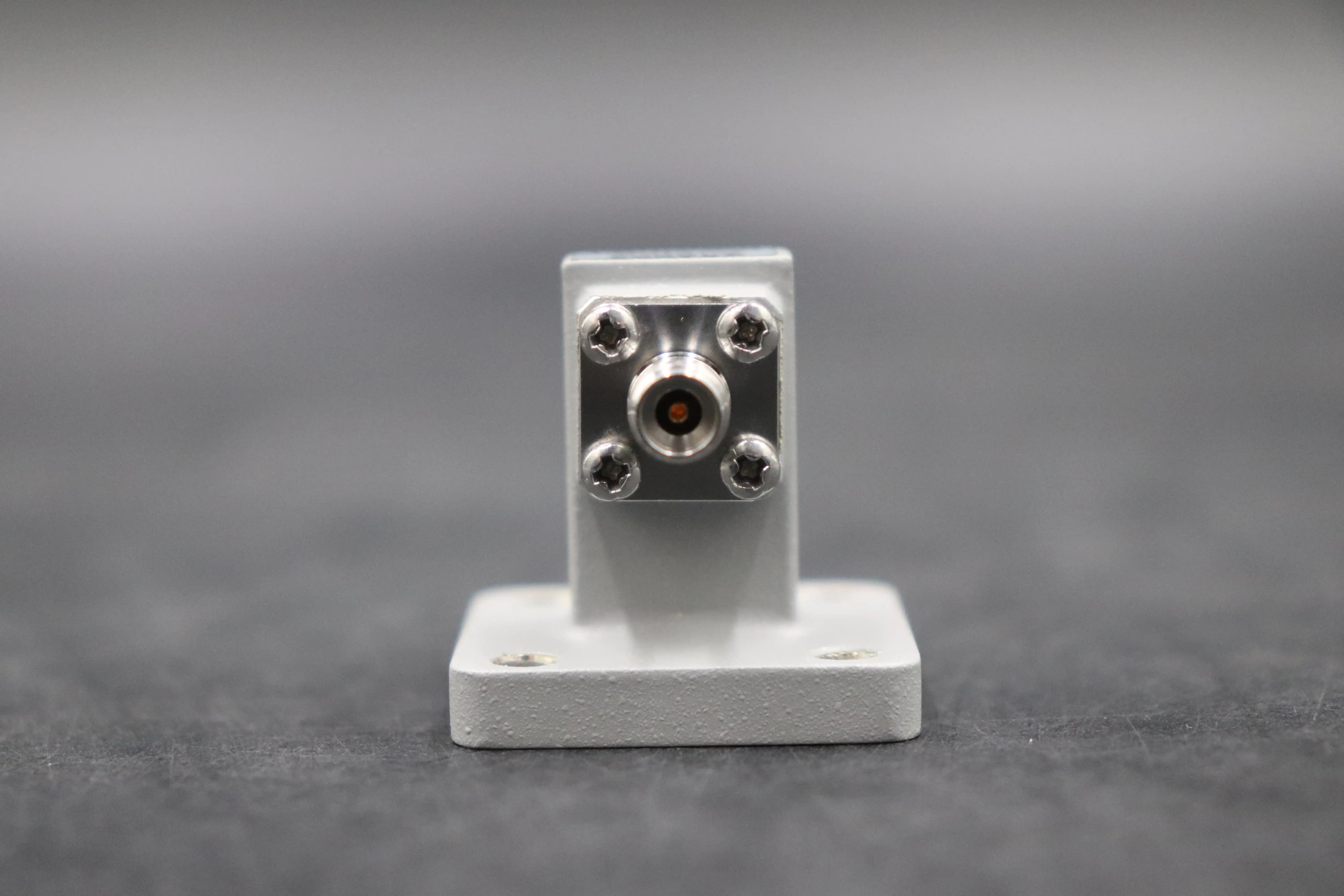

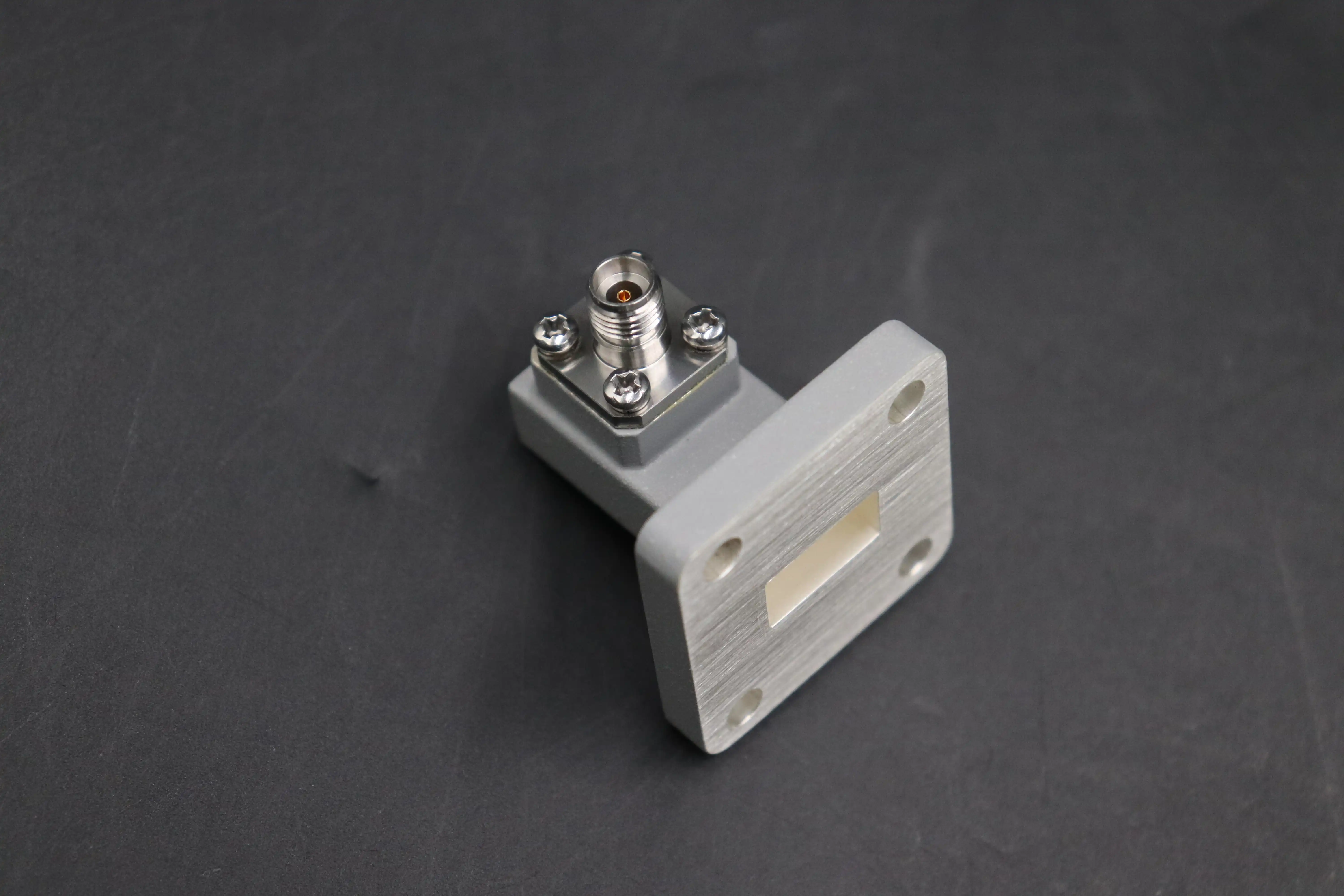

• Waveguide-to-Coaxial Adapters

Waveguide-to-coaxial adapters represent one of the most common and versatile types of WG adapters, facilitating the transition between rectangular waveguides and coaxial transmission lines. The WG Adapter produced by Advanced Microwave Technologies Co., Ltd. stands out in this category with its ultra-wide frequency range, spanning from low frequencies to millimeter waves. This enables it to ensure stable signal transmission across a wide variety of scenarios, making it suitable for applications ranging from satellite communications to radar systems. These adapters typically feature standard coaxial connectors such as N-type, SMA, 2.92mm (K), and 2.4mm (V) interfaces, allowing for seamless integration with existing RF infrastructure. The technical excellence of ADM's WG adapters is evident in their remarkably low insertion loss, often reaching as low as 0.1dB or even lower, and a low Voltage Standing Wave Ratio (VSWR), typically ranging from 1.1 to 1.5. These characteristics guarantee high-quality signal transfer, minimizing signal degradation during transmission even in the most demanding applications. Various models like the ADM-100WCAST1 operating in the 10-11GHz range exemplify this performance, offering exceptional VSWR values of 1.15 and insertion loss of only 0.15 dB, ensuring engineers can rely on these components for critical signal path design.

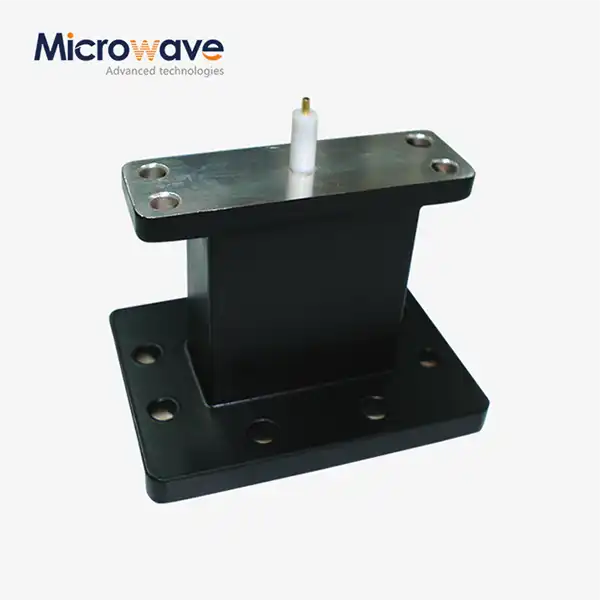

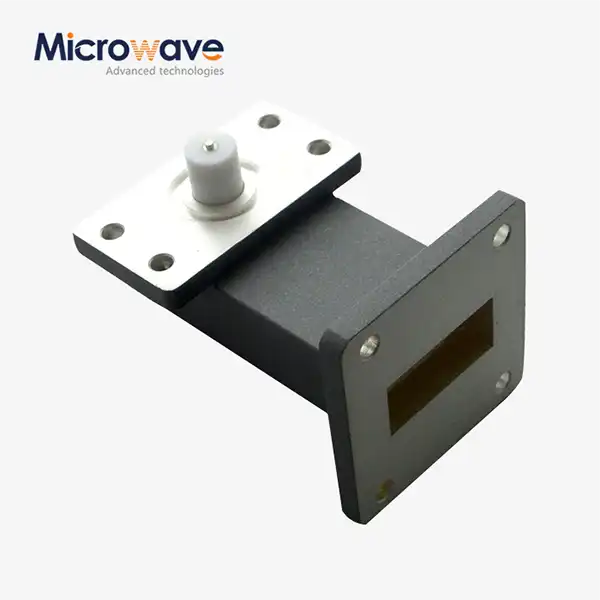

• Waveguide-to-Microstrip Adapters

Waveguide-to-microstrip adapters provide the essential interface between rectangular waveguides and planar microstrip transmission lines commonly found in modern RF circuits and modules. These sophisticated adapters feature a precisely engineered transition that maintains impedance matching across the interface, minimizing reflections and ensuring optimal power transfer between the differing transmission media. Advanced Microwave Technologies has developed these adapters with particular attention to wideband performance, covering key frequency bands from S-band (2-4GHz) through Ka-band (26.5-40GHz) and beyond. This extensive frequency coverage makes them ideal for applications in advanced radar systems and emerging 5G communication networks where signal integrity across broad bandwidths is paramount. The company's waveguide-to-microstrip adapters incorporate high-quality materials like copper with silver plating for the internal surfaces, delivering superior conductivity while the exterior features anticorrosion grey paint for environmental protection. These material choices support the adapter's high-power capacity, allowing it to handle signal powers ranging from watts to kilowatts or more, making these components suitable for high-power microwave applications while maintaining compact dimensions for installation in space-constrained modern electronic systems.

• Waveguide-to-Waveguide Adapters

Waveguide-to-waveguide adapters facilitate connections between waveguides of different sizes, shapes, or orientations, enabling system designers to integrate components operating in different frequency bands or with different physical interfaces. These adapters come in various configurations including straight-through, right-angle, twist, and tapered designs, each serving specific functional requirements in complex RF systems. Advanced Microwave Technologies offers a comprehensive range of these adapters with structural variations including end-launch and right-angle configurations to address diverse installation scenarios. The company's waveguide-to-waveguide adapters stand out for their exceptional precision manufacturing, which is critical for maintaining the electromagnetic properties of the waveguide system. Their products feature carefully controlled dimensional tolerances to ensure optimal performance across specified frequency ranges. Like other WG Adapter variants from ADM, these components deliver impressive specifications with insertion loss as low as 0.1dB and VSWR values between 1.1 and 1.5, ensuring minimal signal degradation at the transition point. This level of performance is particularly important in sensitive applications such as satellite communication systems and high-precision radar installations where signal integrity directly impacts system performance and reliability. ADM's expertise in this area is demonstrated through their ability to manufacture these adapters covering full frequency ranges with various connector types and configurations available to meet specific customer requirements.

WG Adapter Applications in Modern RF Systems

• Military and Defense Applications

In military and defense sectors, WG Adapters play a critical role in ensuring reliable communication and detection systems. Advanced Microwave Technologies' WG Adapter solutions are extensively deployed in military radar systems where signal integrity and reliability are non-negotiable requirements. These adapters enable efficient signal transmission between transmitters, receivers, and antennas, ensuring accurate target detection and tracking in surveillance and defense radar networks. The high-quality materials used in ADM's adapters—including aluminum, brass, and stainless steel—provide the durability required for military-grade equipment that must withstand harsh operational environments. The rigorous testing procedures implemented by ADM ensure that each WG Adapter meets or exceeds military specifications for reliability and performance. In electronic warfare systems, the low insertion loss (as low as 0.1dB) and exceptional VSWR performance (typically 1.1-1.5) of these adapters become crucial, as they minimize signal degradation that could compromise operational effectiveness. The company's ability to customize adapters for specific military applications has made them a trusted supplier for defense contractors worldwide, providing specialized solutions for unique requirements such as frequency-hopping communications systems and advanced electronic countermeasure equipment. Military customers particularly value the company's model ADM-100WCAST1 for its superior performance in X-band applications, with its 10-11GHz frequency range, 1.15 VSWR, and 0.15 dB insertion loss making it ideal for modern battlefield communication systems.

• Satellite Communication Systems

The satellite communication industry relies heavily on high-performance WG Adapters to maintain signal integrity across the vast distances involved in space-based communications. Advanced Microwave Technologies has established itself as a leading provider in this field with WG Adapters specifically designed to meet the demanding requirements of satellite uplink/downlink systems. These adapters feature ultra-wide frequency range coverage from conventional bands to millimeter waves, enabling them to support various satellite communication protocols across different frequency allocations. In satellite ground stations, ADM's adapters connect waveguide antenna feeds to coaxial transmission lines, ensuring minimal signal loss at these critical junctions. The low insertion loss characteristics of these components (often below 0.1dB) translate directly to improved link budgets and enhanced communication reliability. For satellite-borne equipment, the compact design and lightweight construction of ADM's adapters make them particularly valuable, as they minimize payload weight while delivering exceptional RF performance. The company's silver-plated copper adapters with anticorrosion exterior finishes are specifically engineered to withstand the temperature extremes and vacuum conditions encountered in space applications. Satellite communication providers particularly appreciate ADM's custom design capabilities, which allow for adapters tailored to specific frequency bands and power requirements unique to their satellite constellations. The technical excellence of these adapters contributes significantly to overall system performance, enabling clearer communications, higher data throughput, and more reliable satellite services for both commercial and governmental applications.

• Commercial Telecommunications

The rapidly evolving telecommunications landscape, particularly with the global deployment of 5G networks, has created unprecedented demand for high-performance WG Adapters capable of operating efficiently at higher frequency bands. Advanced Microwave Technologies' WG Adapter portfolio addresses these requirements through specialized designs optimized for telecommunications infrastructure. In wireless communication base stations, these adapters facilitate optimal connections between radio-frequency units and antennas, supporting the high-frequency, high-bandwidth operation essential for modern telecommunications networks. The adapters' high-power handling capacity—ranging from watts to kilowatts—makes them suitable for the high-power signals required for wide-area coverage in cellular networks. Their low VSWR ensures minimal signal reflection, significantly improving the overall efficiency and effective coverage of base station communication systems. The company's standard interface options, including N-type, SMA-type, and 2.92mm-type connectors, enable telecommunications equipment manufacturers to quickly integrate these adapters into their existing product designs. For specialized 5G millimeter-wave applications, ADM offers WG Adapters with V2.4-K and V2.4-J connectors capable of supporting the extremely high frequencies used in dense urban deployments. Beyond traditional telecommunications, these adapters also find applications in emerging technologies such as fixed wireless access and private enterprise networks. The reliability and performance consistency of ADM's WG Adapters, ensured through rigorous quality control processes and comprehensive testing, make them particularly valuable in telecommunications environments where equipment is expected to operate continuously for years without maintenance, contributing to the robust performance of global communication networks.

​​​​​​​Advanced Features and Manufacturing Excellence

• Precision Engineering and Quality Control

Advanced Microwave Technologies has established itself as an industry leader in WG Adapter manufacturing through its unwavering commitment to precision engineering and stringent quality control processes. Each WG Adapter undergoes multiple inspection stages from raw materials to finished products, ensuring compliance with industry-leading standards. The company's manufacturing facilities implement tight dimensional tolerances—often at micrometer levels—essential for consistent electrical performance across production batches. This precision is particularly evident in the company's waveguide-to-coaxial adapters, where the exact positioning of the probe within the waveguide critically affects performance. ADM's quality control processes include comprehensive electrical testing for key parameters such as insertion loss, VSWR, and power handling capacity, with testing capabilities extending up to 110 GHz. This extensive testing regime ensures that every adapter leaving their production facility meets or exceeds specified performance criteria. The company's ISO:9001:2008 certification and RoHS compliance further underscore their commitment to quality and environmental responsibility. Material selection represents another area where ADM's expertise shines, with careful consideration given to electrical performance, mechanical stability, and environmental durability. Their adapters typically feature copper construction with silver plating for internal surfaces to minimize RF losses, while external surfaces receive anticorrosion treatments for long-term reliability. Models like the ADM-100WCAST1 exemplify this attention to detail, with meticulously engineered transitions that achieve impressive specifications: 1.15 VSWR and only 0.15 dB insertion loss across the 10-11GHz frequency range, representing performance levels that satisfy even the most demanding RF system requirements.

• Customization Capabilities and OEM Services

Advanced Microwave Technologies distinguishes itself in the market through its extensive customization capabilities and comprehensive OEM services for WG Adapters. Recognizing that standard products may not address all customer requirements, the company's experienced R&D team works closely with clients to develop custom adapter solutions that precisely match specific applications. These customization options extend to frequency ranges, power handling requirements, physical dimensions, and connector configurations, providing virtually unlimited flexibility for system designers. For unique applications requiring non-standard frequency bands or unconventional form factors, ADM's engineers can optimize designs using advanced simulation tools before proceeding to rapid prototyping for verification. This approach minimizes development time while ensuring optimal performance in the final product. The company's OEM services include full technical support throughout the product lifecycle, with experts available to assist in product selection, system integration, and troubleshooting. This comprehensive support ensures customers receive maximum value from their WG Adapter investments while minimizing development risks. ADM's advanced manufacturing facilities, featuring state-of-the-art CNC machining equipment and precision assembly stations, enable efficient production of both standard and custom WG Adapters. Their production capabilities can accommodate orders ranging from small prototype quantities to high-volume production runs with consistent quality and performance. Throughout the manufacturing process, each adapter undergoes rigorous testing for electrical performance, mechanical integrity, and environmental durability, ensuring every delivered product meets the exacting standards that have made Advanced Microwave Technologies a trusted supplier to industries ranging from satellite communications to defense, aerospace, and navigation systems around the world.

• Advanced Materials and Environmental Resilience

The outstanding performance and durability of Advanced Microwave Technologies' WG Adapters stem largely from their advanced materials selection and environmental resilience features. Recognizing that RF components often operate in challenging environments, ADM employs materials science expertise to develop adapters capable of maintaining consistent performance across extreme conditions. Their WG Adapters typically utilize a carefully selected combination of metals including copper for excellent electrical conductivity, with precise silver plating on internal surfaces to minimize RF losses. The external surfaces receive specialized anticorrosion treatments—often a durable grey paint finish—that protects against humidity, salt spray, and chemical exposure, ensuring long-term reliability in diverse installation settings. For applications requiring exceptional durability, alternative materials such as aluminum and stainless steel are available, offering excellent mechanical strength while maintaining appropriate electrical characteristics. The internal construction of these adapters features precision-machined components with tightly controlled tolerances, creating reliable electrical connections that maintain performance stability despite thermal cycling and mechanical stress. Advanced Microwave's commitment to environmental testing ensures their WG Adapters maintain specified performance across wide temperature ranges, typically from -55°C to +85°C, making them suitable for applications from arctic research stations to desert communications outposts. Additionally, their products undergo humidity cycling, vibration testing, and shock resistance verification to ensure field reliability in mobile and aerospace applications. The company's manufacturing processes comply with strict environmental standards, including RoHS requirements, eliminating hazardous substances while maintaining optimal RF performance. This comprehensive approach to materials selection and environmental resilience makes ADM's WG Adapters particularly valuable in mission-critical applications where reliability under adverse conditions is essential, such as satellite earth stations, remote radar installations, and maritime communication systems.

Conclusion

WG Adapters from Advanced Microwave Technologies represent the pinnacle of RF connection technology, offering unmatched performance across diverse applications. With their ultra-wide frequency coverage, minimal signal loss, and robust construction, these adapters provide reliable solutions for the most demanding RF and microwave systems. Whether for satellite communications, defense applications, or next-generation telecommunications, ADM's precision-engineered products deliver exceptional results in every deployment scenario.

Looking for customized WG Adapter solutions for your specific application? Advanced Microwave Technologies offers comprehensive OEM services with custom designs, expert technical support, and efficient production capabilities. Experience our perfect supply chain system, rich production experience, and strict quality control. Contact our professional team today at sales@admicrowave.com to discuss how our industry-leading WG Adapters can enhance your RF system performance.
