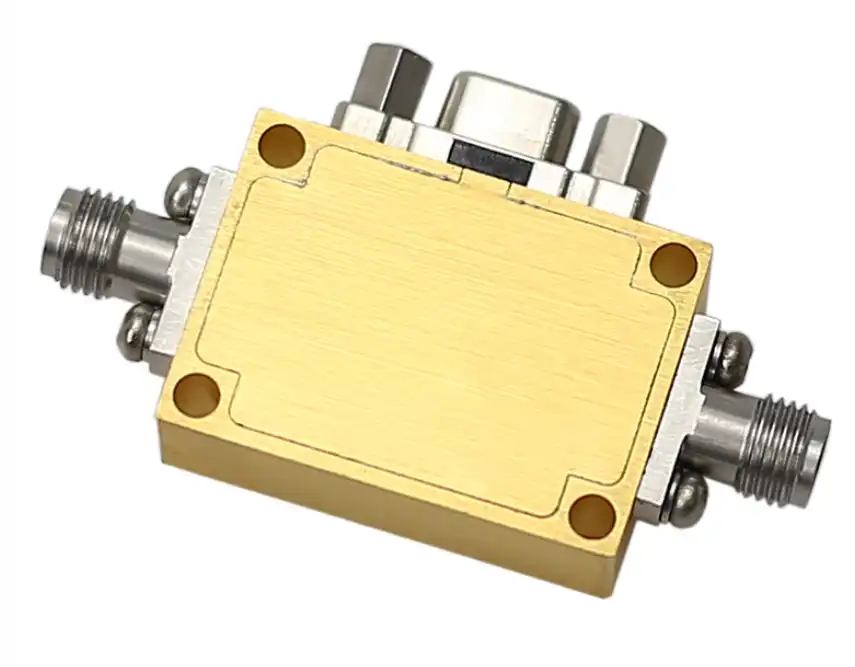

Voltage Controlled Phase Shifter Applications in Phased Arrays
When radar systems fail to detect critical targets or satellite ground stations lose signal lock during peak transmission hours, the underlying problem often traces back to inadequate phase control in antenna arrays. The Voltage Controlled Phase Shifter emerges as the essential solution for precise beam steering and signal management across phased array systems. This comprehensive guide explores how voltage controlled phase shifter technology revolutionizes applications in defense, aerospace, telecommunications, and satellite communications, delivering the phase precision that modern systems demand for optimal performance and reliability.
Understanding Voltage Controlled Phase Shifter Technology in Array Systems
The Voltage Controlled Phase Shifter represents a fundamental breakthrough in RF signal manipulation, enabling engineers to electronically adjust signal phase through precise voltage modulation. Unlike mechanical or digital alternatives, voltage controlled devices provide continuous phase adjustment across the full 360-degree spectrum, offering unparalleled flexibility for beam steering applications. The underlying principle leverages varactor diodes or similar voltage-sensitive components that modify capacitance in response to applied DC voltages, thereby altering the propagation characteristics of RF signals passing through the device. This analog control mechanism proves particularly valuable in phased array configurations where smooth, real-time beam repositioning becomes necessary for tracking moving targets or maintaining satellite links across orbital paths. In modern phased array architectures, the Voltage Controlled Phase Shifter functions as the critical component that transforms static antenna systems into dynamically steerable platforms. Each array element requires individual phase control to create coherent wavefronts that propagate in desired directions. Advanced Microwave Technologies Co., Ltd. manufactures voltage controlled phase shifter products spanning DC to 30GHz frequency ranges, incorporating customizable specifications to match precise system requirements. The company's extensive experience in microwave component design ensures that each Voltage Controlled Phase Shifter delivers linear voltage-to-phase relationships, minimal insertion loss characteristics, and robust performance across demanding operational environments including aerospace platforms and ground-based radar installations.
Core Operating Principles of Voltage Controlled Phase Shifters
The operational foundation of any Voltage Controlled Phase Shifter rests upon controlled impedance variation within transmission line structures. When control voltage varies from 0V to 20V, internal varactor diodes experience capacitance changes that directly impact signal propagation velocity through the device. This velocity modulation translates into phase shifts that maintain linear relationships with applied voltages, enabling precise electronic beam steering without mechanical movement. The physics governing this behavior involves manipulating the effective dielectric constant along the signal path, creating controlled delay that manifests as phase shift at the output port. Engineers designing phased arrays leverage this predictable voltage-phase relationship to implement sophisticated beamforming algorithms that adjust hundreds of individual phase shifters simultaneously, creating complex radiation patterns optimized for specific operational scenarios. Advanced implementations of Voltage Controlled Phase Shifter technology incorporate compensation networks that maintain consistent amplitude response across the full phase shift range. This amplitude stability proves critical in phased arrays where element-to-element gain variations degrade sidelobe performance and reduce overall directivity. Modern voltage controlled devices achieve insertion loss figures below 2dB while maintaining return loss specifications exceeding 18dB across operational bandwidths. These performance parameters directly impact array efficiency, with lower insertion loss preserving signal power and better return loss minimizing reflections that could interfere with sensitive receiver chains. The combination of precise phase control and stable amplitude response positions the Voltage Controlled Phase Shifter as the preferred solution for applications demanding both beam agility and signal integrity.
Integration Challenges and Solutions in Phased Array Architectures
Implementing Voltage Controlled Phase Shifter components within large-scale phased arrays presents engineering challenges that extend beyond individual device performance. Distribution of control voltages across potentially thousands of phase shifters requires careful consideration of biasing network design, wire routing complexity, and control signal integrity. Advanced array architectures often employ hierarchical control structures where groups of elements share common control voltages, reducing hardware complexity while maintaining adequate beam steering resolution. This approach demands Voltage Controlled Phase Shifter devices with tight manufacturing tolerances to ensure consistent phase responses across all array elements receiving identical control signals. Thermal management emerges as another critical consideration when deploying voltage controlled phase shifters in high-power applications such as radar transmitters or satellite uplink systems. Each Voltage Controlled Phase Shifter dissipates power proportional to insertion loss and RF signal levels, generating heat that must be effectively removed to maintain performance stability and component longevity. Advanced Microwave Technologies Co., Ltd. addresses these thermal challenges through optimized package designs that incorporate efficient heat sinking and materials selected for superior thermal conductivity. The company's products operate reliably across temperature ranges from -40°C to +85°C, ensuring consistent performance in environments ranging from Arctic surveillance stations to equatorial satellite ground terminals.
Phased Array Radar Applications for Voltage Controlled Phase Shifters
Military and civilian radar systems increasingly rely on phased array architectures incorporating Voltage Controlled Phase Shifter technology to achieve rapid beam steering capabilities essential for modern threat detection and tracking missions. Air traffic control radar installations demand ultra-sharp beamforming to accurately track multiple aircraft simultaneously, even during adverse weather conditions when atmospheric interference challenges signal integrity. The Voltage Controlled Phase Shifter enables radar systems to electronically reposition beams across the surveillance volume in microseconds, far exceeding the speed of mechanical scanning alternatives. This rapid repositioning proves particularly valuable in dense airspace environments where controllers must maintain awareness of dozens of aircraft moving along complex flight paths. Defense applications push Voltage Controlled Phase Shifter performance requirements to extremes, demanding exceptional dynamic range, low phase noise characteristics, and the ability to operate under jamming conditions where hostile signals attempt to overwhelm radar receivers. Military surveillance radars employ sophisticated waveform techniques that benefit from the continuous phase control offered by voltage controlled devices. Advanced Microwave Technologies Co., Ltd. provides customized phase shifter solutions tailored for defense contractors requiring specialized performance parameters, extended frequency coverage, or ruggedized packaging suitable for airborne platforms experiencing significant vibration and shock loads. The company's ISO 9001:2015 certification ensures rigorous quality control throughout the manufacturing process, delivering components that meet stringent military reliability standards.
Electronic Warfare and Countermeasure Systems
Electronic warfare platforms utilize Voltage Controlled Phase Shifter arrays to create sophisticated jamming patterns that protect friendly forces from hostile radar and communication systems. These applications demand extremely rapid phase transitions and the ability to generate complex spatial nulls that suppress enemy signals while maintaining friendly communications. The continuous phase control inherent to voltage controlled designs enables smooth pattern transitions that avoid the discontinuities associated with digital phase shifter architectures. Phased arrays equipped with voltage controlled phase shifters can implement adaptive nulling algorithms that automatically identify and suppress interference sources, maintaining operational effectiveness in contested electromagnetic environments. The Voltage Controlled Phase Shifter also enables direction finding systems that locate emitters through phase comparison techniques. By measuring phase differences across array elements receiving signals from hostile transmitters, electronic warfare systems calculate precise bearing information for targeting or avoidance purposes. Advanced Microwave Technologies Co., Ltd. develops customized phase shifter networks optimized for direction finding applications, incorporating matched phase responses and minimal phase ripple across operational bandwidths. These performance characteristics directly impact bearing accuracy, with tighter phase matching enabling more precise emitter location capabilities critical for both offensive and defensive electronic warfare missions.
Satellite Communication Ground Station Applications
Satellite ground stations serving commercial, government, and scientific missions increasingly adopt phased array antenna systems incorporating Voltage Controlled Phase Shifter technology to maintain robust links with spacecraft operating in various orbital regimes. Geostationary satellite communication terminals benefit from electronic beam steering that compensates for thermal expansion in mounting structures and enables rapid satellite switching without mechanical antenna repositioning. The Voltage Controlled Phase Shifter provides the phase agility necessary to maintain optimal pointing accuracy, ensuring maximum signal strength and data throughput during critical communication windows. Advanced Microwave Technologies Co., Ltd. supplies voltage controlled phase shifter assemblies specifically designed for satellite ground station applications, featuring low insertion loss to preserve link margins and high power handling capabilities to support uplink transmission requirements. Low earth orbit satellite constellations present unique challenges for ground station operators who must rapidly acquire and track spacecraft passing overhead in minutes-long visibility windows. Phased arrays equipped with Voltage Controlled Phase Shifter elements enable automatic tracking that maintains antenna gain peaks aligned with moving satellites throughout pass durations. This tracking capability proves essential for maximizing data transfer from remote sensing satellites, earth observation platforms, and emerging megaconstellation systems providing global broadband coverage. The continuous phase control offered by voltage controlled devices ensures smooth tracking without beam discontinuities that could disrupt communication links during critical data transfers. Ground stations supporting multiple simultaneous satellite contacts employ multiple beam capabilities enabled by advanced phased array architectures where each beam utilizes dedicated sets of voltage controlled phase shifters configured for independent satellite tracking.
Deep Space Communication and Radio Astronomy
Deep space missions communicating with probes exploring the outer solar system and beyond require ground station antennas with maximum possible gain to detect extremely weak signals traversing billions of kilometers. Large phased arrays combining hundreds or thousands of elements provide the effective aperture necessary for these demanding applications, with each element requiring precise phase control to maintain coherent signal combining across the entire array. The Voltage Controlled Phase Shifter enables the fine phase adjustments essential for compensating atmospheric propagation variations, thermal distortions in array structures, and Doppler shifts from spacecraft motion. Radio astronomy observations similarly benefit from phased array capabilities that create narrow beams for mapping celestial radio sources with high angular resolution. Voltage controlled phase shifters incorporated into these scientific instruments must deliver exceptional phase stability to maintain coherence during long observation periods, avoiding phase drift that would degrade image quality or introduce artifacts into astronomical data.
Telecommunications Infrastructure and 5G Networks
Modern telecommunications infrastructure increasingly leverages phased array antenna technology incorporating Voltage Controlled Phase Shifter components to optimize coverage patterns and capacity in cellular networks. Fifth generation wireless systems utilize massive multiple-input multiple-output architectures where base stations employ dozens or hundreds of antenna elements with individual phase control to create highly directional beams serving specific user equipment. The Voltage Controlled Phase Shifter enables dynamic beamforming that tracks mobile devices as they move through coverage areas, maintaining optimal signal quality and minimizing interference to other users sharing spectrum resources. This beam steering capability directly impacts network capacity by allowing aggressive spectrum reuse through spatial division multiple access techniques. Advanced Microwave Technologies Co., Ltd. provides voltage controlled phase shifter solutions optimized for telecommunications applications, offering compact surface mount packages suitable for integration into dense array assemblies and control voltage ranges compatible with standard base station power supplies. Rural broadband deployments benefit from phased array systems incorporating Voltage Controlled Phase Shifter technology to extend coverage reach through highly directional transmission. Fixed wireless access platforms serving underserved regions employ electronically steerable beams that overcome terrain obstacles and minimize interference in shared spectrum bands. The ability to remotely reconfigure beam patterns through voltage control enables service providers to optimize network performance without deploying technicians for mechanical antenna adjustments. Industrial Internet of Things applications similarly leverage phased array capabilities for establishing reliable wireless links to sensors and equipment distributed across manufacturing facilities, warehouses, and process plants. The precise phase control delivered by voltage controlled devices ensures consistent connectivity despite challenging RF propagation environments characterized by metallic structures and moving machinery.
Millimeter Wave and Beyond 5G Applications
The transition toward millimeter wave frequencies for enhanced mobile broadband services places increased demands on Voltage Controlled Phase Shifter performance. Operating frequencies extending to 40GHz and beyond require phase shifter designs that maintain low insertion loss despite reduced wavelengths and tighter fabrication tolerances. Advanced Microwave Technologies Co., Ltd. leverages extensive expertise in millimeter wave component design to develop voltage controlled phase shifters serving emerging 5G frequency bands and future 6G applications. The company's 24-meter microwave darkroom provides testing capabilities spanning 0.5 to 110GHz, enabling comprehensive characterization of phase shifter performance across extended frequency ranges. This measurement infrastructure ensures that products meet stringent specifications for insertion loss, return loss, and phase accuracy essential for next-generation wireless systems. Beamforming at millimeter wave frequencies demands extremely tight phase tolerances across array elements to avoid beam pointing errors and sidelobe degradation that reduce network performance. The Voltage Controlled Phase Shifter must deliver phase matching better than a few degrees across production lots to ensure consistent array performance when deploying thousands of units in commercial base station equipment. Advanced manufacturing processes including automated testing and calibration enable mass production of voltage controlled phase shifters meeting telecommunications industry requirements for cost, reliability, and performance consistency. Environmental stability proves particularly critical for outdoor installations where temperature variations could induce phase drift if not properly compensated through temperature-stable designs or active calibration systems.
Advanced Performance Optimization and Custom Solutions
Optimizing Voltage Controlled Phase Shifter performance for specific phased array applications requires careful consideration of multiple interdependent parameters including insertion loss, phase shift range, control voltage requirements, power handling capacity, and frequency response characteristics. Engineers designing radar, satellite communication, or telecommunications systems must balance these specifications against cost and complexity constraints to achieve optimal system-level performance. Advanced Microwave Technologies Co., Ltd. provides comprehensive engineering support to help customers navigate these design tradeoffs, offering customized phase shifter solutions tailored to unique application requirements. The company's design team leverages decades of experience in microwave component development to optimize voltage controlled phase shifter architectures for specific frequency bands, phase shift ranges, and operating environments. Custom phase shifter designs address specialized requirements that standard catalog products cannot accommodate, including extended temperature ranges for space applications, radiation-hardened construction for nuclear environments, or ultrahigh power handling for directed energy systems. The Voltage Controlled Phase Shifter design process begins with detailed requirements analysis to understand application constraints and performance priorities. Advanced electromagnetic simulation tools enable rapid prototype development and optimization before committing to fabrication, reducing development cycles and ensuring first-pass design success. Advanced Microwave Technologies Co., Ltd. operates state-of-the-art laboratories equipped with measurement equipment extending to 110GHz, providing comprehensive characterization capabilities for validating custom designs against specifications. This measurement infrastructure includes the company's remarkable 24-meter microwave darkroom featuring an Antenna Plane Near and Far Field Measuring Recombination Chamber that enables precise antenna pattern measurements essential for validating phased array performance.
Quality Assurance and Reliability Testing
Ensuring consistent Voltage Controlled Phase Shifter performance across production volumes requires rigorous quality control processes and comprehensive reliability testing. Advanced Microwave Technologies Co., Ltd. maintains ISO 9001:2015 certification demonstrating adherence to stringent quality management systems throughout design, manufacturing, and delivery operations. Each phase shifter undergoes extensive electrical testing to verify compliance with specifications for insertion loss, return loss, phase shift range, and control voltage response. Environmental stress screening including temperature cycling and vibration testing identifies potential reliability issues before products reach customers, ensuring long-term performance in demanding operational environments. The company's commitment to environmental stewardship reflected in ISO 14001:2015 certification extends to manufacturing processes that minimize waste and energy consumption while maintaining product quality. Reliability testing programs tailored to specific application environments provide customers with confidence in long-term Voltage Controlled Phase Shifter performance. Accelerated life testing at elevated temperatures and voltages reveals potential wear-out mechanisms and enables accurate lifetime predictions for mission planning purposes. For aerospace and defense applications requiring exceptional reliability, Advanced Microwave Technologies Co., Ltd. implements additional screening procedures and controls that exceed commercial standards. The company's ISO 45001:2018 certification demonstrates commitment to employee safety throughout manufacturing operations, contributing to consistent quality through experienced, well-trained personnel operating in optimized work environments.
Conclusion
Voltage Controlled Phase Shifter technology stands as the cornerstone enabling phased array advancement across radar, satellite communication, and telecommunications applications. The continuous phase control, wide frequency coverage, and customization capabilities offered by modern voltage controlled devices empower engineers to design sophisticated systems meeting increasingly demanding performance requirements in defense, aerospace, and commercial markets.
Cooperate with Advanced Microwave Technologies Co., Ltd.
Partner with Advanced Microwave Technologies Co., Ltd., your trusted China Voltage Controlled Phase Shifter manufacturer, China Voltage Controlled Phase Shifter supplier, and China Voltage Controlled Phase Shifter factory. We offer China Voltage Controlled Phase Shifter wholesale solutions with competitive Voltage Controlled Phase Shifter price points. Our High Quality Voltage Controlled Phase Shifter for sale incorporates over 20 years of microwave expertise, advanced testing in our 24-meter microwave darkroom, and comprehensive ISO certifications. Whether you need standard products or customized OEM solutions, our experienced engineering team provides complete technical support from prototyping through production. Contact craig@admicrowave.com today to discuss your project requirements and discover how our voltage controlled phase shifter technology can elevate your phased array system performance.
References
1. Romanofsky, Robert R. "Array Phase Shifters: Theory and Technology." NASA Glenn Research Center Technical Report, 2007.
2. Tsitsas, Nikolaos L., et al. "A New Active RF Phase Shifter Using Variable Gain, Drain Voltage Controlled PHEMTs: A 2.4-GHz ISM Implementation." IEEE Microwave and Wireless Components Letters, vol. 15, no. 6, 2005.
3. Rebeiz, Gabriel M., et al. "RF MEMS Phase Shifters: Design and Applications." IEEE Microwave Magazine, vol. 3, no. 2, 2002.
4. Ehyaie, Danial. "Novel Approaches to the Design of Phased Array Antennas." Doctoral Dissertation, University of Michigan, 2011.
5. Barker, Nathan S. and Rebeiz, Gabriel M. "Optimization of Distributed MEMS Phase Shifters." IEEE Transactions on Microwave Theory and Techniques, vol. 54, no. 1, 2006.
