Conical Dual Circular Polarization Horn Antenna for High Precision Testing
In the rapidly evolving landscape of microwave technology and satellite communications, precision testing equipment has become the cornerstone of reliable signal transmission and reception. Among the most critical components in this domain stands the Conical Dual Circular Polarization Horn Antenna, a sophisticated solution that addresses the complex demands of modern high-frequency applications. This advanced antenna design represents a significant leap forward in dual polarization technology, combining the benefits of conical horn geometry with circular polarization capabilities to deliver unparalleled performance in testing environments. The unique architecture of the Conical Dual Circular Polarization Horn Antenna enables engineers and researchers to conduct precise measurements across wide frequency ranges while maintaining exceptional signal integrity and minimal interference.
Advanced Design Architecture and Technical Specifications
Innovative Dual Polarization Technology

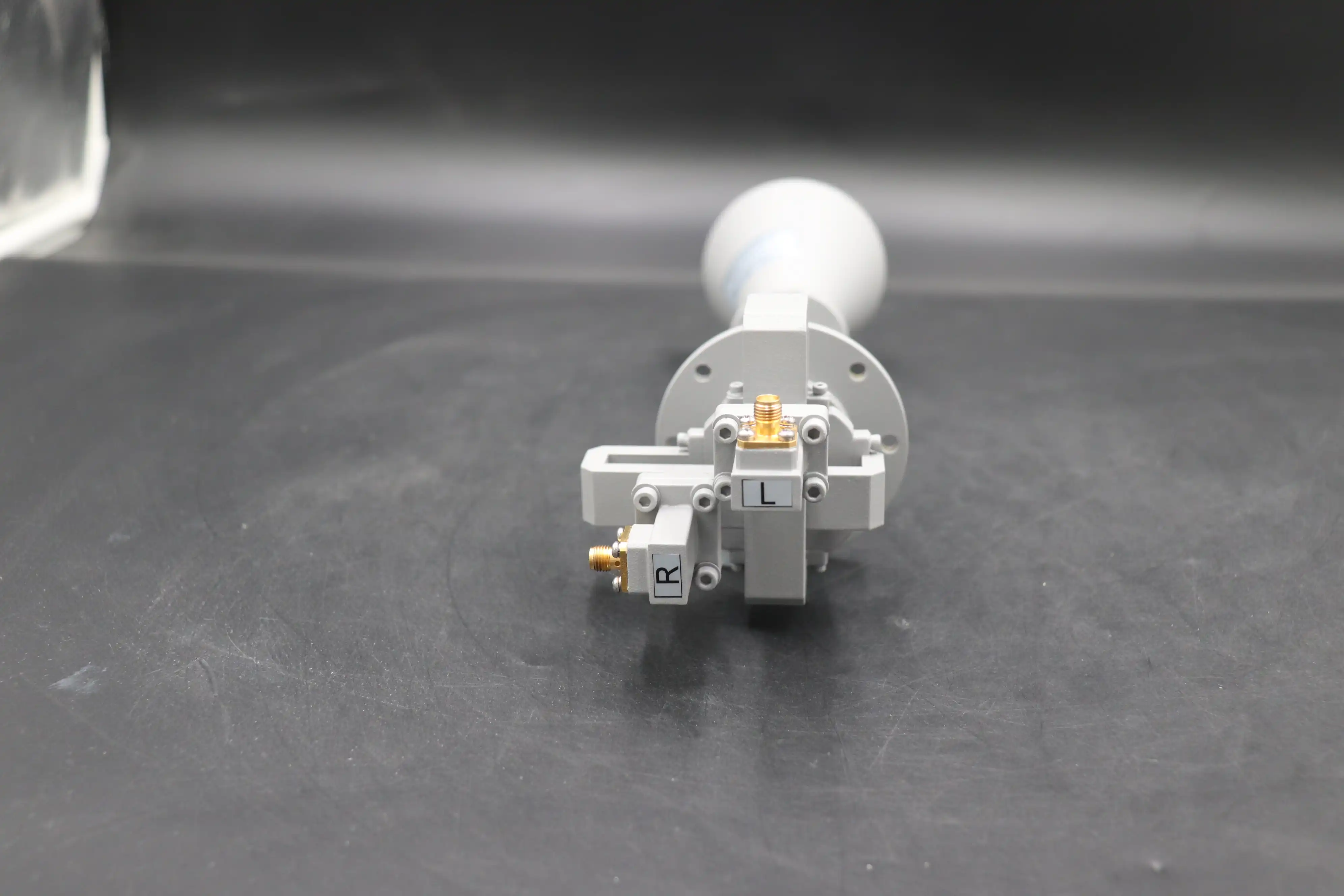

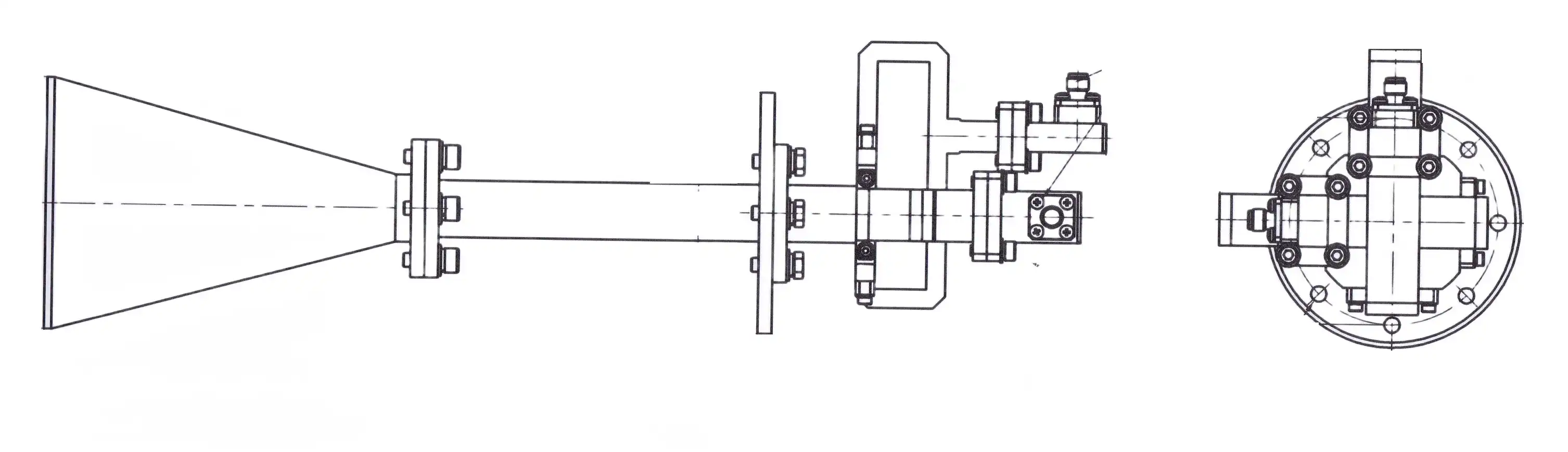

The Conical Dual Circular Polarization Horn Antenna incorporates a revolutionary design approach that combines an Ortho-Mode Transducer (OMT) structure with a linear circular polarizer and conical horn configuration. This sophisticated integration creates a dual circular polarized antenna system that operates with remarkable efficiency across frequencies ranging from 1 GHz to 40 GHz. The OMT structure serves as the foundation for separating and combining orthogonal polarization modes, while the linear circular polarizer transforms these modes into left-hand and right-hand circular polarizations. Advanced Microwave Technologies has engineered this system to achieve polarization isolation greater than 25 dB, ensuring minimal cross-polarization interference that could compromise measurement accuracy. The conical horn geometry provides optimal impedance matching and radiation characteristics, resulting in a nominal beamwidth of 30° and gain levels reaching 20 dB. This comprehensive design approach allows the Conical Dual Circular Polarization Horn Antenna to maintain excellent axial ratio performance, which is crucial for applications requiring precise polarization control and signal fidelity in high-precision testing environments.
Precision Manufacturing and Material Excellence
The manufacturing process of the Conical Dual Circular Polarization Horn Antenna adheres to strict ISO 9001:2008 quality standards, ensuring consistent performance and reliability across all production units. Advanced Microwave Technologies utilizes high-grade aluminum construction that provides excellent thermal stability and mechanical durability while maintaining optimal electrical properties. The precision machining techniques employed in the fabrication process ensure that critical dimensions are maintained within tight tolerances, directly impacting the antenna's electrical performance and frequency response characteristics. Each Conical Dual Circular Polarization Horn Antenna undergoes rigorous testing in Advanced Microwave's state-of-the-art 24-meter microwave darkroom facility, where far-field radiation patterns are meticulously analyzed using sophisticated measurement equipment capable of operating up to 110 GHz. The manufacturing process incorporates advanced quality control measures that verify impedance matching (50 ohms), VSWR performance (≤1.5:1), and polarization purity across the entire operational frequency range. This commitment to precision manufacturing ensures that every Conical Dual Circular Polarization Horn Antenna delivers consistent performance characteristics that meet the demanding requirements of high-precision testing applications in research laboratories, satellite ground stations, and aerospace testing facilities.
Environmental Resilience and Operational Parameters
The robust design of the Conical Dual Circular Polarization Horn Antenna enables reliable operation across extreme environmental conditions, with an operating temperature range spanning from -40°C to +85°C. This wide temperature tolerance makes the antenna suitable for deployment in diverse geographical locations and challenging operational environments where temperature fluctuations could significantly impact performance. The high-grade aluminum construction provides excellent corrosion resistance and thermal conductivity, ensuring stable electrical characteristics even under harsh weather conditions. Advanced Microwave Technologies has optimized the antenna's mechanical design to withstand vibration and shock loads commonly encountered in mobile testing platforms and aerospace applications. The Conical Dual Circular Polarization Horn Antenna weighs approximately 3.5 kg, striking an optimal balance between structural integrity and portability for field testing operations. Standard connector configurations include WR-75 and WR-90 interfaces, though customizable options are available to accommodate specific system requirements. The RoHS compliance certification ensures that the antenna meets international environmental standards for electronic equipment, making it suitable for global deployment in various regulatory environments while maintaining the highest levels of electromagnetic compatibility and safety standards.
Performance Optimization in High-Precision Testing Applications
Satellite Communication System Testing
The Conical Dual Circular Polarization Horn Antenna excels in satellite communication testing scenarios where precise signal characterization is essential for system optimization and performance validation. In satellite ground station testing applications, the antenna's dual circular polarization capability allows engineers to simultaneously evaluate both left-hand and right-hand circular polarized signals, significantly reducing testing time while improving measurement accuracy. The conical horn geometry provides excellent gain stability across the operational frequency range, ensuring consistent signal levels during extended testing procedures. Advanced Microwave Technologies has specifically designed the Conical Dual Circular Polarization Horn Antenna to minimize phase and amplitude variations that could introduce measurement errors in critical satellite communication parameters such as carrier-to-noise ratio, bit error rate, and signal quality metrics. The antenna's superior polarization isolation characteristics enable accurate measurement of cross-polarization discrimination, a critical parameter for satellite systems operating in frequency-reuse configurations. Field testing has demonstrated that the Conical Dual Circular Polarization Horn Antenna maintains excellent pattern stability and low sidelobe levels, making it ideal for measuring antenna far-field radiation patterns and validating satellite antenna performance under various operational conditions.
Radar System Calibration and Measurement
In radar system applications, the Conical Dual Circular Polarization Horn Antenna serves as a precise reference standard for calibrating complex radar measurement systems and validating target detection algorithms. The antenna's stable radiation characteristics and well-defined polarization properties make it an invaluable tool for radar cross-section measurements and target signature analysis. Advanced Microwave Technologies has optimized the Conical Dual Circular Polarization Horn Antenna design to provide consistent performance across wide frequency sweeps, enabling comprehensive radar system characterization from L-band through Ka-band frequencies. The dual circular polarization capability allows radar engineers to evaluate polarization diversity systems and validate adaptive polarization algorithms that enhance target detection capabilities in challenging environments. The antenna's compact design and robust construction make it suitable for both laboratory testing and outdoor range measurements where environmental factors could impact measurement accuracy. Testing procedures utilizing the Conical Dual Circular Polarization Horn Antenna have demonstrated significant improvements in measurement repeatability and reduced uncertainty levels compared to traditional linearly polarized reference antennas, particularly in applications involving rotating targets or complex scattering mechanisms.
Aerospace Communication Testing and Validation
The aerospace industry relies heavily on the precision and reliability of the Conical Dual Circular Polarization Horn Antenna for testing advanced communication systems used in aircraft, spacecraft, and unmanned aerial vehicles. The antenna's exceptional phase and amplitude stability across temperature variations makes it particularly valuable for testing aerospace communication equipment that must operate reliably across extreme environmental conditions encountered at high altitudes and in space. Advanced Microwave Technologies has validated the Conical Dual Circular Polarization Horn Antenna performance through extensive testing programs that simulate the challenging electromagnetic environments encountered in aerospace applications. The antenna's low VSWR characteristics ensure accurate impedance matching with sensitive aerospace communication equipment, preventing measurement errors that could compromise system validation procedures. The dual circular polarization capability enables comprehensive testing of satellite communication terminals, GPS receivers, and other navigation systems that rely on circular polarized signals for optimal performance. Flight testing programs have demonstrated that the Conical Dual Circular Polarization Horn Antenna provides consistent measurement results that correlate well with operational system performance, making it an essential tool for aerospace communication system development and certification processes.
Manufacturing Excellence and Customization Capabilities
ISO-Certified Quality Assurance and Testing
Advanced Microwave Technologies maintains rigorous quality standards throughout the manufacturing process of the Conical Dual Circular Polarization Horn Antenna, ensuring that each unit meets or exceeds specified performance requirements. The company's ISO 9001:2008 certification demonstrates its commitment to quality management systems that encompass every aspect of design, manufacturing, and testing procedures. Each Conical Dual Circular Polarization Horn Antenna undergoes comprehensive testing in Advanced Microwave's advanced measurement facilities, where radiation patterns, gain, impedance, and polarization characteristics are verified using state-of-the-art equipment calibrated to international standards. The testing protocol includes near-field and far-field measurements that validate antenna performance across the entire operational frequency range, ensuring that polarization isolation and axial ratio specifications are consistently met. Quality control procedures incorporate statistical process control methods that monitor manufacturing variations and identify potential issues before they impact product performance. The Conical Dual Circular Polarization Horn Antenna design has been validated through extensive environmental testing that verifies performance stability across temperature, humidity, and vibration conditions typically encountered in field applications, providing customers with confidence in long-term reliability and measurement accuracy.
Custom Engineering Solutions and OEM Services
Advanced Microwave Technologies offers comprehensive OEM services that enable customers to obtain customized versions of the Conical Dual Circular Polarization Horn Antenna tailored to specific application requirements. The company's experienced engineering team works closely with customers to understand unique performance requirements and develop modified designs that optimize antenna characteristics for particular testing scenarios. Customization options include frequency range modifications, specialized connector configurations, enhanced environmental protection, and modified mechanical interfaces that facilitate integration with existing test systems. The Conical Dual Circular Polarization Horn Antenna design platform provides flexibility for scaling gain levels, adjusting beamwidth characteristics, and optimizing polarization performance for specialized applications. Advanced Microwave's in-house design capabilities include electromagnetic simulation tools and rapid prototyping facilities that enable quick evaluation of custom configurations before full-scale production. The company's global supply chain and manufacturing partnerships ensure that customized Conical Dual Circular Polarization Horn Antenna solutions can be delivered efficiently while maintaining the same quality standards applied to standard products, making it possible for customers to obtain tailored solutions without compromising delivery schedules or performance requirements.
Technical Support and Application Engineering
The technical support team at Advanced Microwave Technologies provides comprehensive assistance to customers implementing Conical Dual Circular Polarization Horn Antenna solutions in their testing environments. The team includes experienced RF engineers who understand the complexities of high-frequency measurements and can provide guidance on optimal antenna positioning, measurement procedures, and system integration considerations. Technical support services include installation guidance that helps customers achieve optimal performance from their Conical Dual Circular Polarization Horn Antenna installations, including recommendations for measurement distances, environmental considerations, and calibration procedures. The company's application engineers work with customers to develop measurement methodologies that maximize the antenna's capabilities while addressing specific testing requirements and accuracy objectives. Advanced Microwave Technologies maintains detailed technical documentation and measurement data for the Conical Dual Circular Polarization Horn Antenna that enables customers to understand performance characteristics and develop appropriate uncertainty budgets for their measurement applications. The technical support team also provides troubleshooting assistance and performance optimization recommendations that help customers achieve maximum value from their antenna investments while ensuring measurement results meet required accuracy standards.
Conclusion
The Conical Dual Circular Polarization Horn Antenna represents a pinnacle of engineering excellence in high-precision testing applications, combining advanced dual polarization technology with robust construction and exceptional performance characteristics. Advanced Microwave Technologies has successfully developed a solution that addresses the complex requirements of modern satellite communications, radar systems, and aerospace testing environments through innovative design approaches and rigorous quality control processes. The antenna's superior polarization isolation, stable radiation patterns, and wide frequency coverage make it an indispensable tool for engineers and researchers demanding the highest levels of measurement accuracy and reliability in their testing operations.
