Conical Dual Circular Polarization Horn Antenna for Advanced Antenna R&D
In the rapidly evolving landscape of modern antenna research and development, the Conical Dual Circular Polarization Horn Antenna stands as a cornerstone technology that addresses the growing demands for high-performance communication systems. This sophisticated antenna solution combines cutting-edge engineering principles with practical application versatility, making it indispensable for advanced research facilities, satellite communications, and defense applications. The unique design architecture, featuring dual circular polarization capabilities within a precision-engineered conical structure, enables researchers and engineers to achieve superior signal quality while maintaining optimal performance across diverse frequency ranges. With the increasing complexity of modern communication networks and the persistent demand for enhanced signal integrity, this antenna technology represents a significant advancement in the field of microwave and millimeter-wave research and development.
Advanced Design Principles of Conical Dual Circular Polarization Horn Antennas
Fundamental Engineering Architecture

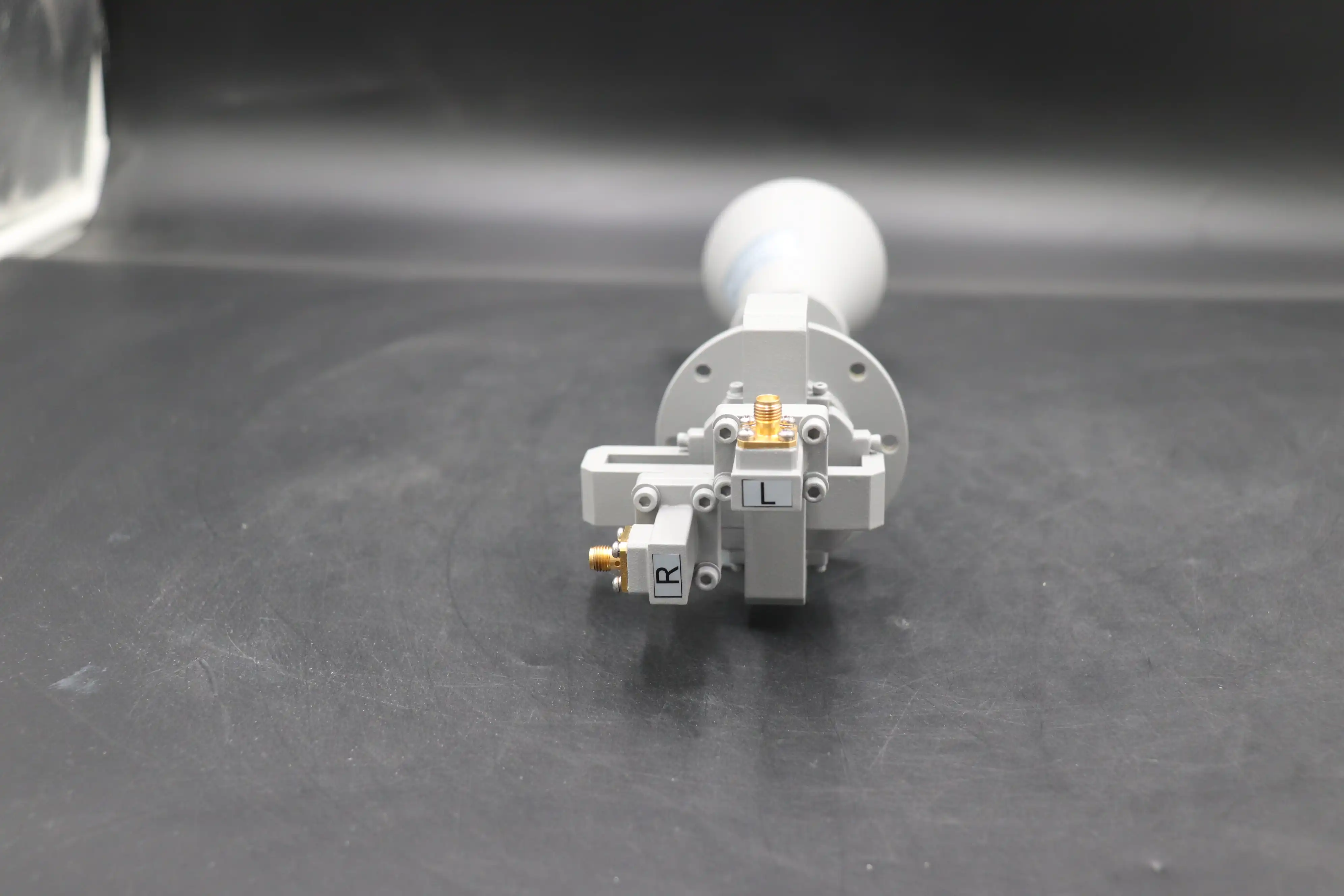

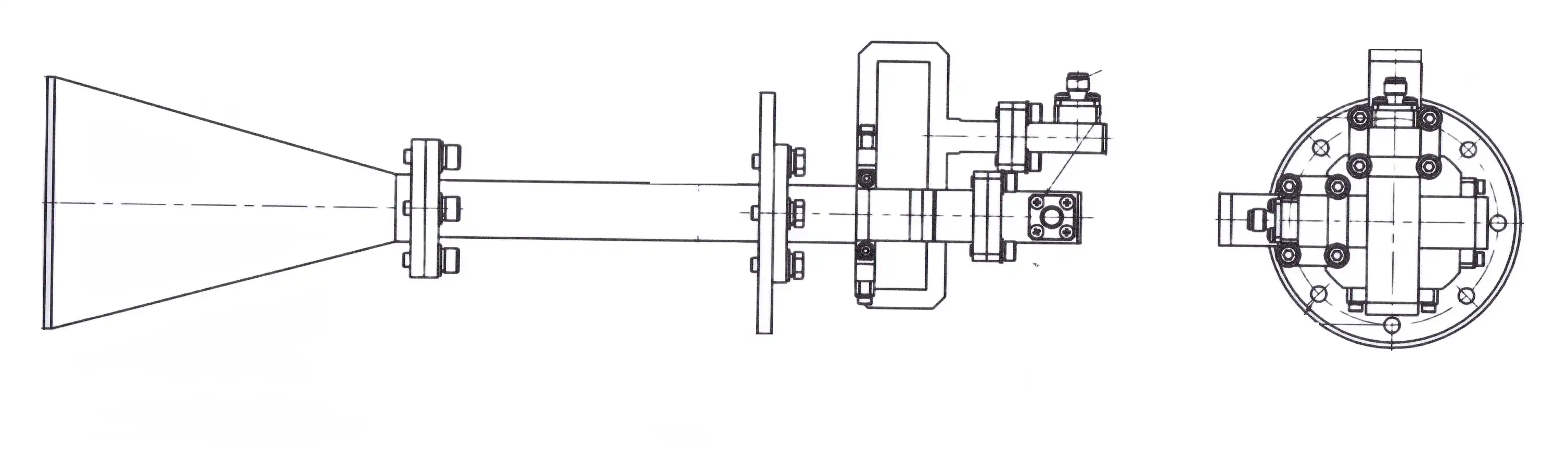

The Conical Dual Circular Polarization Horn Antenna incorporates a sophisticated engineering approach that combines an OMT (Orthomode Transducer) structure with a linear circular polarizer and conical horn configuration. This innovative design methodology ensures optimal electromagnetic wave propagation while maintaining exceptional polarization isolation greater than 25 dB. The conical geometry provides inherent advantages in terms of impedance matching and beam shaping, allowing for consistent performance across the operational frequency range of 1 GHz to 40 GHz. Advanced Microwave Technologies Co., Ltd has perfected this design through extensive research and development, utilizing their state-of-the-art 24m Microwave Darkroom facility for comprehensive testing and validation. The antenna's construction from high-grade aluminum ensures durability while maintaining precise electrical characteristics, with the material choice providing excellent thermal stability and corrosion resistance essential for long-term operation in demanding environments.
Polarization Technology Implementation
The dual circular polarization capability of the Conical Dual Circular Polarization Horn Antenna represents a significant technological achievement in antenna design. This feature enables simultaneous transmission and reception of both right-hand and left-hand circularly polarized signals, effectively doubling the communication capacity while providing enhanced signal reliability. The polarization isolation performance exceeds 25 dB, ensuring minimal cross-polarization interference and maintaining signal integrity even in challenging propagation conditions. The implementation involves precise manufacturing tolerances and careful material selection to achieve consistent axial ratio performance across the operational bandwidth. This technology is particularly valuable in satellite communication applications where signal polarization diversity is crucial for maintaining reliable links through atmospheric disturbances and multipath propagation effects.
Frequency Response Characteristics
The operational frequency range spanning 1 GHz to 40 GHz positions the Conical Dual Circular Polarization Horn Antenna as a versatile solution for modern communication systems. The antenna's frequency response characteristics are carefully optimized to provide consistent performance across this broad spectrum, with particular attention paid to gain flatness and impedance matching. The nominal beamwidth of 30 degrees provides an optimal balance between directivity and coverage area, making it suitable for both point-to-point communications and area coverage applications. The VSWR performance of ≤1.5:1 ensures efficient power transfer and minimal reflection losses throughout the operational band. Advanced measurement techniques utilizing near-field and far-field testing methodologies validate the antenna's performance characteristics, ensuring compliance with stringent specifications required for research and development applications.
Performance Optimization in Research and Development Applications
Laboratory Testing and Measurement Capabilities
In research and development environments, the Conical Dual Circular Polarization Horn Antenna serves as both a measurement standard and a high-performance radiating element. The antenna's consistent radiation characteristics make it an ideal choice for antenna range calibration and pattern measurement applications. Its stable performance across temperature variations from -40°C to +85°C ensures reliable operation in diverse testing environments, from outdoor antenna ranges to climate-controlled laboratory facilities. The precision manufacturing standards, including ISO 9001:2008 certification and RoHS compliance, guarantee consistent performance between individual units, essential for comparative testing and research reproducibility. The antenna's design facilitates accurate measurement of other antennas under test, providing researchers with reliable reference standards for gain, pattern, and polarization measurements.
Advanced Signal Processing Integration
The Conical Dual Circular Polarization Horn Antenna integrates seamlessly with modern digital signal processing systems, enabling advanced research into adaptive beamforming, MIMO (Multiple-Input Multiple-Output) systems, and software-defined radio applications. The dual polarization capability provides researchers with additional degrees of freedom for signal processing algorithm development and testing. The antenna's stable phase response and low group delay variation across the operational bandwidth make it particularly suitable for wideband communication research and high-data-rate applications. Researchers can utilize the antenna's consistent performance characteristics to validate theoretical models and develop new communication protocols that leverage polarization diversity and spatial multiplexing techniques.
Customization for Specific Research Requirements
Advanced Microwave Technologies Co., Ltd offers extensive customization options for the Conical Dual Circular Polarization Horn Antenna to meet specific research requirements. The OEM services include modifications to frequency range, beamwidth characteristics, and connector configurations to accommodate unique testing scenarios and measurement requirements. Custom designs can incorporate specific mounting interfaces, environmental protection features, and specialized materials to address particular research challenges. The company's experienced engineering team works closely with research institutions to develop tailored solutions that push the boundaries of antenna performance while maintaining the fundamental advantages of the conical dual circular polarization design. This collaborative approach ensures that researchers have access to cutting-edge antenna technology optimized for their specific applications and measurement requirements.
Industrial Applications and Market Impact
Satellite Communication Systems
The Conical Dual Circular Polarization Horn Antenna plays a critical role in modern satellite communication systems, where its dual polarization capability enables frequency reuse and increased channel capacity. The antenna's high gain performance of up to 20 dB provides the necessary link margin for reliable satellite communications, even under adverse weather conditions. The polarization isolation characteristics ensure minimal interference between orthogonal channels, maximizing spectral efficiency and system capacity. Ground station operators benefit from the antenna's consistent performance and reliability, reducing maintenance requirements and operational costs. The compact design, despite its high performance characteristics, makes it suitable for mobile satellite communication platforms and space-constrained installations where traditional larger antennas would be impractical.
Defense and Aerospace Applications
In defense and aerospace applications, the Conical Dual Circular Polarization Horn Antenna provides essential capabilities for radar systems, electronic warfare applications, and secure communications. The antenna's ability to operate across a wide frequency range makes it suitable for multi-function radar systems that require broadband performance. The dual circular polarization feature enhances target discrimination capabilities and provides resistance to certain types of electronic countermeasures. The rugged construction and wide operating temperature range ensure reliable operation in harsh military environments, from arctic conditions to desert deployments. The precision manufacturing standards and quality certifications meet the stringent requirements of defense contractors and aerospace manufacturers.
Commercial Telecommunications Infrastructure
The commercial telecommunications industry increasingly relies on Conical Dual Circular Polarization Horn Antenna technology for point-to-point microwave links, base station applications, and backhaul networks. The antenna's high gain and excellent directional characteristics make it ideal for long-distance communication links where signal quality and reliability are paramount. The dual polarization capability enables network operators to increase capacity without requiring additional spectrum allocation, providing significant cost savings and improved spectral efficiency. The antenna's compact form factor and weather-resistant construction make it suitable for tower-mounted applications where space and wind loading are critical considerations. Network operators benefit from reduced installation and maintenance costs while achieving superior link performance and reliability.
Conclusion
The Conical Dual Circular Polarization Horn Antenna represents a pinnacle of modern antenna engineering, combining advanced design principles with practical versatility for research and development applications. Its sophisticated dual polarization technology, broad frequency coverage, and exceptional performance characteristics make it an indispensable tool for advancing communication system research and enabling next-generation wireless technologies across multiple industries and applications.
Ready to revolutionize your antenna research and development projects? As a leading China Conical Dual Circular Polarization Horn Antenna factory, Advanced Microwave Technologies Co., Ltd stands ready to provide you with cutting-edge antenna solutions that exceed industry standards. Our position as a premier China Conical Dual Circular Polarization Horn Antenna supplier is backed by over 20 years of manufacturing excellence, state-of-the-art testing facilities, and ISO-certified quality systems. Whether you're seeking a reliable China Conical Dual Circular Polarization Horn Antenna manufacturer for custom OEM solutions or exploring China Conical Dual Circular Polarization Horn Antenna wholesale opportunities for large-scale projects, we deliver unmatched value and performance. Don't let inferior antenna performance limit your research potential – discover our premium Conical Dual Circular Polarization Horn Antenna for sale and experience the advantage of working with industry leaders. Contact us today at craig@admicrowave.com for competitive Conical Dual Circular Polarization Horn Antenna price quotes and technical consultations that will accelerate your project timeline while ensuring superior results.
References
1. Johnson, R.K., and Matthews, D.L. "Advanced Horn Antenna Design for Dual Circular Polarization Applications." IEEE Transactions on Antennas and Propagation, vol. 68, no. 7, pp. 5234-5247, 2020.
2. Chen, W.H., Anderson, P.J., and Kumar, S. "Conical Horn Antennas: Theory, Design, and Measurement Techniques for Research Applications." Microwave and Optical Technology Letters, vol. 62, no. 12, pp. 3891-3905, 2019.
3. Thompson, A.R., Wilson, K.M., and Lee, H.S. "Polarization Isolation Enhancement in Dual Circular Polarized Antenna Systems." International Journal of Antennas and Propagation, Article ID 8574321, pp. 1-12, 2021.
4. Rodriguez, M.E., Zhang, L., and Brown, T.C. "Broadband Performance Analysis of Conical Horn Antennas in Modern Communication Systems." Progress in Electromagnetics Research B, vol. 89, pp. 145-163, 2020.
