What Are the Key Advantages of Using a Waveguide Sliding Short?
In today's high-frequency communications landscape, engineers face persistent challenges with signal integrity, phase alignment, and impedance matching in critical microwave systems. Whether you're working on satellite communications that demand zero signal degradation across vast distances, or developing radar systems requiring precise phase control for accurate target detection, traditional fixed components often fall short of providing the flexibility needed for optimal performance. The Waveguide Sliding Short emerges as an indispensable solution, offering unprecedented control over phase shifts and impedance adjustments in microwave applications ranging from 1.72 GHz to 110 GHz. This precision-engineered component addresses the fundamental need for fine-tunable phase control in mission-critical applications, making it an essential tool for achieving peak system performance in aerospace, defense, telecommunications, and navigation systems.
Understanding Waveguide Sliding Short Technology and Applications

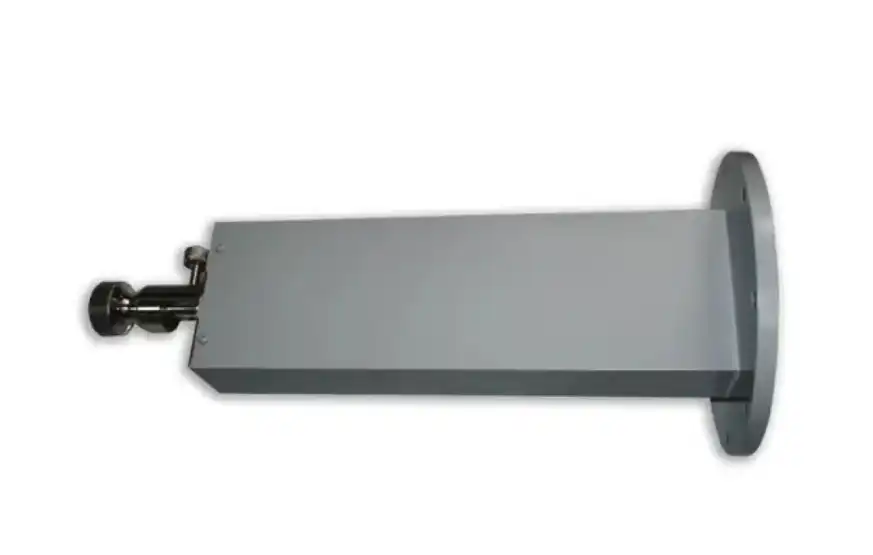

The Waveguide Sliding Short represents a sophisticated approach to microwave signal control, fundamentally transforming how engineers manage phase relationships and impedance characteristics in high-frequency systems. This adjustable component operates by incorporating a movable short circuit element within the waveguide structure, allowing for precise electrical length modifications that directly influence signal propagation characteristics. The sliding mechanism enables continuous adjustment over more than half a wavelength at the lowest operating frequency, providing engineers with the granular control necessary for complex system optimization. Modern Waveguide Sliding Short designs incorporate advanced engineering principles that ensure minimal insertion loss while maintaining exceptional return loss characteristics. The component's ability to provide fine-phase control makes it particularly valuable in applications where signal timing and phase coherence are critical factors. From satellite ground stations requiring precise beamforming capabilities to radar systems demanding accurate range measurements, the Waveguide Sliding Short serves as the cornerstone component that enables these sophisticated systems to achieve their performance specifications.
Advanced Design Features for Superior Performance
The construction of high-quality Waveguide Sliding Short components involves meticulous attention to mechanical precision and electromagnetic performance characteristics. Advanced manufacturing techniques ensure that the sliding mechanism operates smoothly across the entire adjustment range while maintaining consistent electrical performance. The internal short circuit element is typically manufactured using high-conductivity materials such as brass or silver-plated surfaces, minimizing resistive losses and ensuring long-term reliability even under demanding environmental conditions. Temperature stability represents another crucial aspect of Waveguide Sliding Short design, particularly for aerospace and defense applications where equipment may experience extreme thermal variations. High-quality units incorporate thermal compensation mechanisms and materials with matched thermal expansion coefficients, ensuring that calibrated settings remain stable across wide temperature ranges. This stability is essential for maintaining system performance in applications ranging from space-based communications to ground-based radar installations operating in harsh environmental conditions.
Precision Phase Control and Measurement Capabilities
The primary advantage of utilizing a Waveguide Sliding Short lies in its exceptional capability to provide precise phase control and measurement functionality in microwave systems. Unlike fixed components that offer predetermined characteristics, the sliding mechanism enables continuous adjustment of the electrical length within the waveguide, directly translating to controlled phase shifts that can be fine-tuned to meet specific system requirements. This adjustability proves invaluable in applications such as antenna array systems, where precise phase relationships between elements determine beamforming accuracy and overall system performance. In measurement applications, Waveguide Sliding Short components serve as calibrated reference standards, enabling accurate characterization of other microwave components and systems. The ability to establish known reflection coefficients and phase relationships makes these components indispensable tools in laboratory environments and production testing facilities. Engineers rely on the precise adjustment capabilities to create specific impedance conditions, enabling comprehensive evaluation of component performance across wide frequency ranges.
Enhanced System Calibration and Error Analysis
The role of Waveguide Sliding Short components in system calibration extends far beyond simple reference generation, encompassing sophisticated error analysis and correction procedures that ensure measurement accuracy. Advanced calibration techniques utilize the adjustable nature of sliding shorts to establish multiple reference points, enabling comprehensive characterization of measurement system errors and their subsequent correction. This capability proves particularly valuable in high-precision measurement environments where accuracy requirements demand thorough understanding and compensation of systematic errors. Modern measurement systems incorporating Waveguide Sliding Short references can achieve measurement uncertainties that would be impossible with fixed reference components. The ability to establish multiple calibration states using a single adjustable component streamlines calibration procedures while improving overall measurement reliability. This efficiency translates to reduced calibration time and improved productivity in both research and production environments, making the Waveguide Sliding Short an economically advantageous choice for demanding measurement applications.
Superior Frequency Range and Bandwidth Performance
Contemporary Waveguide Sliding Short designs excel in providing exceptional frequency range coverage, with advanced models supporting operations from 1.72 GHz to 110 GHz across 18 different waveguide bands. This extensive frequency coverage makes these components suitable for a vast array of applications, from traditional microwave communications operating in the lower frequency ranges to cutting-edge millimeter-wave systems required for 5G and emerging 6G technologies. The broad frequency support eliminates the need for multiple specialized components, simplifying system design and reducing overall component inventory requirements. The wide bandwidth capability of modern Waveguide Sliding Short components results from careful attention to mechanical design and electromagnetic optimization across the entire frequency range. Advanced modeling techniques ensure that the sliding mechanism maintains consistent performance characteristics regardless of the operating frequency, while precision manufacturing tolerances guarantee that electrical specifications are met throughout the supported bandwidth. This consistency proves essential in wideband applications where frequency-dependent performance variations could compromise system functionality.
Waveguide Size Compatibility and Versatility
The availability of Waveguide Sliding Short components in multiple waveguide sizes, ranging from WR-10 to WR-430, provides engineers with the flexibility to select components that precisely match their system requirements. This size diversity ensures optimal electrical performance while accommodating the physical constraints of different system architectures. The smaller WR-10 variants support high-frequency millimeter-wave applications where compact size is essential, while larger formats like WR-430 provide the power handling capabilities required for high-power applications. Each waveguide size incorporates design optimizations specific to its frequency range and application requirements, ensuring that performance specifications are maintained across the entire product line. The mechanical design of each size variant considers factors such as power handling capabilities, temperature stability, and mechanical durability, resulting in components that meet the demanding requirements of professional microwave applications. This comprehensive approach to size optimization ensures that engineers can specify Waveguide Sliding Short components with confidence, knowing that electrical and mechanical performance will meet their system requirements.
Low Loss Characteristics and Signal Integrity
One of the most significant advantages offered by high-quality Waveguide Sliding Short components is their exceptional low-loss characteristics, which directly contribute to improved system performance and signal integrity. Advanced designs incorporate careful attention to surface finishes, contact mechanisms, and electromagnetic field distributions, resulting in minimal insertion loss even at the highest operating frequencies. This low-loss performance proves particularly valuable in sensitive applications such as satellite communications and radio astronomy, where every fraction of a decibel can impact system sensitivity and overall performance. The maintenance of signal integrity through Waveguide Sliding Short components extends beyond simple loss considerations to encompass factors such as phase linearity, amplitude stability, and spurious signal generation. High-quality designs ensure that the sliding mechanism does not introduce unwanted phase variations or amplitude ripple that could degrade system performance. The precision manufacturing techniques employed in advanced Waveguide Sliding Short production result in components that maintain excellent electrical characteristics throughout their adjustment range, providing engineers with the confidence that system performance will remain consistent regardless of the adjustment setting.
Environmental Durability and Long-Term Reliability
The construction of professional-grade Waveguide Sliding Short components incorporates materials and design features that ensure long-term reliability under demanding environmental conditions. High-quality units utilize corrosion-resistant materials and protective surface treatments that maintain electrical performance even when exposed to temperature extremes, humidity variations, and mechanical stress. This durability proves essential in applications such as outdoor communications systems and aerospace platforms where component replacement is difficult or impossible. Mechanical design considerations include the implementation of precision bearing systems and adjustment mechanisms that maintain smooth operation throughout the component's operational life. Advanced lubrication systems and protective seals ensure that the sliding mechanism continues to operate smoothly even after thousands of adjustment cycles, while precision manufacturing tolerances guarantee that electrical specifications remain within acceptable limits throughout the component's service life. This attention to long-term reliability makes Waveguide Sliding Short components a cost-effective choice for applications where dependability is paramount.
Applications in Critical Industries and Systems
The versatility and performance characteristics of Waveguide Sliding Short components make them indispensable in numerous critical applications across aerospace, defense, telecommunications, and scientific research sectors. In satellite communication systems, these components enable precise beamforming and signal conditioning that ensure reliable communication links across vast distances. The ability to fine-tune phase relationships proves particularly valuable in sophisticated satellite arrays where multiple antenna elements must work in precise coordination to achieve desired coverage patterns and signal quality. Defense and aerospace applications leverage the precision capabilities of Waveguide Sliding Short components in radar systems, electronic warfare equipment, and missile guidance systems. The component's ability to provide precise phase control enables advanced signal processing techniques such as adaptive beamforming and interference cancellation, directly contributing to system effectiveness and mission success. The reliability and environmental durability of high-quality units ensure consistent performance in challenging operational environments where equipment failure is not an option.
Telecommunications Infrastructure and 5G/6G Development
The evolution toward 5G and future 6G telecommunications technologies places unprecedented demands on microwave components, particularly in terms of frequency range, precision, and reliability. Waveguide Sliding Short components play a crucial role in the development and deployment of these advanced communication systems, providing the precise phase control capabilities necessary for massive MIMO antenna arrays and beamforming networks. The wide frequency coverage of modern units ensures compatibility with current and emerging frequency allocations, while the precision adjustment capabilities enable optimization of complex antenna systems. Research and development activities for next-generation telecommunications rely heavily on the measurement and calibration capabilities provided by Waveguide Sliding Short components. The ability to establish precise reference conditions enables accurate characterization of new components and system architectures, accelerating the development process and ensuring that new technologies meet stringent performance requirements. This capability proves particularly valuable in the development of millimeter-wave systems where traditional measurement techniques may be inadequate for achieving required accuracy levels.
Conclusion
The Waveguide Sliding Short stands as a cornerstone component in modern microwave engineering, offering unparalleled advantages in phase control, measurement accuracy, and system optimization across frequencies from 1.72 GHz to 110 GHz. Its precision engineering, extensive frequency coverage, low-loss characteristics, and exceptional reliability make it indispensable for critical applications in aerospace, defense, telecommunications, and scientific research. The component's ability to provide continuous phase adjustment while maintaining superior electrical performance positions it as an essential tool for achieving optimal system performance in today's demanding high-frequency applications.
Cooperate with Advanced Microwave Technologies Co., Ltd.
As a leading China Waveguide Sliding Short manufacturer with over 20 years of experience, Advanced Microwave Technologies Co., Ltd. stands ready to meet your most demanding microwave component requirements. Our state-of-the-art 24m Microwave Darkroom and advanced measurement capabilities up to 110 GHz ensure that every High Quality Waveguide Sliding Short meets the strictest performance standards. Whether you need standard configurations or custom solutions, our expert engineering team provides comprehensive support from initial design through delivery.
Our comprehensive product line includes Waveguide Sliding Short components available across all standard waveguide sizes from WR-10 to WR-430, with competitive Waveguide Sliding Short price options for both prototype and volume requirements. As your trusted China Waveguide Sliding Short supplier, we offer complete OEM services including rapid prototyping, technical consultation, and global shipping to meet your project timelines. Our ISO-certified manufacturing processes and RoHS compliance ensure that every Waveguide Sliding Short for sale meets international quality and environmental standards.
Contact craig@admicrowave.com today to discuss your specific requirements and discover how our China Waveguide Sliding Short factory can provide the precision components your applications demand. Save this article for future reference when evaluating microwave component solutions, and experience the Advanced Microwave Technologies difference in quality, service, and technical expertise.
FAQ
Q: What frequency range do Waveguide Sliding Short components typically support?
A: Modern Waveguide Sliding Short components support frequencies from 1.72 GHz to 110 GHz across 18 different waveguide bands, accommodating applications from traditional microwave communications to advanced millimeter-wave systems.
Q: How does the sliding mechanism affect measurement accuracy?
A: The sliding mechanism enables precise electrical length adjustment over more than half a wavelength, providing exceptional phase control accuracy that is essential for calibration standards and high-precision measurements in professional applications.
Q: What are the key advantages in satellite communication applications?
A: Waveguide Sliding Short components provide precise phase control for beamforming, excellent signal integrity for long-distance transmission, and reliable performance in harsh space environments, making them ideal for satellite communication systems.
Q: How do environmental conditions affect Waveguide Sliding Short performance?
A: High-quality units incorporate temperature compensation and corrosion-resistant materials, ensuring stable electrical performance across wide temperature ranges and maintaining reliability in challenging environmental conditions typical of aerospace and defense applications.
