Waveguide Circulator

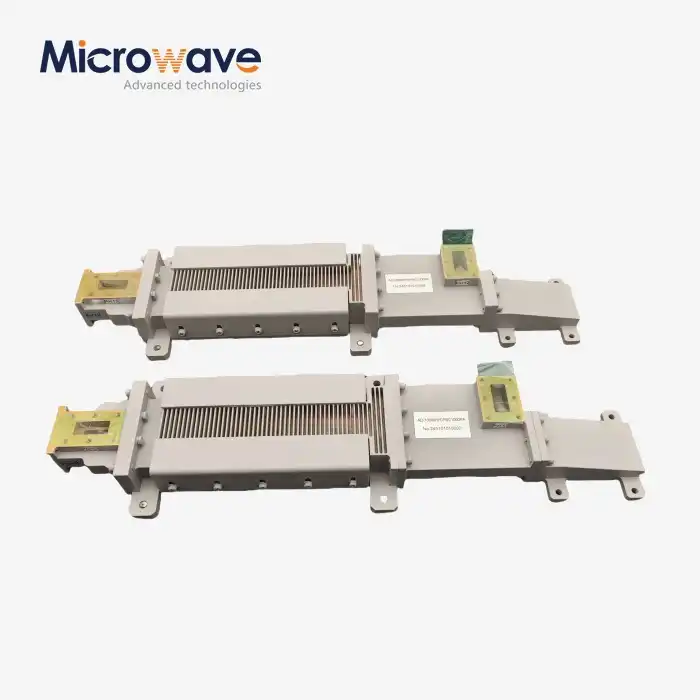

Waveguide Circulator for High-Power RF Systems
A waveguide circulator is a passive, non-reciprocal microwave component that routes electromagnetic energy through a controlled directional path using the gyromagnetic properties of ferrite material under magnetic bias. Signal entering Port 1 exits Port 2; signal entering Port 2 exits Port 3. The hollow metallic construction removes the inner conductor and dielectric supports found in coaxial designs, which lowers forward-path loss and enables high-power operation. Advanced Microwave Technologies Co., Ltd. (ADM) designs and manufactures products covering X, Ku, Ka, V, and W bands.

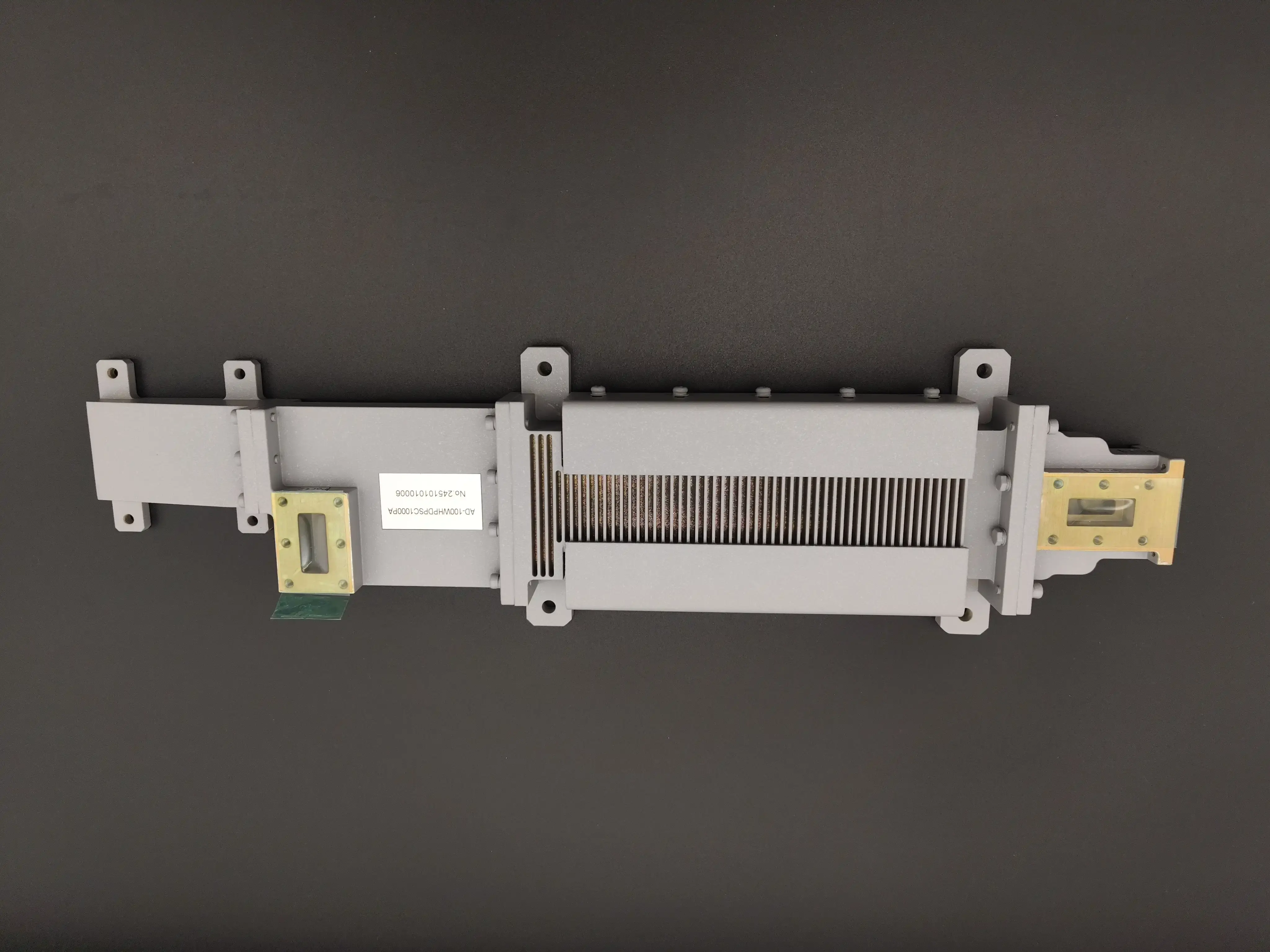

What Is a Waveguide Circulator and How Does It Work?
A product is a 3-port or 4-port passive device. A magnetized ferrite element placed at the waveguide junction creates a non-reciprocal transmission environment: signal flow follows a fixed directional sequence, and energy traveling in the reverse direction is strongly attenuated.
This behavior makes the circulator useful as a protective element in front of high-power sources such as magnetrons, klystrons, traveling wave tubes (TWTs), and solid-state power amplifiers (SSPAs). Reflected power caused by VSWR mismatches is redirected rather than returned to the source.
Unlike coaxial designs, the hollow metallic waveguide structure carries no inner conductor or dielectric supports. This structural difference reduces insertion loss and supports operation at power levels that coaxial alternatives cannot sustain.

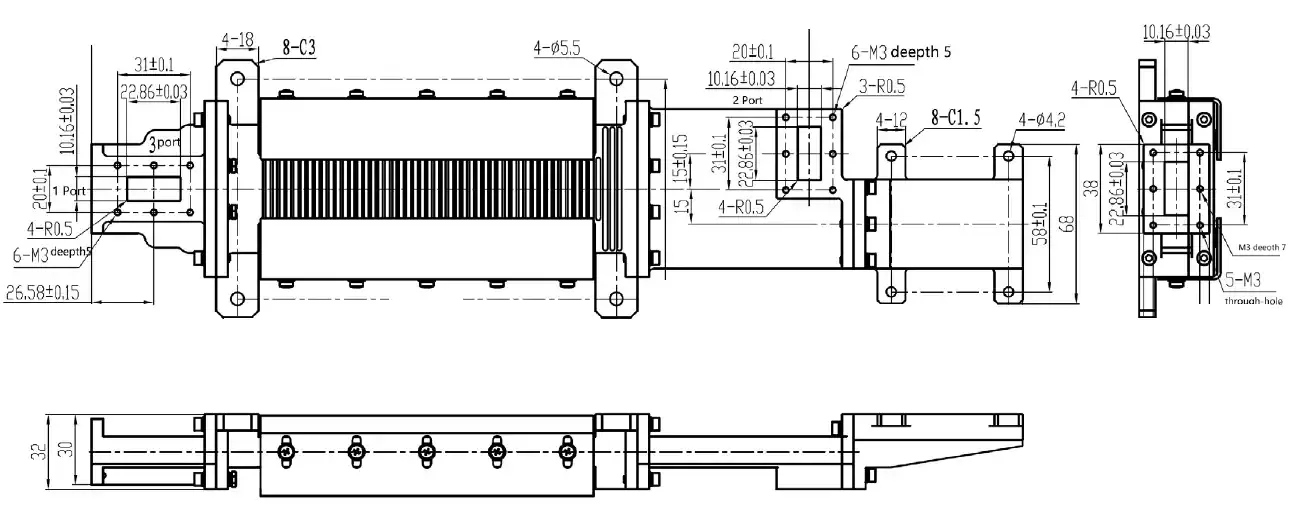

Key Technical Specifications
Parameter | Value / Range |
Frequency Bands | X, Ku, Ka, V, W Band |
Number of Ports | 3-port or 4-port |
Fractional Bandwidth | 5%–20% (standard); wideband models available |
Cooling Options | Water-cooling channels; forced-air fins |
Tuning | Factory-tuned; select high-power units include external tuning screws |
Operating Principle | Faraday rotation via magnetized ferrite |
Construction | Hollow metallic waveguide conductor |
Insertion loss, isolation depth, and power handling values vary by frequency band and configuration. Contact ADM at craig@admicrowave.com for datasheet details.
Core Product Features
The forward-path insertion loss is kept low by getting rid of the inner wire and dielectric supports that are part of coaxial designs. At millimeter-wave frequencies, where material losses start to add up, this structural advantage becomes even more important.
The ferrite junction completely blocks signals going in the opposite direction, which is called reverse isolation. This keeps energy that is mirrored away from the source and lowers the chance that different parts of the system will interfere with each other.
When needed, built-in cooling helps with high-power operation, which is backed by the waveguide structure itself. For high average power applications, water-cooling channels can be built into the housing. For systems that can't use liquid cooling, forced-air fins can be used instead.
Magnets that adjust to temperature and, in high-power models, active liquid cooling are used to fix problems caused by temperature. Thermal management is an important part of design because the device loses its non-reciprocal features as the ferrite temperature gets close to its Curie temperature.
You can set up an isolator by connecting Port 3 to a matched high-power waveguide load. In this setup, the waveguide circulator acts as an isolator, sending energy that is reflected into the termination instead of back toward the transmit chain.
Application Scenarios
High-power radar systems (for weather and scanning):
High-power broadcast pulses are sent to the antenna by the circulator, which also sends received echoes to the low-noise amplifier (LNA). In both ground-based and airborne radar platforms, this duplexing function keeps the receiver safe from transmitter leakage.
Earth stations for satellite communication (SATCOM):
For satellite uplinks, the product lowers loss in the transmit chain from the high-power amplifier (HPA) to the antenna feed and separates the power combiner stages, which allows for stable operation outside.
Microwave heating for industry and linear accelerators (LINAC):
When there are impedance mismatches, like when the load changes from wet to dry, the energy that was reflected is sent to a fake load. This keeps the magnetron safe from thermal stress and frequency pulling.
Electronic defences and measuring with microwaves:
It is important for EW systems and RF test sets to have precise signal routing with low cross-port leakage. In situations with a lot of interference, the circulator keeps the signals separate and the system's integrity.
ADM Engineering and Testing Capabilities
ADM has a special microwave darkroom (24 m) that can measure both near-field and far-field antennas and parts. From 0.5 GHz to 110 GHz is the test range.
Before being sent out, every waveguide part is tested by engineers in-house. Custom versions can be made in the R&D lab for certain frequency ranges, port layouts, power levels, and cooling needs.
ADM works with companies that work on satellite communications, aerospace, radar, and developing improved communication systems. There are branch offices in Xi'an, Chengdu, Beijing, Tianjin, and Shijiazhuang that help coordinate projects in the region.
Customization Options
ADM supports customized waveguide circulator designs based on your system requirements. Available options include:
· Frequency band optimization across X through W band
· 3-port or 4-port configurations
· Integrated water cooling or forced-air fins for high average power applications
· External tuning screws for VSWR adjustment at specific frequencies
· Matched high-power waveguide load terminations for isolator configurations
To receive technical support and a product recommendation, provide your target frequency, bandwidth, power level, and application details to craig@admicrowave.com.
FAQ
Q: What is the main reason why a product is better than a coaxial circulator?
A: The goods have less insertion loss and can handle more power. By taking out the inner conductor and dielectric supports, the design can work at power levels where coaxial options would not work.
Q: How does the temperature affect how well the circulator works?
A: The magnetic bias gets weaker and the device stops acting in a non-reciprocal way when the ferrite temperature gets close to its Curie point. This is taken care of by ADM with temperature-compensated magnets and, in high-power units where needed, active liquid cooling.
Q: Can a product be tuned after it has been set up?
A: Standard units are tuned at the factory and aren't meant to be adjusted in the field. Some high-power units have external adjusting screws or capacitive stubs that let you make small VSWR adjustments at certain frequencies. An engineer must be trained to do this.
Q: How wide of a range can a product cover?
A: The ferrite junction works best in a certain sub-band. Standard units cover a fractional bandwidth of 5% to 20%. There are wideband models, and the performance trade-offs in isolation or insertion loss rely on the design.
Q: What will happen if the mirrored power on the third port is higher than the load rating?
A: Up to its rated limit, the matched termination can take in reflected power. If the overload lasts for a long time, the termination may fail. The ferrite may lose its magnetic properties if the circulator is heated past its limits. This can cause the isolation to fail.
Q: Does the product react to magnetic fields outside of it?
A: Yes. Strong fields from close circulators or ferromagnetic structures can mess up the internal magnets. To keep up the performance that was agreed upon, there must be enough physical spacing and shielding.
