Waveguide Adapter

Name: Waveguide Adapter
SKU: N/A

Waveguide adapter is a key RF component that connects different types of waveguides, waveguides with coaxial cables or other RF devices. It plays a core role in RF microwave systems in matching impedance, converting interfaces, and ensuring efficient signal transmission. It is widely used in communication, radar, aerospace and other fields.

Send Inquiry

Product Description

Product Introduction

Waveguide adapter, as an important adapter component in the RF link, is mainly used to solve the interface incompatibility problems between waveguides of different specifications and between waveguides and other RF devices. Through precise structural design and material selection, it achieves low-loss signal conversion between different transmission media, ensuring the overall performance stability of the RF system. According to different interface types, common waveguide adapters include categories such as waveguide-waveguide adapters and waveguide-coaxial adapters.

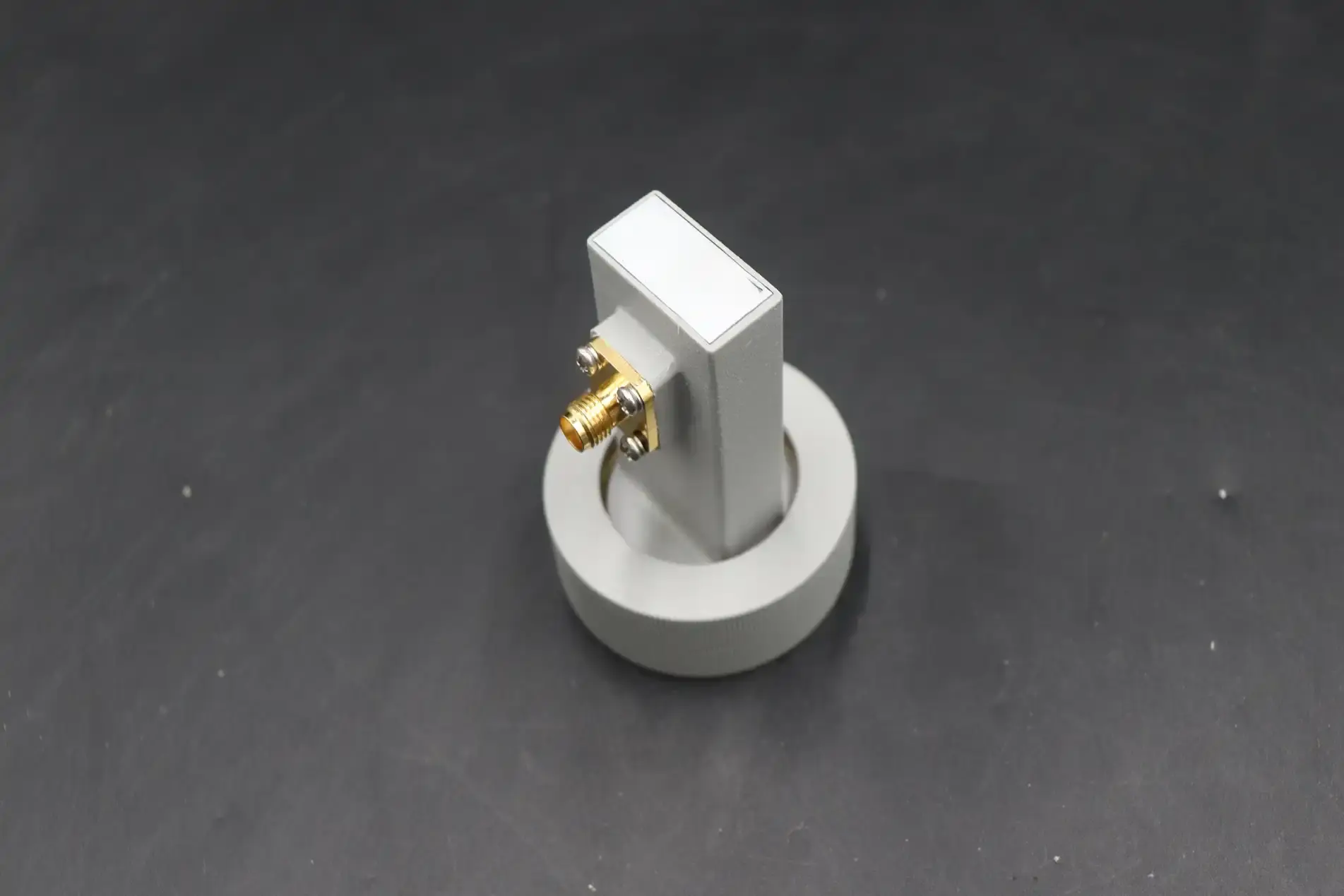

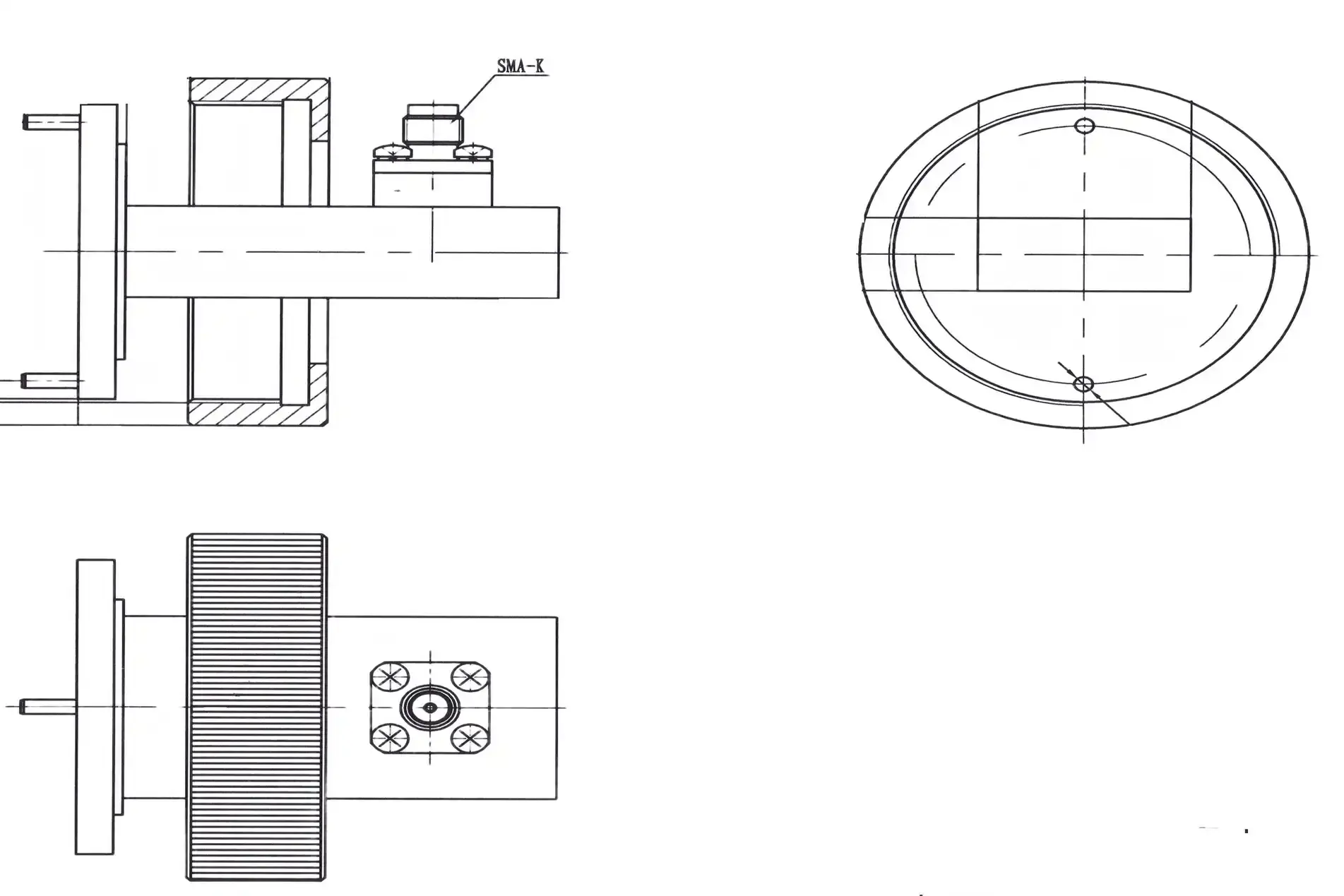

WG Adapter (1) WG Adapter (2)

Product Specifications

Parameters	Details
Waveguide type	Standard rectangular waveguides, circular waveguides, and specially customized waveguides
Insertion loss	≤0.1dB
VSWR	1.1 to 1.5
Material	Brass、Aluminum alloy
Operating temperature	-40℃ to +85℃

Product Benefits

Low-loss transmission: The waveguide adapter adopts an optimized structural design to minimize insertion loss during signal transmission and ensure signal integrity.
High compatibility: Compatible with multiple standard waveguide and RF device interfaces, it can be connected without additional modification, demonstrating strong versatility.
Stable and reliable structure: Made of high-strength metal materials, it has excellent mechanical properties and strong resistance to vibration and shock.
Easy installation: It adopts a standardized interface design and is equipped with dedicated fastening components, making installation and disassembly simple and facilitating system maintenance.
Good environmental resistance: It can adapt to complex environments such as high and low temperatures, humidity, and salt spray, and has a long service life.

Technical Features

Precise impedance matching technology: Through gradient structure and impedance transformation section design, it achieves smooth impedance transition between different transmission media and reduces the standing wave ratio.
High-precision processing technology: CNC precision processing technology is adopted to reduce signal reflection loss
Surface treatment technology: Silver/gold plating on the metal surface to reduce skin effect loss, enhance electrical conductivity and corrosion resistance.
Wideband compatibility design: Some high-end products adopt a wideband matching structure, which can maintain excellent electrical performance within a relatively wide frequency range.
Sealed design: The outdoor application model adopts a sealed structure to prevent water vapor and dust from entering the interior and affecting performance.

Product Applications

Communication system: It is used in microwave communication base stations and satellite communication ground stations to connect waveguide feeders with transmitting/receiving modules.
Radar system: In military and civilian radar equipment, it realizes the signal transfer between the radar antenna and the signal processing unit.
Aerospace: RF subsystems applied in aircraft and spacecraft, connecting various waveguide components with measurement and control equipment.
Industrial testing: In RF and microwave testing instruments, it serves as a standard adapter to connect the testing equipment with the device under test.
Medical equipment: It is used in the radio frequency transmission link of medical devices such as magnetic resonance imaging (MRI) to achieve signal transfer.

OEM

Advanced Microwave provides comprehensive OEM services for Waveguide Adapter to meet diverse customer project needs:

Customized design: Products with specific waveguide types, frequency bands, and interface specifications can be customized according to customer requirements.
Appearance customization: Supports personalized appearance customization such as customer logo printing and specific color coatings.
Mass production: Possessing the capacity for large-scale production, it can meet the bulk order demands of customers and ensure the delivery cycle.
Technical support: Provide customers with technical guidance on product selection, installation and system integration.
Quality control: Customized products and standard products are subject to the same quality inspection standards to ensure their performance meets the requirements.

FAQ

Q: How to choose the right product?

A: The selection should be made comprehensively based on the waveguide type, operating frequency band, interface specifications of the connecting devices in the actual application, and the system's requirements for insertion loss and standing wave ratio. If necessary, technical personnel can be consulted for advice.

Q: What could be the reasons for excessive insertion loss of the waveguide adapter?

A: It might be due to loose interface connection, dirt or damage on the inner wall of the waveguide, or the product selection not matching the working frequency band. You can check the connection status, clean the interface or replace it with a suitable model.

Q: What is the minimum order quantity for OEM customized waveguide Adapters?

A: The minimum order quantity varies for different customization requirements. The specific quantity can be negotiated and determined with the sales team.

Q: How long is the general service life of a waveguide adapter?

Under normal usage and maintenance conditions, the service life can reach 5 to 8 years, depending on the usage environment and frequency.
