Have you ever experienced critical signal degradation in your high-frequency microwave systems due to electromagnetic leakage at flange connections? This common yet devastating problem can compromise entire communication networks, radar systems, and aerospace applications. The Waveguide Anti-leak Gasket serves as the essential barrier between waveguide flanges, preventing transmission signal leakage that leads to system inefficiency, interference, and potential mission failure. In an era where signal integrity determines operational success, understanding how these specialized components protect your microwave infrastructure becomes not just important—it becomes mission-critical.

Understanding Waveguide Anti-leak Gasket Technology

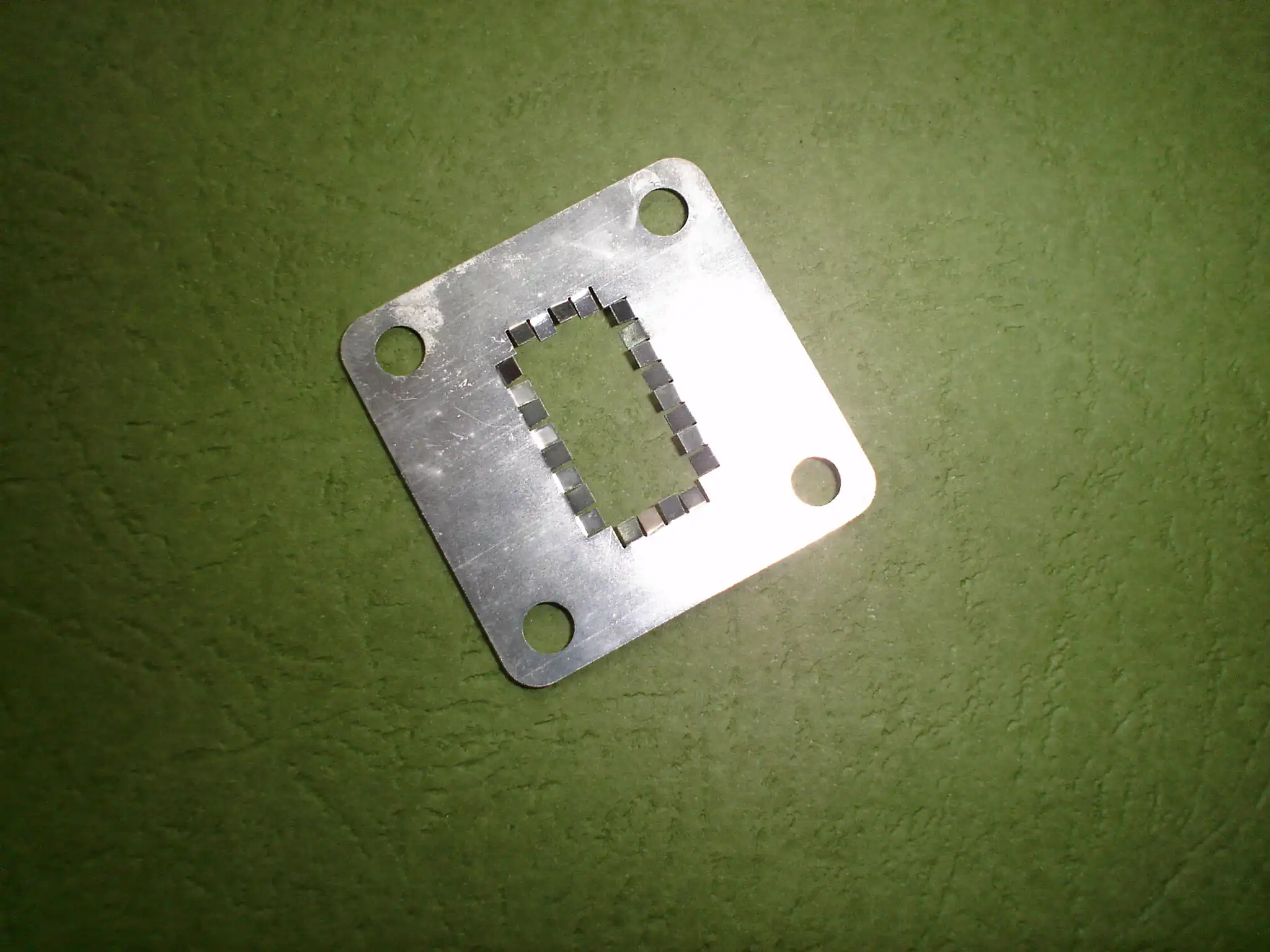

The Waveguide Anti-leak Gasket represents a sophisticated engineering solution designed to address one of the most persistent challenges in microwave transmission systems. These precision-manufactured components sit between waveguide flanges, creating an electromagnetic seal that prevents RF energy from escaping while simultaneously blocking external interference from penetrating the system. The fundamental principle behind these gaskets involves electromagnetic shielding characteristics that either redirect the propagation path of electromagnetic waves or reflect them back into the waveguide structure. When electromagnetic waves travel through waveguide systems, any imperfection in the metal-to-metal contact at flange interfaces creates opportunities for signal leakage. Even microscopic surface irregularities, dust particles, or slight misalignments can result in significant power loss and system degradation, particularly at higher frequencies where tolerances become increasingly critical. The Waveguide Anti-leak Gasket addresses these vulnerabilities through advanced material composition and precise dimensional control, ensuring consistent electrical contact across the entire flange interface.

How Waveguide Anti-leak Gaskets Prevent Signal Leakage?

The operational mechanism of a Waveguide Anti-leak Gasket centers on creating both mechanical and electrical continuity at waveguide junctions. These gaskets utilize high-grade conductive elastomer composites or metal-based materials that compress between flanges, conforming to surface irregularities while maintaining excellent electrical conductivity. The conductive particles distributed throughout the elastomer matrix create multiple electrical pathways, effectively eliminating impedance discontinuities that could cause signal reflections or mode conversions. Advanced Microwave's Waveguide Anti-leak Gasket technology employs carefully engineered materials that maintain consistent performance across extreme temperature ranges from minus fifty-five degrees Celsius to one hundred twenty-five degrees Celsius. This temperature stability proves essential for aerospace and defense applications where equipment must function reliably in harsh environmental conditions. The gaskets feature optimal thickness specifications, typically around point-zero-six-nine millimeters, providing sufficient compression to seal imperfections without introducing excessive insertion loss. The electromagnetic shielding effectiveness of these gaskets depends on several critical factors including material conductivity, compression ratio, and surface contact area. When properly installed, a Waveguide Anti-leak Gasket creates a virtually seamless electrical transition between waveguide sections, preserving signal integrity while preventing unwanted radiation. This becomes particularly important in high-power applications where even minor leakage can represent significant power loss and potential interference with adjacent systems.

Waveguide Anti-leak Gasket

Material Science Behind Effective Anti-leak Gaskets

The selection of appropriate materials for Waveguide Anti-leak Gaskets involves balancing multiple performance parameters including electrical conductivity, mechanical compliance, durability, and environmental resistance. High-quality gaskets typically incorporate silver-plated copper particles dispersed within a silicone elastomer matrix, providing excellent conductivity while maintaining the flexibility needed for effective sealing. The durometer rating, typically around eighty-five shore, ensures adequate compression without excessive deformation that could compromise long-term performance. Advanced material formulations also address concerns about outgassing in vacuum or pressurized applications, chemical resistance against environmental contaminants, and thermal stability across operational temperature ranges. The waveguide anti-leakage technology produced by Advanced Microwave incorporates expanded metal reinforcement within the elastomer structure, eliminating cold flow issues that can develop over time under constant compression. This reinforcement maintains dimensional stability while preserving the conformability essential for compensating surface irregularities. Furthermore, the manufacturing process for these specialized gaskets involves precise die-cutting or molding operations that ensure dimensional accuracy matching specific flange geometries. Whether configured for choke flanges, cover flanges, or contact flanges, each Waveguide Anti-leak Gasket must meet exacting specifications to guarantee proper fit and performance. The precision manufacturing capabilities at Advanced Microwave Technologies enable production of gaskets for frequency ranges spanning from zero-point-five gigahertz up to one hundred ten gigahertz, accommodating virtually all microwave and millimeter-wave applications.

Critical Applications Requiring Waveguide Anti-leak Gaskets

Satellite Communication Systems and Ground Stations

In satellite communication infrastructure, Waveguide Anti-leak Gaskets play an indispensable role in maintaining signal fidelity throughout the transmission path. Ground stations handling high-definition video, critical data, and voice communications cannot tolerate signal degradation caused by flange leakage. These facilities operate with extremely tight link budgets where every fraction of a decibel matters for system performance. The gaskets ensure efficient signal transfer between various waveguide components including feeds, filters, amplifiers, and antenna systems. Advanced Microwave's Waveguide Anti-leak Gasket solutions support the demanding requirements of modern satellite communications, where systems must maintain performance across wide bandwidth allocations and varying environmental conditions. The gaskets prevent electromagnetic interference that could disrupt sensitive receiving equipment while containing transmitted power within the intended propagation path. This dual protection proves essential for maintaining regulatory compliance with emission standards and ensuring reliable operations in increasingly congested electromagnetic environments. The longevity and reliability of these gaskets directly impact system uptime and maintenance requirements. Satellite ground stations often operate continuously with minimal maintenance windows, making component reliability paramount. High-quality Waveguide Anti-leak Gaskets withstand repeated thermal cycling, mechanical vibration, and environmental exposure without degradation, providing consistent performance over extended service lifetimes measured in years rather than months.

Defense and Military Radar Applications

Military surveillance and targeting radar systems represent perhaps the most demanding application environment for Waveguide Anti-leak Gaskets. These systems require absolute signal integrity to detect, track, and identify potential threats with precision and reliability. Any signal leakage not only degrades system performance but can also create electromagnetic signatures that compromise operational security. The Waveguide Anti-leak Gasket technology ensures these critical defense systems maintain peak performance while minimizing detectable emissions. Air traffic control radar installations utilize ultra-sharp beamforming capabilities that depend on pristine signal transmission throughout the waveguide network. The gaskets prevent phase distortions and amplitude variations that could blur target resolution or create false returns. Even in severe weather conditions with temperature extremes, precipitation, and wind loading, properly installed Waveguide Anti-leak Gaskets maintain consistent electrical performance, ensuring continuous situational awareness for air traffic controllers managing complex airspace. Defense applications also frequently involve ruggedized systems designed for mobile deployment or shipboard installation where mechanical vibration and shock represent significant design challenges. The Waveguide Anti-leak Gaskets must maintain sealing effectiveness despite continuous mechanical stress, requiring superior material properties and robust design. Advanced Microwave's gaskets incorporate features specifically addressing these demanding requirements, providing reliable performance in tactical environments where system failure is not an option.

Aerospace and Unmanned Aerial Vehicle Systems

Aerospace applications impose unique constraints on Waveguide Anti-leak Gasket design including strict weight limitations, extreme altitude conditions, and rapid pressure changes. Aircraft-mounted radar, navigation, and communication systems rely on these gaskets to maintain signal integrity while minimizing system mass. The gaskets must function reliably across pressure differentials ranging from sea level to high altitude, managing both the mechanical sealing challenges and electrical performance requirements simultaneously. Unmanned Aerial Vehicle systems increasingly incorporate sophisticated radar and communication payloads that demand lightweight, high-performance microwave components. The Waveguide Anti-leak Gaskets used in these applications must deliver exceptional electromagnetic sealing while contributing minimal weight to the overall system. Advanced material technologies enable gasket designs that meet these competing requirements, providing robust sealing with thickness and mass optimized for weight-sensitive platforms. Weather monitoring radar systems deployed in aviation and aerospace applications require long-term stability and minimal maintenance given their often remote or inaccessible installation locations. The Waveguide Anti-leak Gaskets in these systems must withstand continuous environmental exposure including ultraviolet radiation, temperature cycling, and atmospheric contaminants without performance degradation. Advanced Microwave's gaskets utilize materials and designs proven in demanding aerospace applications, ensuring reliable operations throughout extended service intervals.

Technical Specifications and Performance Parameters

Frequency Range and Bandwidth Capabilities

The effectiveness of a Waveguide Anti-leak Gasket varies significantly with operating frequency, making proper selection critical for system performance. Advanced Microwave's gasket technology supports an exceptional frequency range from half a gigahertz extending to one hundred ten gigahertz, encompassing virtually all practical microwave and millimeter-wave applications. This broad frequency coverage enables use in legacy communication systems operating at lower frequencies through cutting-edge fifth-generation and future sixth-generation cellular technologies utilizing millimeter-wave spectrum. At lower microwave frequencies, gasket performance primarily concerns mechanical sealing and basic electrical continuity. However, as frequencies increase into the millimeter-wave region, tolerances become increasingly critical. Surface finish, dimensional accuracy, and material uniformity all significantly impact insertion loss and voltage standing wave ratio at these higher frequencies. The precision manufacturing processes employed by Advanced Microwave ensure consistent performance across the entire supported frequency range, with particular attention to the demanding requirements of millimeter-wave applications. Waveguide Anti-leak Gasket designs must also accommodate the specific mode structures associated with different waveguide sizes and frequency bands. Whether configured for X-band, Ku-band, Ka-band, or W-band applications, each gasket variant incorporates dimensional specifications optimized for the corresponding waveguide geometry. This attention to frequency-specific design ensures minimal discontinuity at the flange interface, preserving signal quality throughout the transmission path.

Installation Requirements and Best Practices

Proper installation of Waveguide Anti-leak Gaskets proves just as critical as component quality for achieving optimal system performance. The installation process begins with careful alignment of mating flanges to ensure flush, parallel contact without angular misalignment. Even slight tilt between flange faces can create pressure concentration points that compromise sealing effectiveness and potentially damage the gasket. Advanced Microwave provides detailed installation guidelines ensuring customers achieve reliable results consistently. Surface preparation represents another crucial installation parameter. Flange faces must be thoroughly cleaned to remove dust, metal particles, oxidation, and contaminants that could prevent intimate contact with the Waveguide Anti-leak Gasket. A clean, smooth flange surface allows the gasket to conform properly, maximizing contact area and ensuring consistent electrical performance. Some applications benefit from applying a thin layer of specialized silicone grease to enhance sealing, though this must be done judiciously to avoid introducing contaminants into the waveguide. Bolt torque specifications require careful attention during installation. Insufficient torque fails to compress the gasket adequately, leaving gaps that permit signal leakage. Excessive torque can permanently deform the gasket or create stress concentrations in the flange material. Following manufacturer specifications for torque values and tightening sequence ensures uniform compression across the entire flange interface. The Waveguide Anti-leak Gasket design incorporates appropriate compression characteristics that provide clear tactile feedback during installation, helping technicians achieve proper seating without specialized tooling.

Advantages of Advanced Microwave's Waveguide Anti-leak Gasket Solutions

Superior Quality and International Certification

Advanced Microwave Technologies Co., Ltd maintains rigorous quality standards throughout the Waveguide Anti-leak Gasket manufacturing process, validated through multiple prestigious international certifications. The company's ISO nine-thousand-one certification demonstrates comprehensive quality management systems covering every aspect of operations from initial design through final product delivery and after-sales support. This certification ensures customers receive components meeting or exceeding industry benchmarks consistently. Environmental stewardship represents a core value at Advanced Microwave, reflected in the company's ISO fourteen-thousand-one certification. The manufacturing processes producing Waveguide Anti-leak Gaskets incorporate comprehensive environmental management systems that minimize ecological impact through waste reduction, energy conservation, and emissions control. Customers increasingly prioritize suppliers demonstrating environmental responsibility, and Advanced Microwave's certified environmental management system provides assurance of sustainable operations. The ISO forty-five-thousand-one occupational health and safety certification underscores Advanced Microwave's commitment to employee welfare. The engineers and technicians producing Waveguide Anti-leak Gaskets work in environments prioritizing safety through proper training, protective equipment, and established protocols. This focus on worker safety and well-being contributes to consistent product quality by ensuring a stable, skilled workforce dedicated to manufacturing excellence.

Waveguide Anti-leak Gasket

Customization Capabilities and OEM Services

Advanced Microwave recognizes that standard catalog products cannot address every application requirement. The company's extensive customization capabilities enable development of Waveguide Anti-leak Gasket solutions tailored to specific customer needs. Whether adapting gasket dimensions for proprietary flange designs, modifying material formulations for unique environmental conditions, or optimizing performance for specific frequency ranges, Advanced Microwave's engineering team collaborates closely with customers developing optimal solutions. The Original Equipment Manufacturer services offered by Advanced Microwave provide comprehensive support throughout the product development cycle. Initial consultation helps customers define requirements and select appropriate gasket configurations for their applications. The company's rapid prototyping capabilities enable quick turnaround of sample parts for testing and evaluation before committing to volume production. This iterative development process ensures final Waveguide Anti-leak Gasket designs meet all performance specifications while optimizing manufacturability and cost effectiveness. Technical support extends beyond initial product development, with Advanced Microwave's expert engineers providing installation guidance, troubleshooting assistance, and application-specific recommendations throughout the product lifecycle. This comprehensive support model helps customers achieve optimal system performance while minimizing development time and technical risk. The combination of high-quality products and exceptional technical support has established Advanced Microwave as a trusted partner for organizations worldwide requiring specialized waveguide components.

Advanced Testing and Measurement Facilities

The twenty-four-meter microwave darkroom facility at Advanced Microwave Technologies represents a significant technological asset supporting Waveguide Anti-leak Gasket development and validation. This state-of-the-art anechoic chamber provides controlled test environments enabling precise characterization of gasket electrical performance across the full supported frequency range. The expansive measurement distance facilitates accurate far-field observations essential for understanding gasket behavior in realistic system configurations. Central to the darkroom capabilities, the Antenna Plane Near and Far Field Measuring Recombination Chamber enables comprehensive analysis of gasket effects on signal transmission. Engineers can quantify insertion loss, return loss, and electromagnetic leakage with exceptional precision, ensuring each Waveguide Anti-leak Gasket design meets stringent performance specifications. This measurement capability proves particularly valuable during custom product development, enabling rapid iteration and optimization of gasket designs for specific customer requirements. The facility's frequency coverage extending from half a gigahertz to one hundred ten gigahertz ensures Advanced Microwave can characterize Waveguide Anti-leak Gasket performance across virtually all practical microwave and millimeter-wave applications. This comprehensive test capability, combined with the company's extensive experience in microwave technology, provides customers confidence that gasket specifications reflect verified performance rather than theoretical projections. The investment in advanced measurement infrastructure demonstrates Advanced Microwave's commitment to engineering excellence and customer satisfaction.

Conclusion

Waveguide Anti-leak Gaskets represent critical components ensuring signal integrity throughout microwave transmission systems. Proper selection and installation of these specialized gaskets prevents electromagnetic leakage while maintaining system performance across demanding applications in satellite communications, aerospace, defense, and telecommunications industries.
