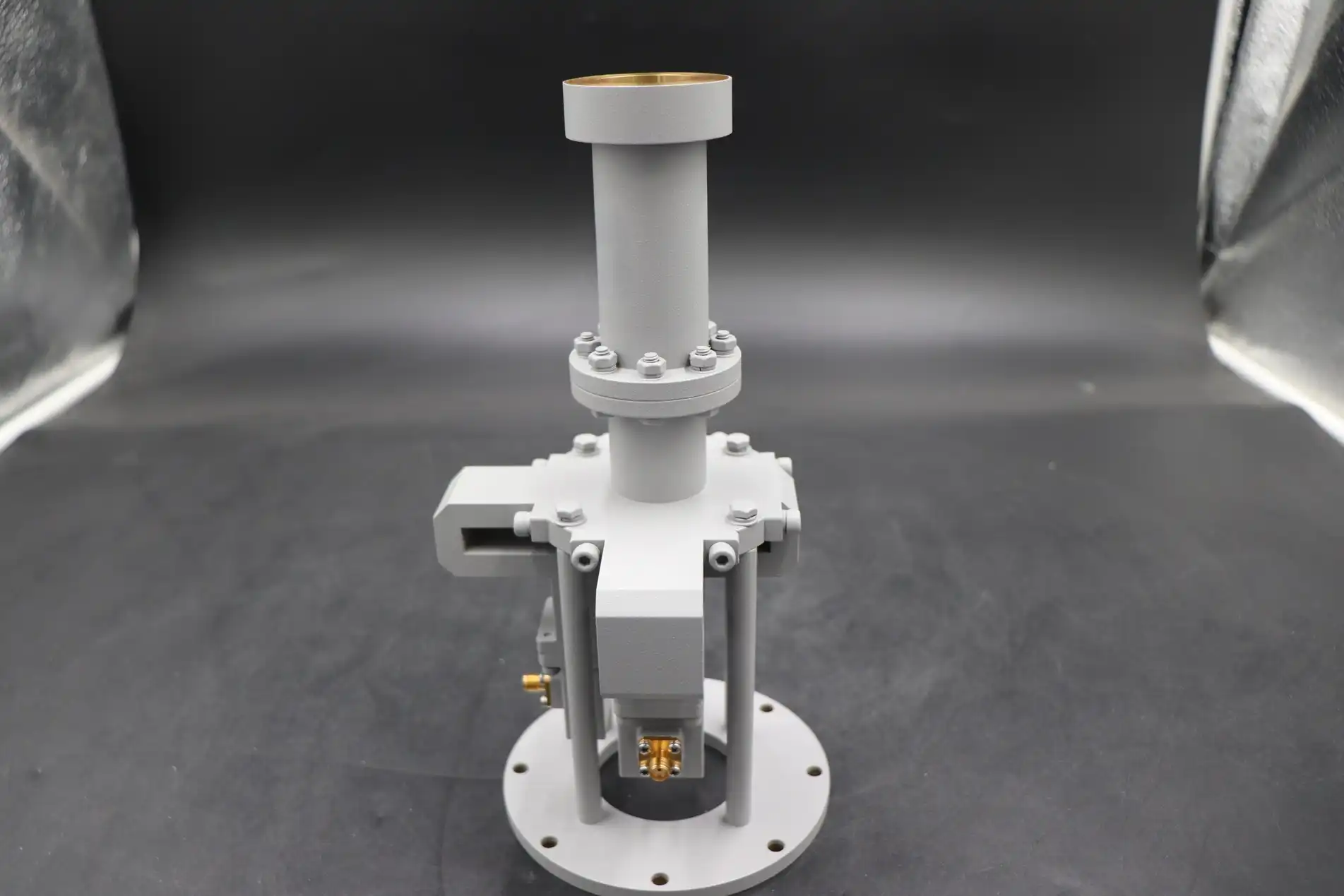

Understanding the Basics of Corrugated Horn and Multimode Horn Antennas

In the rapidly evolving landscape of microwave technology, Corrugated Horn and Multimode Horn Antennas stand as critical components that define the efficiency and reliability of modern communication systems. These sophisticated antenna designs represent the pinnacle of RF engineering, offering unparalleled performance characteristics that make them indispensable in applications ranging from satellite communications to advanced radar systems. By incorporating specialized structural features such as corrugated interior surfaces and carefully calculated mode conversion techniques, these antennas deliver exceptional signal quality, reduced interference, and broader bandwidth capabilities compared to conventional horn designs. This comprehensive exploration delves into the fundamental principles, distinctive features, and diverse applications of these high-performance Corrugated Horn and Multimode Horn Antenna systems.

Fundamental Principles of Horn Antenna Technology

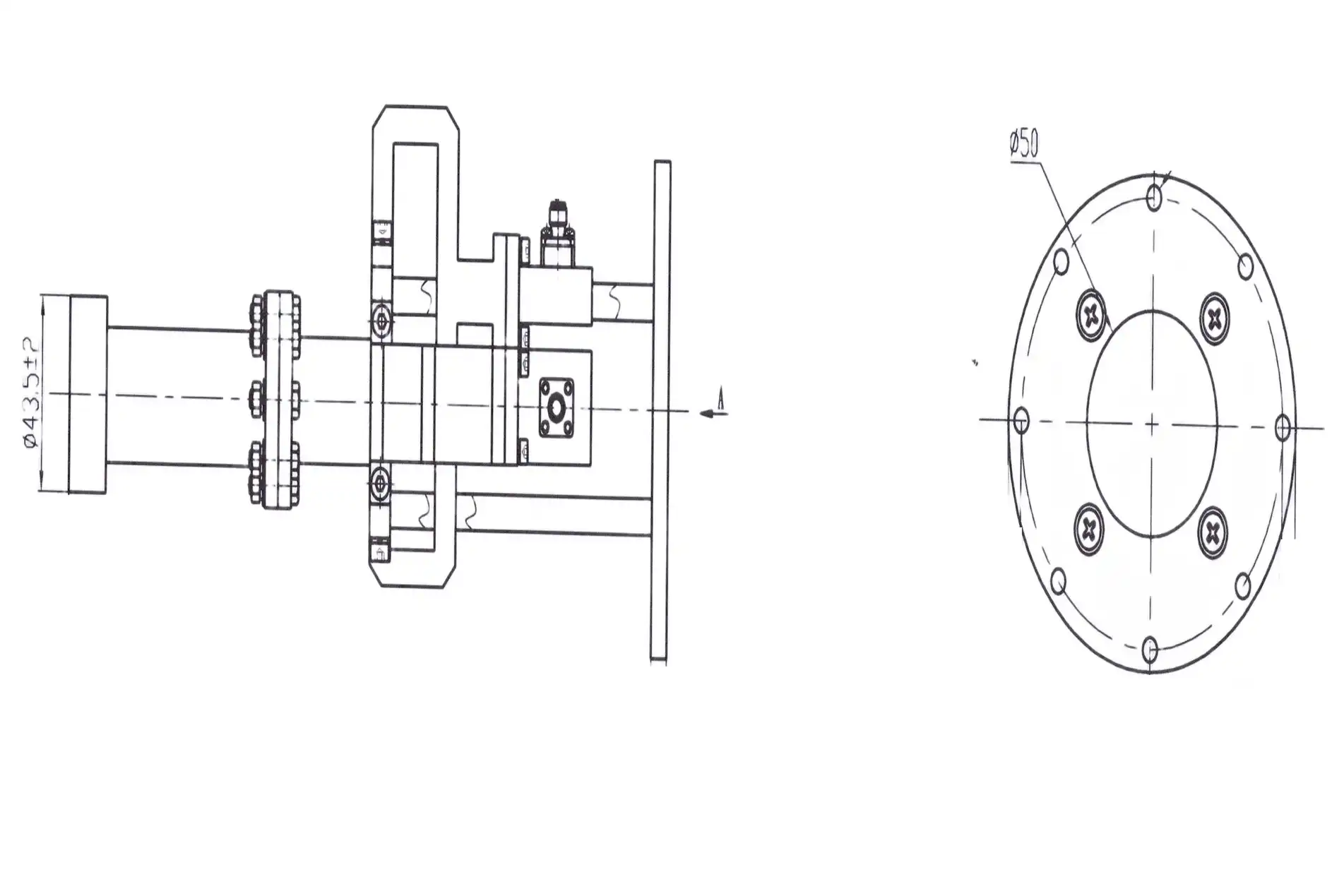

• Physical Structure and Design Considerations

The physical configuration of Corrugated Horn and Multimode Horn Antennas represents a masterful blend of electromagnetic theory and precision engineering. Unlike conventional smooth-walled horns, corrugated horn antennas feature precisely machined grooves or slots along their interior surfaces. These corrugations typically have a depth of approximately quarter-wavelength at the operating frequency and are positioned perpendicular to the direction of wave propagation. The slot depth and width are carefully engineered variables that directly influence the antenna's performance characteristics. At Advanced Microwave Technologies, our manufacturing process incorporates variable slot depth and width technology, allowing our Corrugated Horn and Multimode Horn Antenna designs to achieve exceptional VSWR (Voltage Standing Wave Ratio) values below 1.30 at low-end frequencies and even more impressive figures of under 1.06 in narrow-band applications. This attention to structural detail enables the antennas to maintain consistent performance across frequency bands approaching octave bandwidths, making them ideal for high-demand applications where signal integrity is paramount.

• Electromagnetic Wave Propagation Mechanisms

The electromagnetic principles governing Corrugated Horn and Multimode Horn Antenna operation represent a fascinating area of RF engineering. In conventional smooth-walled horns, the electromagnetic waves propagate with different phase velocities near the walls compared to the center of the waveguide, leading to aperture field distortions. Corrugated horn designs address this fundamental limitation through their distinctive slot structures, which effectively create boundary conditions that support hybrid modes of propagation. These hybrid modes—particularly the HE11 mode—exhibit remarkable symmetry in their electric field patterns, resulting in highly symmetric radiation patterns with excellent polarization purity. The Corrugated Horn and Multimode Horn Antenna designs from Advanced Microwave offer exceptional E-H lobe equalization within ±5° at the -15dB level, demonstrating the superior control over wave propagation these antennas provide. This balanced field distribution translates directly to improved gain stability across the operating bandwidth and enhanced overall performance in demanding communication environments.

• Impedance Matching and Bandwidth Optimization

Impedance matching represents one of the most critical aspects of Corrugated Horn and Multimode Horn Antenna design, directly impacting system efficiency and bandwidth capabilities. The corrugation structures serve as impedance transformers, creating a smooth transition between the waveguide feed and free space. This gradual transformation minimizes reflections, resulting in the impressive VSWR specifications that characterize Advanced Microwave's antenna solutions. The company's broadband technology implements variable corrugation parameters that systematically adjust throughout the horn's length, enabling these antennas to maintain optimal performance across frequency ranges extending up to 300GHz. This advanced impedance matching approach allows the Corrugated Horn and Multimode Horn Antenna to support near-octave bandwidths without sacrificing performance—a capability that proves invaluable in modern communication systems requiring flexible frequency operation. The superior impedance characteristics translate directly to reduced signal loss, improved system efficiency, and ultimately more reliable communication links in critical applications.

Advanced Features and Performance Characteristics

• High Gain and Directivity Achievements

The superior gain performance of Corrugated Horn and Multimode Horn Antennas represents one of their most significant advantages in communication systems. Advanced Microwave Technologies' antenna solutions deliver impressive gain specifications ranging from 20 dB to 40 dB, depending on the specific configuration and frequency range. This exceptional gain capability results from the antennas' ability to create highly directive beam patterns with minimal side lobes, effectively concentrating transmission energy in the desired direction. The Corrugated Horn and Multimode Horn Antenna designs achieve this performance through their specialized corrugated structures, which support optimal mode propagation and create highly uniform aperture field distributions. In practical applications, this translates to stronger signal reception over greater distances, enhanced communication quality in challenging environments, and improved overall system performance. For applications requiring specific gain characteristics, Advanced Microwave can customize antenna designs to provide precisely tailored performance specifications while maintaining the core benefits inherent to these sophisticated horn technologies.

• Polarization Control and Cross-Polarization Suppression

Polarization performance represents a critical differentiator for Corrugated Horn and Multimode Horn Antennas in modern communication systems. The corrugated structure fundamentally alters the boundary conditions for electromagnetic waves, supporting hybrid modes that exhibit remarkably consistent polarization characteristics across the antenna aperture. Advanced Microwave's antenna solutions offer both linear and circular polarization options to accommodate diverse application requirements. The superior polarization purity achieved through these designs—particularly the excellent cross-polarization suppression—enables more efficient use of the electromagnetic spectrum through polarization diversity techniques. In satellite communication applications, where polarization integrity directly impacts link quality, these Corrugated Horn and Multimode Horn Antenna characteristics prove invaluable. The antennas maintain stable polarization performance across their operating bandwidth, with minimal polarization distortion even at wide angles from boresight. This consistency allows for more reliable communication links and enhanced system capacity through polarization multiplexing techniques in advanced applications.

• Thermal Stability and Environmental Durability

The practical deployment of Corrugated Horn and Multimode Horn Antennas in real-world environments demands exceptional durability and performance stability across varying conditions. Advanced Microwave Technologies addresses these requirements through materials selection and engineering design choices that ensure reliable operation across a temperature range from -40°C to +85°C. The company's antennas utilize premium materials including aluminum, brass, and copper, each selected for specific performance characteristics and environmental suitability. The corrugated structure itself contributes to thermal stability, as the precise spacing and dimensions of the corrugations remain relatively stable across temperature variations compared to some alternative designs. This dimensional stability translates directly to consistent electrical performance in fluctuating environmental conditions. For applications facing particularly harsh environments, Advanced Microwave can implement additional protective measures and material treatments to enhance the durability of their Corrugated Horn and Multimode Horn Antenna solutions, ensuring reliable long-term operation in the most demanding deployment scenarios.

Applications and Integration Considerations

• Satellite Communication Systems Implementation

Satellite communication systems represent one of the most demanding applications for antenna technology, requiring exceptional performance across multiple parameters simultaneously. Corrugated Horn and Multimode Horn Antennas excel in these environments due to their superior bandwidth, gain stability, and polarization purity. Advanced Microwave's antenna solutions support critical satellite communications across C-Band and other frequency ranges, providing the precise beam characteristics needed for both uplink and downlink operations. The antennas' excellent VSWR specifications—less than 1.30 at low-end frequencies and approaching 1.06 in narrow-band applications—ensure efficient power transfer and minimal signal reflections in these high-stakes communication links. The precision E-H lobe equalization (within ±5° at -15dB) delivered by these Corrugated Horn and Multimode Horn Antenna designs enables accurate pointing and tracking for optimal satellite connectivity. For offset feed antenna configurations, the excellent pattern symmetry and polarization characteristics prove particularly valuable, supporting enhanced system performance. Advanced Microwave's expertise in satellite communication applications allows them to customize antenna specifications precisely to the unique requirements of each satellite system, optimizing performance for specific orbital parameters and coverage requirements.

• Radar and Defense System Applications

The demanding requirements of radar and defense systems find an ideal solution in the performance characteristics of Corrugated Horn and Multimode Horn Antennas. These applications require exceptional gain stability, precise pattern control, and reliable operation across varying environmental conditions. Advanced Microwave Technologies' antenna solutions support frequency ranges from 1 GHz to 110 GHz, with power handling capabilities up to 100 Watts, making them suitable for diverse radar configurations from short-range tactical systems to long-range surveillance applications. The superior pattern control afforded by the corrugated structure—particularly the excellent sidelobe suppression and cross-polarization performance—translates directly to improved target detection capabilities and reduced vulnerability to jamming in defense applications. The Corrugated Horn and Multimode Horn Antenna designs maintain consistent performance across their operating bandwidth, supporting frequency-agile radar systems and electronic protection measures. Advanced Microwave's manufacturing capabilities include specialized defense-grade quality control processes that ensure these critical components meet or exceed the stringent reliability requirements inherent to military and security applications, providing consistent performance in mission-critical scenarios.

• Research and Development Integration Challenges

The integration of Corrugated Horn and Multimode Horn Antennas into research and development environments presents unique challenges and opportunities for system designers. Advanced Microwave Technologies supports these specialized applications with both standard product offerings and customized solutions tailored to specific research requirements. The company's extensive experience with frequencies up to 300GHz enables support for cutting-edge millimeter-wave research, where precise antenna characteristics directly impact experimental outcomes. Researchers benefit from Advanced Microwave's ability to produce Corrugated Horn and Multimode Horn Antenna designs with tightly controlled specifications, ensuring repeatable results across experimental setups. The company's rapid prototyping capabilities prove particularly valuable in research environments, where iterative design approaches often necessitate multiple antenna variants to optimize system performance. Advanced Microwave's technical support team includes specialists experienced in research applications, allowing them to provide guidance on integration challenges specific to experimental setups. This collaborative approach ensures that research teams can fully leverage the performance advantages of Corrugated Horn and Multimode Horn Antenna technology while addressing the unique constraints of their specific investigations.

Conclusion

Corrugated Horn and Multimode Horn Antennas represent essential technology for modern communication systems, offering superior performance through innovative electromagnetic design. Advanced Microwave Technologies delivers these high-performance solutions with customizable specifications to meet diverse application requirements across satellite communications, defense, and research sectors. Our comprehensive approach combines precision manufacturing with expert technical support.

Looking to enhance your system's performance with premium Corrugated Horn and Multimode Horn Antennas? Advanced Microwave Technologies offers unmatched advantages through our perfect supply chain system, rich production experience, and professional R&D team. With ISO:9001:2008 certification and RoHS compliance, we deliver fast, cost-effective solutions with strict quality control and exceptional after-sales support. Contact our expert team today to discuss your specific requirements and discover how our customized antenna solutions can transform your communication systems. Email us at sales@admicrowave.com to begin the conversation.
