Get Reliable Calibration and VSWR Performance with Sliding Shorts
In today's demanding microwave testing environment, engineers face critical challenges when achieving precise calibration and optimal VSWR performance in their measurement systems. Whether you're troubleshooting unexplained reflection losses in satellite communications, struggling with phase accuracy in radar systems, or dealing with impedance mismatches in high-frequency applications, the solution lies in utilizing high-quality Waveguide Sliding Short components. These precision instruments provide the reliable calibration standards and exceptional VSWR performance essential for maintaining signal integrity across frequencies ranging from 1.72 GHz to 110 GHz. Understanding how to implement Waveguide Sliding Short technology effectively can transform your measurement accuracy and system performance, addressing the pain points that plague modern microwave engineers daily.
Understanding Waveguide Sliding Short Technology for Precision Calibration
Essential Components and Operating Principles

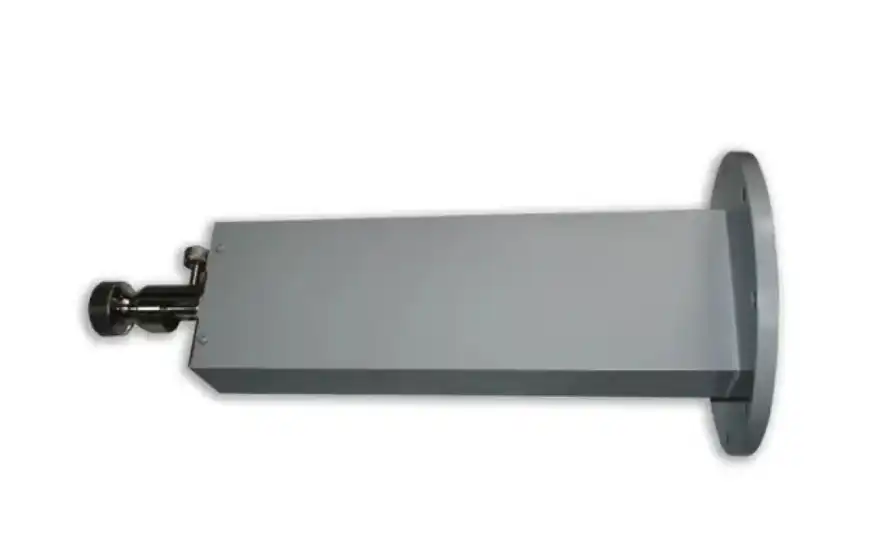

A Waveguide Sliding Short represents a fundamental calibration component in microwave measurement systems, designed to provide precise control over reflection characteristics within waveguide structures. The device functions by creating a movable short circuit that can be positioned at various distances from the measurement plane, enabling accurate impedance and phase measurements across the entire frequency spectrum. Advanced Microwave Technologies Co., Ltd. has engineered these components with exceptional precision, utilizing high-grade materials such as brass and aluminum to ensure consistent performance under varying environmental conditions. The sliding mechanism allows for fine-tuned adjustments, typically offering positioning accuracy within fractions of a wavelength, which is critical for applications requiring precise VSWR measurements and calibration standards. The operational principle relies on the creation of a perfect short circuit at the adjustable position, generating predictable reflection coefficients that serve as reference standards during network analyzer calibration procedures. Each Waveguide Sliding Short incorporates precision-machined surfaces and high-conductivity materials to minimize insertion losses and maintain signal integrity throughout the measurement process. The frequency range capabilities extending from 1.72 GHz to 110 GHz accommodate both legacy systems operating at lower frequencies and cutting-edge applications requiring millimeter-wave performance, making these components versatile solutions for diverse measurement requirements.
Advanced Design Features for Maximum Performance
Modern Waveguide Sliding Short designs incorporate sophisticated engineering features that enhance measurement accuracy and operational reliability. The adjustable sliding mechanism utilizes precision threads or micrometer-driven systems that enable extremely fine positional control, essential for achieving the high-resolution phase measurements required in advanced microwave applications. Advanced Microwave Technologies Co., Ltd. implements proprietary manufacturing techniques that ensure consistent electrical characteristics across the entire adjustment range, eliminating the variations that can compromise measurement accuracy in lower-quality components. The construction materials selection plays a crucial role in achieving superior VSWR performance, with high-conductivity metals providing minimal reflection losses and excellent thermal stability. Environmental sealing techniques protect internal components from moisture and contamination, ensuring reliable operation in challenging field conditions commonly encountered in aerospace and defense applications. Quality control procedures include comprehensive testing at multiple frequency points and adjustment positions, verifying that each Waveguide Sliding Short meets stringent performance specifications before shipment to customers worldwide.
Achieving Superior VSWR Performance in Microwave Systems
Optimizing Return Loss Characteristics
VSWR performance represents a critical parameter in microwave system design, directly impacting signal transmission efficiency and measurement accuracy. Waveguide Sliding Short components provide exceptional VSWR characteristics, typically achieving ratios of 60:1 minimum to create highly reflective short circuits that serve as calibration references. The precise positioning capability enables engineers to optimize standing wave patterns within measurement setups, minimizing uncertainties that can affect calibration accuracy and system performance. Advanced manufacturing techniques ensure consistent reflection coefficients across the entire frequency range, providing reliable reference standards for network analyzer calibration procedures. The relationship between sliding short position and VSWR performance enables sophisticated measurement techniques, including time-domain reflectometry and impedance transformation calculations. Engineers can utilize these capabilities to characterize complex microwave components, identify impedance mismatches, and optimize system performance through precise tuning procedures. Advanced Microwave Technologies Co., Ltd. provides comprehensive technical documentation and application guidance to help customers maximize the VSWR performance benefits available through proper Waveguide Sliding Short implementation in their measurement systems.
Calibration Standards and Measurement Accuracy
Precision calibration procedures rely heavily on the availability of accurate reference standards, with Waveguide Sliding Short components serving as essential elements in comprehensive calibration kits. The adjustable nature of these devices enables the creation of multiple calibration points within a single measurement setup, reducing equipment requirements while enhancing measurement precision. Network analyzer calibration procedures benefit significantly from the predictable reflection characteristics provided by high-quality sliding shorts, enabling accurate error correction and improved measurement uncertainty specifications. The implementation of Waveguide Sliding Short technology in calibration procedures enables advanced measurement techniques such as sliding load calibration and enhanced reflection tracking. These methods provide superior accuracy compared to traditional fixed-standard approaches, particularly important in applications requiring precise phase measurements or impedance characterization. Quality assurance procedures at Advanced Microwave Technologies Co., Ltd. include comprehensive verification testing to ensure that each Waveguide Sliding Short meets or exceeds industry standards for calibration accuracy and measurement repeatability.
Applications Across Critical Industry Sectors
Satellite Communications and Aerospace Systems
Satellite communication systems demand exceptional signal integrity and precise impedance matching to achieve reliable data transmission across vast distances. Waveguide Sliding Short components play crucial roles in system calibration, antenna testing, and performance verification procedures essential for satellite ground stations and space-based communication platforms. The ability to achieve precise VSWR measurements enables engineers to optimize feed network designs, minimize signal losses, and ensure reliable communication links under challenging environmental conditions. Advanced Microwave Technologies Co., Ltd. has developed specialized variants of Waveguide Sliding Short technology specifically optimized for aerospace applications, incorporating enhanced environmental sealing and materials selection to withstand extreme temperature variations and vibration conditions. The demanding requirements of space-qualified systems necessitate components that maintain consistent performance throughout extended operational lifetimes while providing exceptional measurement accuracy. Waveguide Sliding Short technology enables comprehensive testing and verification procedures that ensure satellite communication systems meet stringent performance specifications before deployment. Applications include antenna pattern measurements, feed network characterization, and amplifier performance testing, all of which require the precise calibration capabilities provided by high-quality sliding short components.
Defense and Military Communication Systems
Military communication systems operate in challenging environments while maintaining requirements for secure, reliable data transmission across diverse frequency ranges. Waveguide Sliding Short components enable precise calibration of radar systems, electronic warfare equipment, and communication networks that form the backbone of modern defense capabilities. The ability to achieve accurate VSWR measurements across frequencies extending to 110 GHz supports advanced military applications including target identification systems, surveillance radar, and secure communication networks. Advanced manufacturing techniques ensure that these critical components maintain performance specifications under extreme environmental conditions commonly encountered in military deployments. The integration of Waveguide Sliding Short technology in defense applications enables sophisticated measurement capabilities essential for system optimization and performance verification. Engineers utilize these components for precise impedance matching in phased array systems, calibration of electronic countermeasure equipment, and verification of communication system performance under operational conditions. Quality assurance procedures include comprehensive environmental testing to ensure reliable operation across temperature ranges, humidity conditions, and vibration levels specified for military applications.
Technical Specifications and Performance Parameters
Frequency Range and Compatibility Standards
Advanced Microwave Technologies Co., Ltd. manufactures Waveguide Sliding Short components covering an extensive frequency range from 1.72 GHz to 110 GHz across 18 standard waveguide bands, ensuring compatibility with diverse measurement systems and applications. Waveguide sizes ranging from WR-10 to WR-430 accommodate both millimeter-wave applications requiring compact form factors and lower-frequency systems utilizing larger waveguide structures. The comprehensive coverage enables engineers to standardize on a single supplier for calibration components across multiple frequency ranges, simplifying procurement procedures and ensuring consistent performance characteristics. Flange options include UG square/round cover configurations and CPR-style flanges, providing compatibility with various measurement system interfaces and enabling seamless integration into existing laboratory setups. Manufacturing precision ensures that all flange dimensions meet industry standards, eliminating compatibility issues that can compromise measurement accuracy or create system integration challenges. Each Waveguide Sliding Short undergoes comprehensive dimensional verification to ensure proper mating with standard waveguide components and measurement equipment.
Precision Engineering and Quality Assurance
The manufacturing processes employed by Advanced Microwave Technologies Co., Ltd. incorporate advanced precision machining techniques and comprehensive quality control procedures to ensure consistent performance across all Waveguide Sliding Short products. ISO 9001:2015 certification demonstrates commitment to quality management systems that maintain product consistency and reliability. Environmental compliance through RoHS certification ensures that manufacturing processes meet stringent environmental standards while delivering components suitable for global deployment across diverse applications. Materials selection focuses on high-conductivity metals that provide optimal electrical performance while maintaining mechanical stability throughout extended operational lifetimes. Surface finishing techniques minimize insertion losses and ensure consistent reflection characteristics across the entire adjustment range. Quality verification procedures include comprehensive electrical testing at multiple frequency points and adjustment positions, ensuring that each component meets performance specifications before shipment to customers worldwide.
Customization and OEM Services
Tailored Solutions for Specific Requirements
Advanced Microwave Technologies Co., Ltd. recognizes that diverse applications often require customized specifications beyond standard catalog offerings. The comprehensive OEM services program enables customers to obtain Waveguide Sliding Short components optimized for specific frequency ranges, environmental conditions, or mechanical requirements. Engineering consultation services help customers identify optimal specifications for their applications, ensuring that customized components provide maximum performance benefits while meeting project timeline and budget constraints. Customization capabilities include frequency range optimization, materials selection for specific environmental conditions, and mechanical modifications to accommodate unique mounting requirements. The experienced engineering team works closely with customers throughout the design process, utilizing advanced simulation tools and prototype testing to verify performance characteristics before full-scale production. This collaborative approach ensures that customized Waveguide Sliding Short components meet or exceed customer expectations while maintaining the high-quality standards associated with Advanced Microwave Technologies Co., Ltd. products.
Rapid Prototyping and Technical Support
The prototyping capabilities at Advanced Microwave Technologies Co., Ltd. enable rapid development of customized Waveguide Sliding Short solutions, supporting customer evaluation and testing requirements with minimal lead times. Experienced engineers provide comprehensive technical support throughout the development process, including performance simulation, mechanical design optimization, and testing protocol development. This comprehensive approach ensures that prototype components accurately represent final production specifications while enabling customers to verify performance characteristics before committing to volume production. Technical support services extend beyond initial product development to include installation guidance, troubleshooting assistance, and performance optimization recommendations. The global customer base benefits from responsive support services that address technical questions and provide application guidance across diverse time zones and geographic regions. Documentation packages include detailed specifications, application notes, and calibration procedures that enable customers to maximize the performance benefits available through proper Waveguide Sliding Short implementation in their measurement systems.
Conclusion
Waveguide Sliding Short technology provides essential capabilities for achieving reliable calibration and superior VSWR performance in modern microwave measurement systems. The combination of precision engineering, comprehensive frequency coverage, and customizable specifications enables engineers to address the most demanding measurement requirements across satellite communications, defense, aerospace, and commercial applications while maintaining the accuracy and reliability essential for mission-critical systems.
Cooperate with Advanced Microwave Technologies Co., Ltd.
Advanced Microwave Technologies Co., Ltd. stands as your premier China Waveguide Sliding Short manufacturer, combining over 20 years of microwave expertise with state-of-the-art manufacturing capabilities. As a leading China Waveguide Sliding Short supplier, we leverage our advanced 24m Microwave Darkroom and comprehensive testing facilities to deliver High Quality Waveguide Sliding Short components that exceed industry standards. Our position as a trusted China Waveguide Sliding Short factory enables competitive Waveguide Sliding Short price points while maintaining exceptional quality standards. Whether you need standard configurations or customized solutions, our Waveguide Sliding Short for sale inventory and China Waveguide Sliding Short wholesale programs provide flexible procurement options. Contact craig@admicrowave.com for immediate pricing and technical consultation. Save this post for future reference and reach out whenever you need reliable microwave solutions!
FAQ
Q: What frequency range do your Waveguide Sliding Short components cover?
A: Our Waveguide Sliding Short components operate from 1.72 GHz to 110 GHz across 18 waveguide bands, supporting both legacy and advanced applications.
Q: What VSWR performance can I expect from your sliding shorts?
A: Our Waveguide Sliding Short components achieve VSWR ratios of 60:1 minimum, providing excellent reflection characteristics for calibration applications.
Q: Do you offer customized Waveguide Sliding Short solutions?
A: Yes, we provide comprehensive OEM services including frequency optimization, materials selection, and mechanical modifications to meet specific requirements.
Q: What quality certifications do your Waveguide Sliding Short products have?
A: All products are ISO 9001:2015 certified and RoHS compliant, ensuring consistent quality and environmental compliance standards.
References
1. "Microwave Engineering Fundamentals and Applications" - Pozar, David M., emphasizing waveguide component design and VSWR measurement techniques
2. "Handbook of Microwave Component Measurements" - Dunsmore, Joel P., covering calibration standards and sliding short applications
3. "RF and Microwave Measurements" - Institute of Electrical and Electronics Engineers, detailing precision measurement techniques and calibration procedures
4. "Waveguide Components for Antenna Feed Systems" - Olver, A.D., addressing feed network design and sliding short implementation in antenna systems
