What are the typical specifications and performance metrics for a Magic Hybrid Tee?
When designing sophisticated microwave systems, engineers require precise power distribution and phase control components. The Magic Hybrid Tee, also known as a "Magic-T," stands as one of the most versatile four-port couplers available in microwave engineering. This critical waveguide component provides excellent isolation, matching, and balance characteristics across its operating frequency range. The typical specifications and performance metrics for a Magic Hybrid Tee include insertion loss (typically 0.2-0.5 dB), VSWR (typically 1.2:1), isolation (20-40 dB), amplitude balance (±0.5 dB), and phase balance (±5°). These parameters ensure reliable performance in applications ranging from satellite communications to radar systems, where precision power division and signal combination are essential for system integrity.

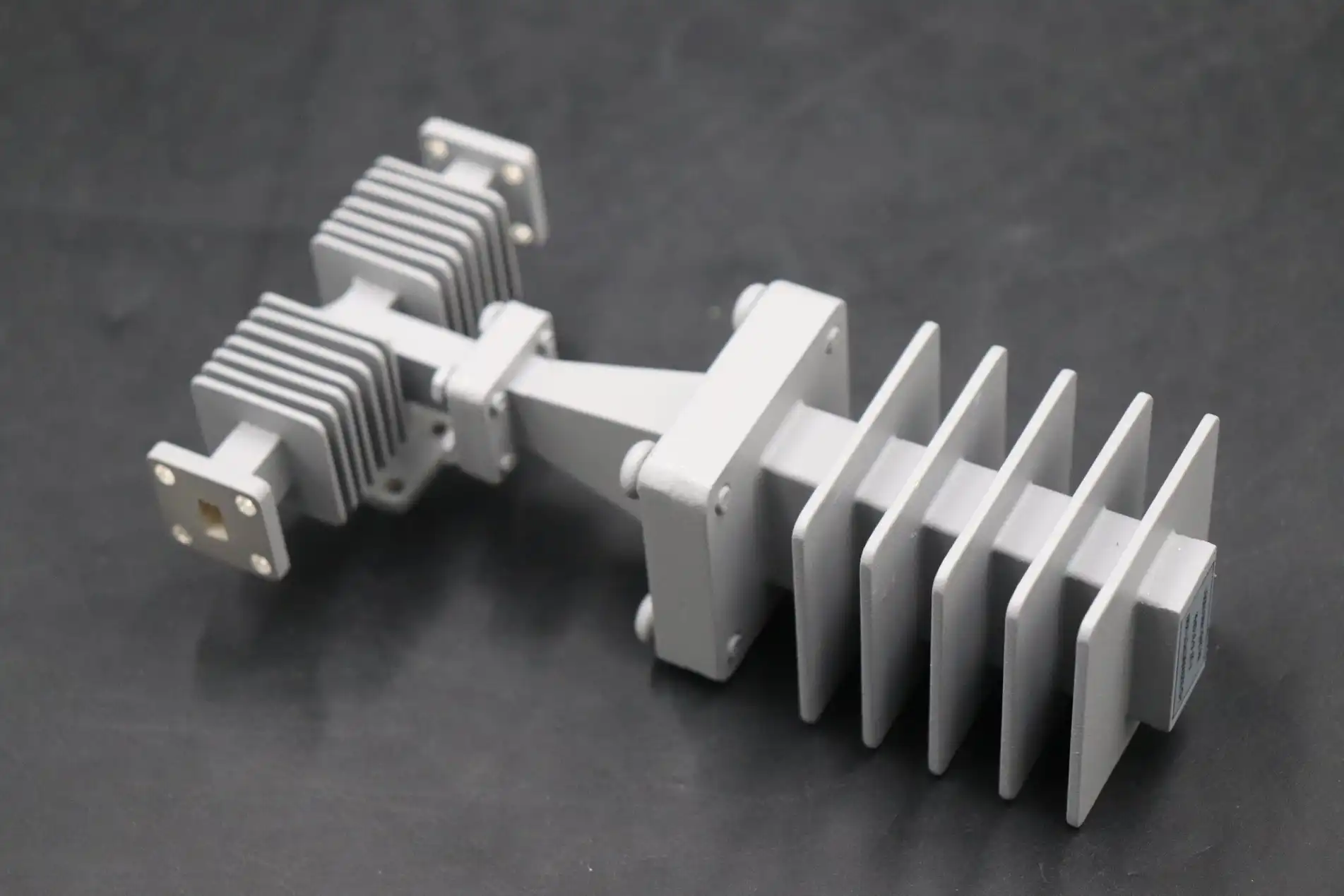

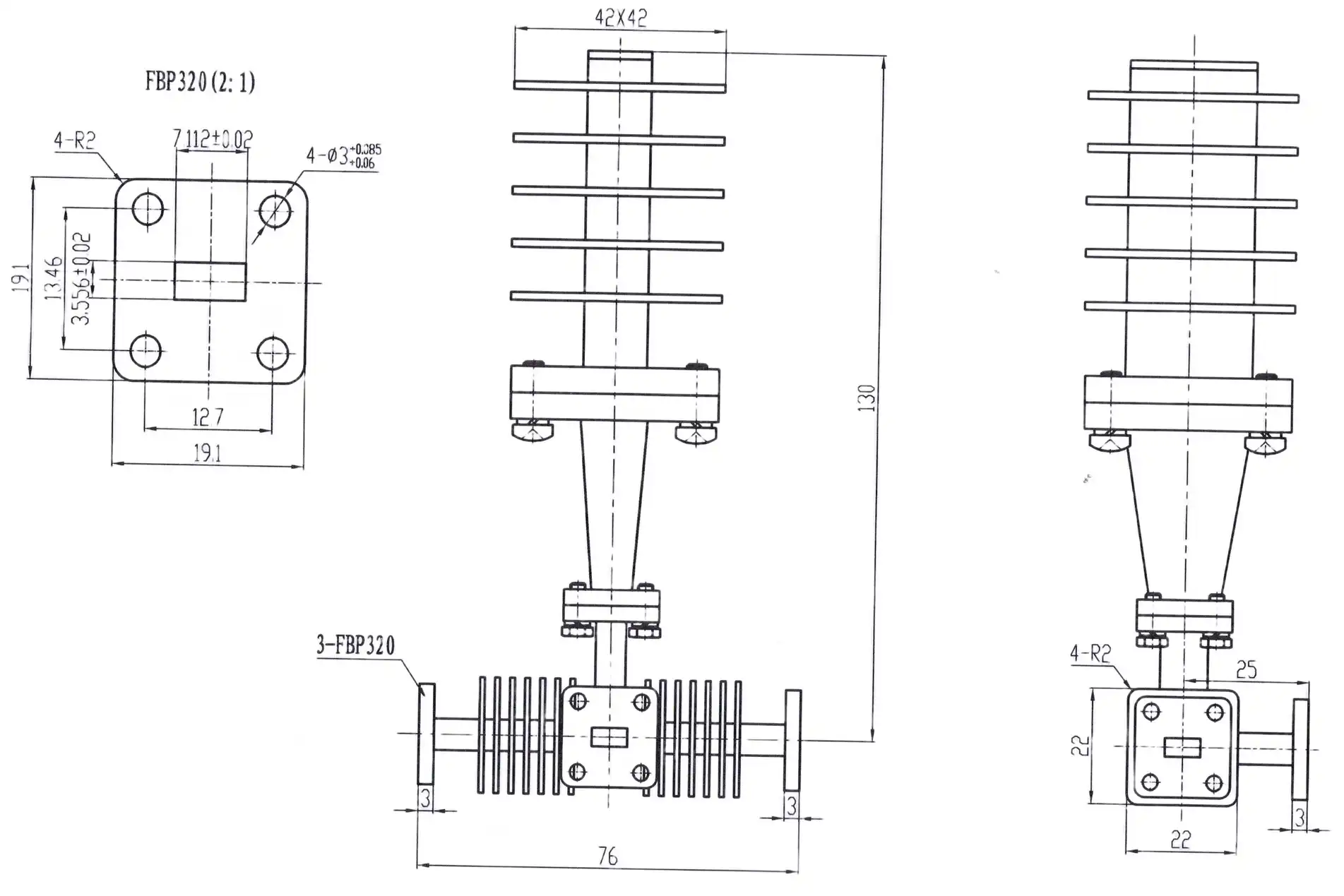

Key Specifications of High-Performance Magic Hybrid Tees
Insertion Loss Metrics
The insertion loss of a Magic Hybrid Tee represents the power loss experienced when a signal passes through the device. In high-quality Magic Hybrid Tees, this specification is typically kept as low as 0.2 dB, ensuring maximum power transmission efficiency. This low insertion loss is achieved through precision manufacturing techniques and meticulous quality control. Advanced Microwave Technologies' Magic Hybrid Tees implement sophisticated design strategies to minimize resistive losses, dielectric losses, and radiation losses that typically contribute to insertion loss. For applications in satellite communications and radar systems, where signal integrity is paramount, the minimal insertion loss of a Magic Hybrid Tee translates directly to improved system performance and increased operational range. Engineers must consider this specification carefully, as even a small difference in insertion loss can have significant implications for overall system performance, particularly in cascaded systems where losses accumulate across multiple components.
VSWR and Return Loss Performance
Voltage Standing Wave Ratio (VSWR) and return loss are critical metrics that indicate how well the Magic Hybrid Tee is matched to the characteristic impedance of the system. Premium Magic Hybrid Tees maintain a VSWR of 1.2:1 or better across their specified frequency range. This exceptional impedance matching minimizes signal reflections, which can cause interference and degrade system performance. Advanced Microwave Technologies' Magic Hybrid Tees undergo rigorous testing to ensure consistent VSWR performance, with typical return loss values exceeding 20 dB. This high-level performance is achieved through careful design of the junction geometry and precise manufacturing tolerances. For engineers designing sensitive systems, such as phased array radars or satellite communication uplinks, these specifications ensure that the Magic Hybrid Tee will not introduce impedance mismatches that could compromise overall system efficiency or create unwanted signal artifacts.
Isolation Performance Characteristics
Isolation between ports is a fundamental performance metric for a Magic Hybrid Tee, particularly between the E-plane (port 4) and H-plane (port 2) ports. Superior Magic Hybrid Tees deliver isolation values of 20-40 dB, with premium models achieving isolation better than 30 dB. This high isolation is a function of the symmetry which is carefully balanced on each unit manufactured by Advanced Microwave Technologies. The exceptional isolation between ports ensures that signals intended for one output port do not leak to other ports, maintaining signal integrity throughout the system. In applications such as monopulse radar systems, where precise signal differentiation is critical, this isolation performance directly impacts the system's ability to accurately determine target location. The isolation characteristics of a Magic Hybrid Tee are particularly important in systems where multiple signal paths must remain independent to prevent cross-talk and interference that could corrupt sensitive measurements or communications.
Performance Metrics Across Operating Frequencies
Bandwidth and Frequency Range Capabilities
The usable frequency range of a Magic Hybrid Tee is a crucial specification that determines its versatility across different applications. Advanced Microwave Technologies produces Magic Hybrid Tees that support frequencies from 1 GHz to 110 GHz, catering to a diverse range of high-frequency applications. This broad frequency capability is achieved through precise manufacturing techniques and innovative design approaches that maintain performance specifications across the entire operational band. For system designers, this wide bandwidth capability means that a single Magic Hybrid Tee can often serve multiple purposes within a complex system, reducing component count and simplifying design. The frequency range capability is typically specified as a waveguide band (e.g., WR-90 for X-band applications), with each Magic Hybrid Tee optimized for performance within its designated band. Advanced microwave systems often operate across multiple frequency bands, making the availability of consistent performance across these ranges a valuable asset for designers seeking to maintain system integrity.
Phase Balance and Amplitude Equality
Phase balance between output ports is a critical performance metric for Magic Hybrid Tees, particularly in applications requiring precise phase relationships. When the input is at the H-plane port (port 2), the outputs at the collinear ports (1 and 3) should be in phase with equal amplitude. Conversely, when the input is at the E-plane port (port 4), the outputs should be 180 degrees out of phase. High-quality Magic Hybrid Tees maintain phase balance typically within ±5 degrees and amplitude equality within ±0.5 dB across the operating frequency range. Advanced Microwave Technologies achieves this precision through advanced manufacturing techniques and detailed testing protocols. These phase and amplitude characteristics make the Magic Hybrid Tee ideal for applications in phased array systems, where precise control of signal phase is essential for beam forming and steering. The stable performance across frequency ranges ensures that systems utilizing these components maintain consistent behavior, which is particularly important in broadband applications where performance must be predictable across the entire operational spectrum.
Power Handling and Environmental Stability
The power handling capability of a Magic Hybrid Tee is a critical specification for applications involving high-power transmission or reception. Premium Magic Hybrid Tees can handle average power levels from tens to hundreds of watts, depending on the frequency band and physical dimensions. Peak power handling can reach kilowatt levels for short duration pulses. Advanced Microwave Technologies designs their Magic Hybrid Tees with careful attention to thermal management and voltage breakdown prevention, ensuring reliable operation even under demanding conditions. The environmental stability of these components is equally important, with specifications typically including operating temperature ranges of -55°C to +85°C and humidity resistance up to 95%. These robust environmental specifications make Magic Hybrid Tees suitable for deployment in harsh environments, from aerospace applications to outdoor telecommunication installations. The durability and reliability built into these components ensure long-term performance even in critical applications where component failure could have significant consequences.
Applications and Implementation Considerations
Radar System Integration Requirements
In radar systems, Magic Hybrid Tees serve as essential components for signal distribution and processing. The typical specifications required for radar applications include high isolation (>30 dB), precise amplitude balance (±0.3 dB), and exceptional phase performance (±3°). These stringent requirements ensure accurate target detection and discrimination. When implementing a Magic Hybrid Tee in a radar system, engineers must consider the component's ability to maintain performance under pulsed operation conditions, which is a common mode in radar applications. Advanced Microwave Technologies' Magic Hybrid Tees feature stable performance across varying duty cycles and pulse widths, making them ideal for both continuous wave and pulsed radar systems. The in-phase and equal amplitude signals input into two collinear ports can result in combined signals at the H-plane port and canceled signals at the E-plane port, a feature widely used in monopulse antenna feed structures and phasing testing setups. This capability allows radar systems to simultaneously track targets in multiple dimensions, significantly enhancing radar performance in both military and civilian applications where precise target location is critical.
Satellite Communication Performance Requirements
Satellite communication systems demand Magic Hybrid Tees with exceptional performance characteristics to ensure reliable signal transmission across vast distances. Key specifications for these applications include minimal insertion loss (<0.3 dB), high isolation (>25 dB), and stable performance across temperature variations. Advanced Microwave Technologies' Magic Hybrid Tees deliver superior performance in compact form factors, making them ideal for space-constrained satellite payloads. The broad frequency range support from 1 GHz to 110 GHz ensures compatibility with various satellite communication bands, from L-band to Ka-band and beyond. For engineers designing satellite communication systems, the Magic Hybrid Tee's ability to efficiently divide and combine signals with minimal loss translates directly to improved link budgets and enhanced communication reliability. The compact design is particularly valuable in satellite applications where space and weight are at a premium, allowing system designers to integrate these components into sophisticated communication payloads without sacrificing performance or adding excessive mass.
Test and Measurement System Specifications
In test and measurement applications, Magic Hybrid Tees must meet exceptionally tight specifications to ensure accurate results. Typical requirements include high port-to-port isolation (>35 dB), precise amplitude balance (±0.2 dB), and phase accuracy (±2°). Advanced Microwave Technologies' Magic Hybrid Tees are manufactured to meet these demanding specifications, making them ideal for network analyzers, antenna measurement systems, and other precision test equipment. The stability of these components across varying environmental conditions ensures consistent measurement results, which is crucial for laboratory and field testing scenarios. The Magic Hybrid Tee's ability to precisely divide power and maintain phase relationships makes it invaluable for calibration procedures and reference standards in microwave measurement systems. For research and development facilities, these high-precision components enable accurate characterization of other microwave devices and systems, providing reliable performance that engineers can depend on when validating new designs or troubleshooting existing systems.
Conclusion
The Magic Hybrid Tee stands as a fundamental component in microwave engineering, with specifications and performance metrics that directly impact system capability. From insertion loss and isolation to phase balance and power handling, these critical parameters determine the component's suitability for applications ranging from satellite communications to advanced radar systems. Advanced Microwave Technologies' Magic Hybrid Tees represent the pinnacle of performance through careful design, precision manufacturing, and rigorous testing.
Looking to enhance your microwave system performance with industry-leading Magic Hybrid Tees? Advanced Microwave Technologies offers the perfect combination of technical excellence and customer service. With our perfect supply chain system, rich production experience, professional R&D team, and strict quality control, we deliver superior products with price advantages and fast delivery times. Whether you need standard components or customized solutions, our OEM services provide the flexibility to meet your exact requirements. Contact our team today at sales@admicrowave.com to discover how our Magic Hybrid Tees can elevate your next project.
