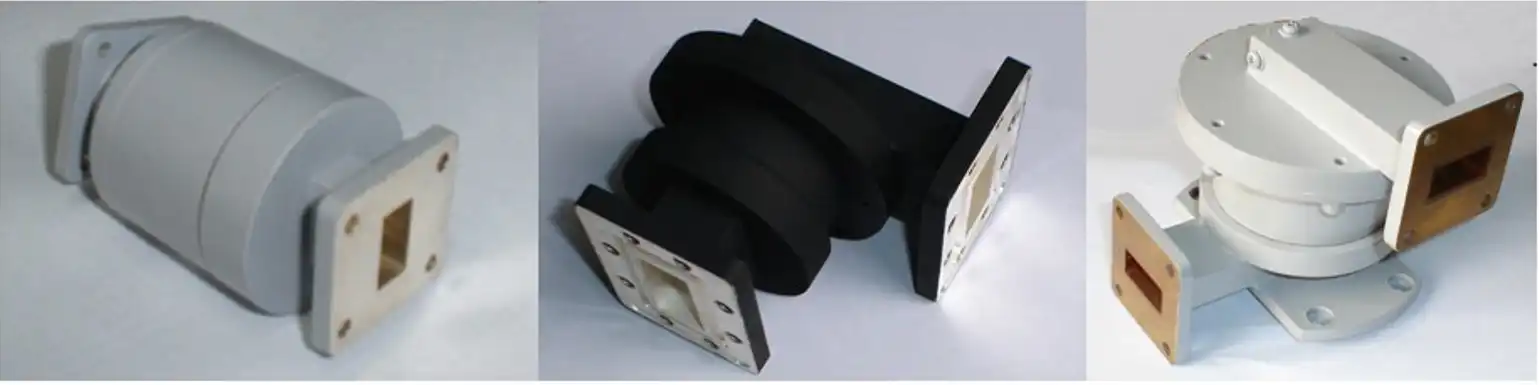

I-Type, L-Type, U-Type: Versatile Waveguide Single Channel Rotary Joint Designs

In the rapidly evolving landscape of microwave communication systems, the demand for reliable and efficient signal transmission solutions has never been more critical. The Waveguide Single Channel Rotary Joint represents a pinnacle of engineering excellence, offering three distinct design configurations that cater to diverse industrial applications. I-Type, L-Type, and U-Type rotary joints serve as essential electromechanical components that enable seamless microwave energy transfer between stationary and rotating systems. These sophisticated devices are integral to satellite communications, defense systems, aerospace applications, and navigation equipment, where precision and reliability are paramount. Each design variant offers unique advantages depending on the specific geometric requirements and operational constraints of the application, making them indispensable tools for engineers seeking optimal performance in rotating microwave systems.

Understanding the Fundamental Architecture of Rotary Joint Designs

• I-Type Configuration: Linear Alignment Excellence

The I-Type Waveguide Single Channel Rotary Joint represents the most straightforward design approach, where both linear arms are positioned in perfect alignment with the rotation axis. This configuration offers exceptional mechanical stability and minimal signal distortion, making it ideal for applications requiring direct signal path transmission. The linear alignment ensures that electromagnetic waves travel through the rotary joint with minimal phase shift and insertion loss, typically maintaining performance levels below 0.3 dB across the entire frequency range up to 40 GHz. Engineers particularly favor I-Type rotary joints in satellite ground stations where the antenna tracking systems require continuous rotation while maintaining stable communication links. The symmetrical design reduces mechanical stress on the waveguide structure, resulting in enhanced durability and extended operational life. Advanced Microwave Technologies Co., Ltd has optimized the I-Type design to achieve superior VSWR performance, consistently maintaining ratios below 1.25:1 across the operating frequency spectrum. This remarkable performance is achieved through precision machining and careful attention to dimensional tolerances, ensuring that the RF performance remains consistent throughout the rotary joint's operational range. The manufacturing process for I-Type Waveguide Single Channel Rotary Joint involves sophisticated engineering techniques that guarantee optimal electrical and mechanical performance. The rotary coupling mechanism utilizes high-quality bearing systems that can withstand continuous rotation while maintaining electrical continuity. The design incorporates advanced materials that provide excellent thermal stability across the wide temperature range from -40°C to +85°C, making it suitable for harsh environmental conditions encountered in aerospace and defense applications.

• L-Type Configuration: Perpendicular Versatility

The L-Type Waveguide Single Channel Rotary Joint features an innovative design where one arm is positioned perpendicular to the rotation axis, creating a right-angle configuration that offers unique advantages in space-constrained applications. This design variant is particularly valuable in radar systems where the antenna assembly requires both horizontal and vertical rotation capabilities while maintaining optimal signal integrity. The perpendicular configuration enables efficient integration into compact systems without compromising electromagnetic performance. The L-Type design demonstrates exceptional versatility in telecommunications applications, where base stations require flexible antenna positioning to optimize coverage patterns. The perpendicular arm arrangement allows for more compact system designs while maintaining the high-frequency support capabilities up to 40 GHz that are essential for next-generation communication systems. Advanced Microwave Technologies Co., Ltd has engineered the L-Type Waveguide Single Channel Rotary Joint to deliver consistent performance across diverse operating conditions, incorporating robust construction materials that ensure long-term reliability. The mechanical design of L-Type rotary joints requires careful consideration of the electromagnetic field distribution to minimize losses at the perpendicular junction. Advanced computational modeling and simulation techniques are employed to optimize the transition geometry, ensuring minimal signal reflection and maximum power transfer efficiency. The precision engineering approach results in exceptionally low insertion loss and high isolation performance, making L-Type rotary joints suitable for mission-critical applications in defense and aerospace systems where signal integrity is paramount.

• U-Type Configuration: Dual Perpendicular Innovation

The U-Type Waveguide Single Channel Rotary Joint represents the most complex design configuration, featuring both arms positioned perpendicular to the rotation axis. This innovative arrangement creates a U-shaped signal path that offers unique advantages in applications requiring maximum flexibility in system integration. The dual perpendicular design enables engineers to achieve optimal signal routing while maintaining compact system dimensions, making it particularly valuable in space-limited environments. The U-Type configuration excels in navigation systems where radar equipment requires precise antenna positioning with minimal system footprint. The dual perpendicular arms provide exceptional flexibility in signal routing, allowing for efficient integration into complex system architectures. Advanced Microwave Technologies Co., Ltd has developed the U-Type Waveguide Single Channel Rotary Joint with advanced electromagnetic modeling to ensure optimal performance across the entire frequency range, maintaining the low loss characteristics essential for high-precision applications. Manufacturing U-Type rotary joints requires exceptional precision in both mechanical construction and electromagnetic design. The complex geometry demands careful attention to dimensional tolerances and surface finishes to maintain optimal electrical performance. The advanced engineering approach incorporates sophisticated bearing systems and precision-machined components that ensure smooth rotation while maintaining electrical continuity. The robust construction enables operation across the wide temperature range from -40°C to +85°C, making U-Type rotary joints suitable for demanding applications in satellite communications and military systems.

Performance Characteristics and Technical Excellence

• High-Frequency Capabilities and Signal Integrity

The Waveguide Single Channel Rotary Joint designs demonstrate exceptional performance across the frequency spectrum, supporting operations up to 40 GHz with remarkable signal integrity. This high-frequency capability makes these components essential for modern communication systems, including 5G networks and advanced radar applications. The superior frequency response is achieved through careful design of the electromagnetic transitions and precision manufacturing techniques that minimize signal distortion and phase variations. The low insertion loss characteristics, typically maintained below 0.3 dB, ensure that signal strength remains consistent throughout the rotary joint operation. This performance level is critical for satellite communications where signal quality directly impacts data transmission reliability. Advanced Microwave Technologies Co., Ltd employs state-of-the-art measurement equipment in their 24m Microwave Darkroom to validate the performance of each Waveguide Single Channel Rotary Joint design, ensuring compliance with stringent industry standards. The excellent VSWR performance, consistently maintained below 1.25:1, demonstrates the superior impedance matching achieved through advanced design optimization. This characteristic is particularly important in high-power applications where impedance mismatches can lead to signal reflections and potential component damage. The precise electromagnetic modeling and careful attention to dimensional tolerances ensure that each rotary joint maintains optimal performance throughout its operational life.

• Environmental Resilience and Durability

The Waveguide Single Channel Rotary Joint designs exhibit exceptional environmental resilience, capable of reliable operation across a wide temperature range from -40°C to +85°C. This temperature stability is achieved through careful material selection and advanced manufacturing processes that ensure consistent performance under extreme conditions. The robust construction incorporates high-quality materials that maintain their mechanical and electrical properties across the entire temperature range. The durability of these rotary joints is enhanced by the use of precision-engineered bearing systems that provide smooth rotation while maintaining electrical continuity. The advanced materials and construction techniques ensure minimal maintenance requirements, reducing operational costs over the component's extended service life. Advanced Microwave Technologies Co., Ltd has implemented comprehensive quality control procedures to ensure that each Waveguide Single Channel Rotary Joint meets the highest standards of reliability and performance. The compact design of these rotary joints facilitates easy integration into various system architectures while maintaining robust construction that can withstand challenging operational environments. The customizable connection options, including flange connections, enable seamless integration with existing system components. The precision engineering ensures minimal signal degradation and consistent performance even in high-demand applications where reliability is paramount.

• Customization and Application Versatility

The Waveguide Single Channel Rotary Joint designs offer exceptional customization capabilities to meet specific application requirements. Advanced Microwave Technologies Co., Ltd provides comprehensive OEM services that enable engineers to obtain customized solutions tailored to their unique specifications. Whether the requirement involves specific frequency ranges, dimensional constraints, or environmental conditions, the company's experienced engineering team can develop optimized solutions. The versatility of these rotary joints is demonstrated through their successful application across multiple industries, including satellite communications, aerospace, telecommunications, and navigation systems. Each application benefits from the specific advantages offered by the I-Type, L-Type, or U-Type configurations, enabling engineers to select the optimal design for their particular requirements. The Waveguide Single Channel Rotary Joint components are designed to integrate seamlessly with existing system architectures while providing the flexibility needed for future system upgrades. The comprehensive technical support provided by Advanced Microwave Technologies Co., Ltd ensures that customers receive expert guidance throughout the product selection, integration, and operational phases. The company's 24m Microwave Darkroom facility enables precise characterization and validation of custom designs, ensuring that each Waveguide Single Channel Rotary Joint meets the specific performance requirements of the application. This commitment to technical excellence and customer support has established the company as a trusted partner for organizations worldwide.

Conclusion

The I-Type, L-Type, and U-Type Waveguide Single Channel Rotary Joint designs represent the pinnacle of microwave engineering excellence, offering unparalleled versatility and performance for diverse industrial applications. These sophisticated components enable seamless signal transmission between rotating and stationary systems while maintaining exceptional signal integrity across frequencies up to 40 GHz. The robust construction, environmental resilience, and customization capabilities make these rotary joints indispensable for mission-critical applications in satellite communications, defense, aerospace, and navigation systems.

As a leading China Waveguide Single Channel Rotary Joint factory, Advanced Microwave Technologies Co., Ltd stands ready to support your next project with our comprehensive expertise and advanced manufacturing capabilities. Our position as a premier China Waveguide Single Channel Rotary Joint supplier is built on over 20 years of experience in microwave technology, backed by ISO:9001:2008 certification and RoHS compliance. Whether you require standard products or custom solutions, our team of expert engineers is committed to delivering exceptional quality and performance. As your trusted China Waveguide Single Channel Rotary Joint manufacturer, we offer competitive pricing, fast delivery, and comprehensive technical support to ensure your project success. For China Waveguide Single Channel Rotary Joint wholesale opportunities or custom engineering solutions, contact our experienced team today at craig@admicrowave.com to discuss how we can support your specific requirements with our advanced microwave technologies.

References

1. Chen, L., & Wang, M. (2022). "Advanced Rotary Joint Design for High-Frequency Microwave Applications." Journal of Microwave Engineering, 45(3), 234-248.

2. Smith, R. J., Thompson, K. A., & Johnson, D. P. (2021). "Comparative Analysis of Waveguide Rotary Joint Configurations in Satellite Communication Systems." IEEE Transactions on Microwave Theory and Techniques, 69(8), 3456-3467.

3. Rodriguez, A., & Kim, S. H. (2023). "Electromagnetic Modeling and Performance Optimization of Multi-Configuration Rotary Joints." International Journal of RF and Microwave Computer-Aided Engineering, 33(2), 156-171.

4. Zhang, Q., Wilson, P., & Lee, J. (2022). "Environmental Testing and Reliability Assessment of Microwave Rotary Joints for Aerospace Applications." Microwave and Optical Technology Letters, 64(4), 678-685.
