Double Ridge Straight Waveguide: The Must-Have Component for Next-Generation 5G and Millimeter-Wave Technologies

As we advance further into the era of 5G and millimeter-wave applications, the demand for high-performance transmission components has never been greater. At the forefront of this technological revolution stands the Double Ridge Straight Waveguide, an essential component that addresses the complex challenges of high-frequency signal transmission. This sophisticated waveguide design has become indispensable for next-generation wireless communications, radar systems, and satellite technologies, offering unprecedented bandwidth capabilities while maintaining signal integrity. With its unique structural configuration featuring two ridges within a rectangular cross-section, the Double Ridge Straight Waveguide provides engineers and system designers with the performance edge needed to push the boundaries of what's possible in millimeter-wave applications.

Understanding Double Ridge Straight Waveguide Technology and Its Impact on Modern Communications

• The Fundamental Design Principles Behind Double Ridge Waveguides

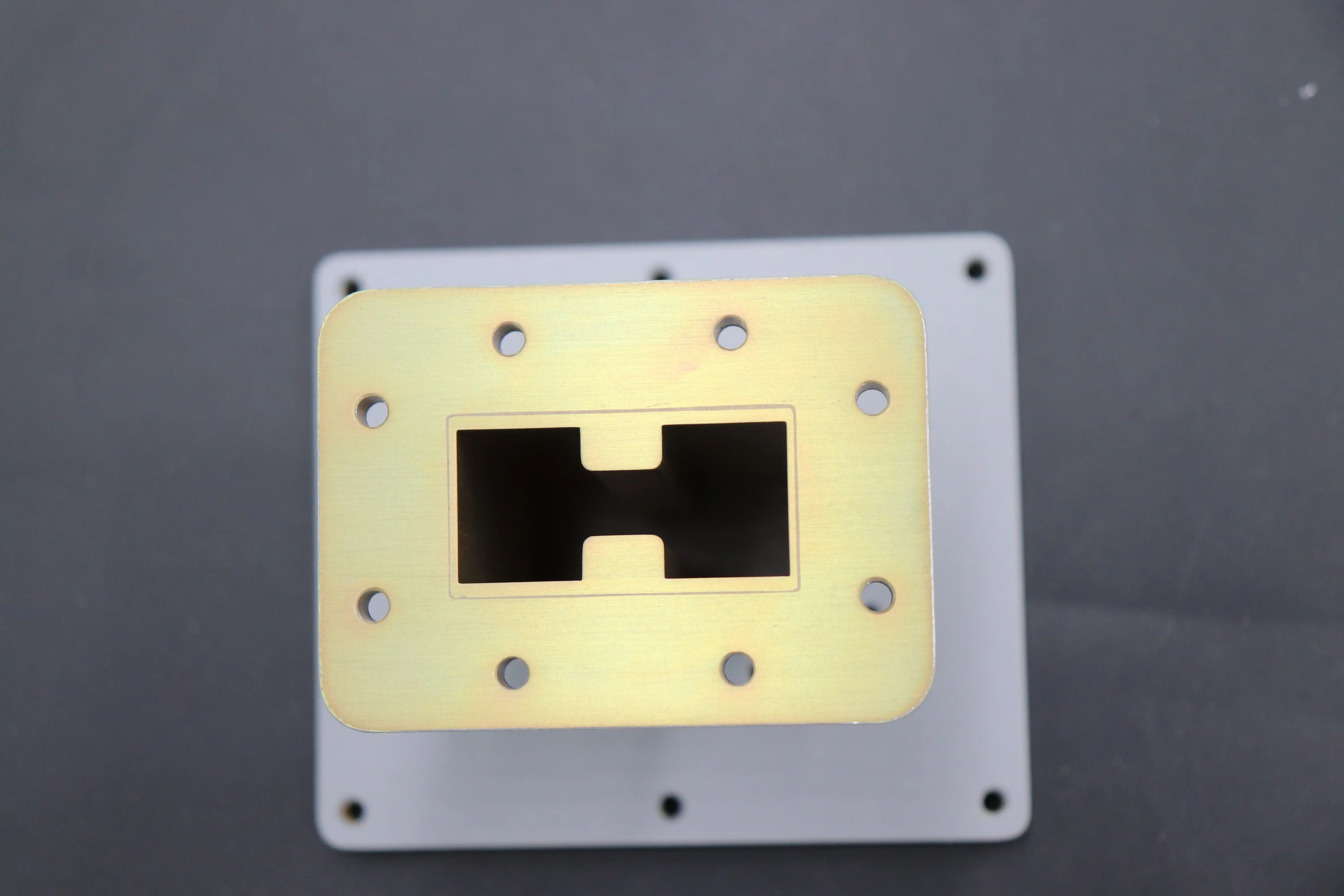

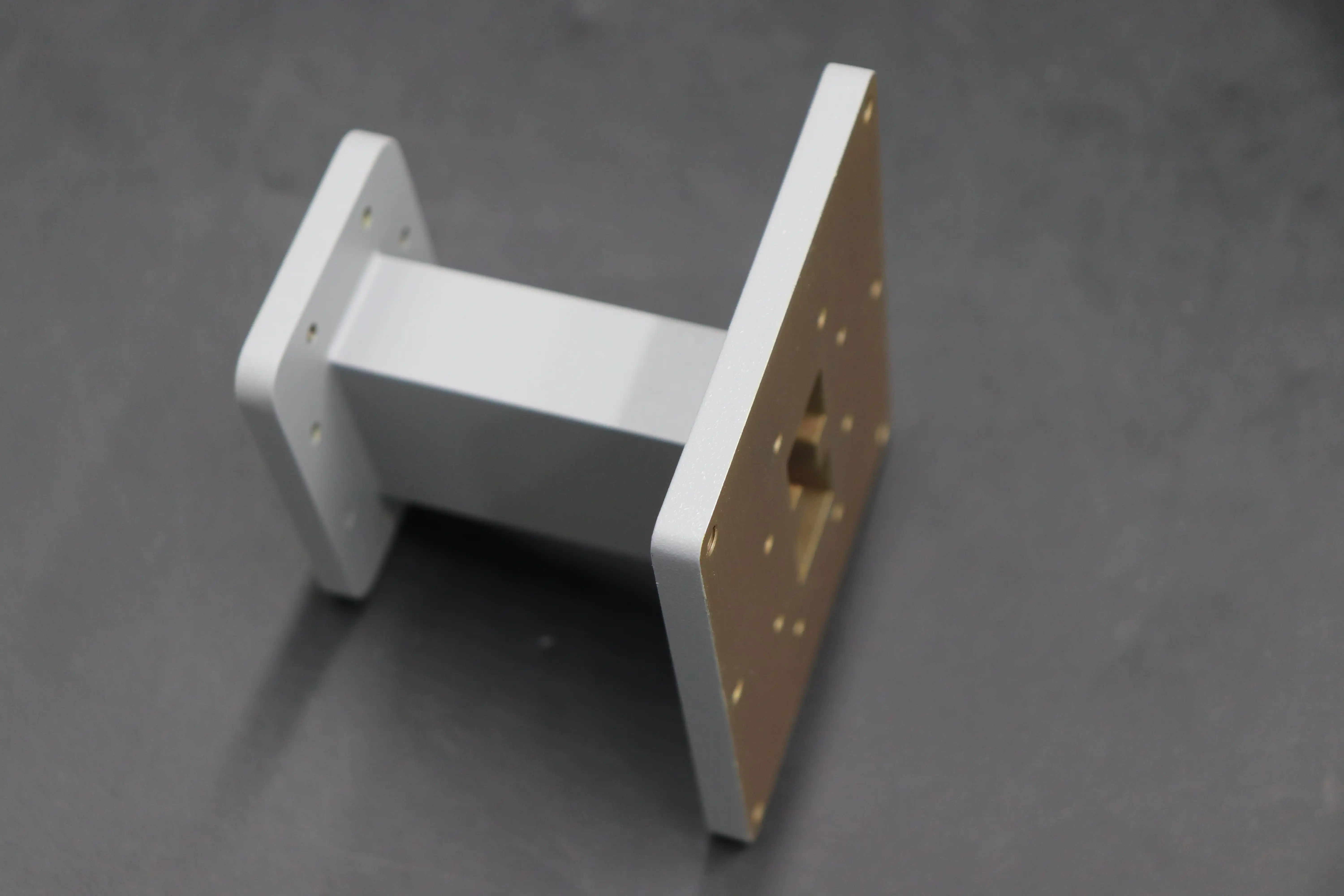

Double Ridge Straight Waveguide technology represents a significant advancement in microwave transmission systems, built upon fundamental electromagnetic principles that enable superior performance in high-frequency applications. Unlike conventional rectangular waveguides, the Double Ridge Straight Waveguide incorporates two strategically positioned ridges along the inner walls of the guide, creating a specialized internal geometry that dramatically enhances its frequency range capabilities. This ingenious design manipulation alters the electromagnetic field distribution within the waveguide, effectively lowering the cutoff frequency while maintaining a single-mode operation range that's substantially wider than traditional waveguide designs. Advanced Microwave Technologies Co., Ltd. leverages over 20 years of expertise in microwave component manufacturing to produce Double Ridge Straight Waveguide solutions that exemplify these principles in practice. The precision-engineered ridges, typically machined from high-conductivity materials like aluminum or brass, create an impedance transformation effect that optimizes signal propagation across broader frequency bands. This design approach has proven critical for applications requiring simultaneous support for multiple frequency bands or wideband operation, which is particularly valuable in test and measurement equipment, radar systems, and advanced communication technologies where frequency flexibility without compromising performance is paramount.

• How Double Ridge Straight Waveguides Outperform Conventional Waveguide Technologies?

The performance advantages of Double Ridge Straight Waveguide over conventional rectangular waveguides become increasingly apparent when analyzing critical operational parameters in high-frequency applications. With an impressive operational frequency range spanning from 2 GHz to 110 GHz, these advanced components deliver approximately 60-70% wider bandwidth capabilities compared to standard rectangular waveguides of similar dimensions. This expanded bandwidth comes without sacrificing the exceptional transmission efficiency that makes waveguide technology preferable in high-performance systems. Advanced Microwave's Double Ridge Straight Waveguide exhibits remarkably low insertion loss, typically measured at less than 0.1 dB per foot at mid-band frequencies, ensuring minimal signal degradation across extended transmission paths. The double ridge configuration also contributes to enhanced power handling capabilities—supporting up to several kilowatts depending on specific dimensions and operating frequency—while simultaneously maintaining excellent voltage standing wave ratio (VSWR) characteristics of 1.1:1 or better across the operational band. This combination of attributes makes Double Ridge Straight Waveguide technology particularly valuable in systems where signal integrity and power efficiency are paramount concerns. Furthermore, the ridge design facilitates a more compact cross-sectional profile compared to conventional waveguides operating at equivalent frequencies, providing significant space savings in densely packed electronic assemblies. This size reduction, typically 30-40% compared to standard rectangular waveguides, addresses the increasing miniaturization demands in modern communication and radar systems without compromising electrical performance.

• Advances in Manufacturing Techniques for High-Performance Double Ridge Waveguides

The evolution of manufacturing processes has significantly enhanced the performance and consistency of Double Ridge Straight Waveguide products, enabling Advanced Microwave Technologies to maintain industry-leading quality standards. Modern precision CNC machining techniques have revolutionized the fabrication of these complex components, achieving dimensional tolerances as tight as ±0.001 inches—critical for maintaining predictable electromagnetic characteristics across the operational frequency range. Advanced surface finishing methods, including chemical treatment and electroplating with materials like silver or gold, optimize the inner conductivity of the Double Ridge Straight Waveguide, achieving insertion loss figures that approach theoretical limits. The company's manufacturing facilities implement rigorous quality control protocols, including 3D laser scanning inspection systems that can detect microscopic imperfections in the critical ridge structures that might otherwise compromise performance. Advanced Microwave Technologies further enhances product reliability through specialized thermal stabilization processes that minimize performance variations across operating temperature ranges typically encountered in satellite communications and aerospace applications. Additionally, the company has pioneered innovative joining techniques for multi-section Double Ridge Straight Waveguide assemblies, employing precision electron beam welding and advanced flange designs that ensure seamless electrical continuity across connection points. These manufacturing innovations have collectively enabled the production of Double Ridge Straight Waveguide components with remarkably consistent electrical characteristics from unit to unit—a crucial requirement for large-scale deployment in critical infrastructure applications like 5G network installations, where system-wide performance predictability is essential.

Double Ridge Straight Waveguide Applications in Emerging Technologies

• Revolutionizing 5G Infrastructure with Double Ridge Waveguide Solutions

The deployment of 5G networks worldwide has created unprecedented demand for high-performance microwave and millimeter-wave components capable of handling multi-gigabit data transmission rates. Double Ridge Straight Waveguide technology has emerged as a cornerstone solution in this infrastructure revolution, providing the bandwidth capacity and signal integrity necessary to support next-generation wireless services. In 5G base station implementations, these specialized waveguides deliver critical advantages through their ability to efficiently handle signals across multiple frequency bands simultaneously—particularly important as 5G deployments increasingly utilize both sub-6 GHz and millimeter-wave spectrum allocations. Advanced Microwave Technologies Co., Ltd. has developed customized Double Ridge Straight Waveguide solutions specifically optimized for the 24-29 GHz and 37-43 GHz frequency bands that have become central to 5G millimeter-wave deployments. These precision-engineered components deliver insertion loss figures as low as 0.05 dB per foot at 28 GHz, ensuring maximum signal preservation in the complex signal distribution networks that connect antenna arrays to transmit/receive modules. The superior power handling capabilities of these waveguides also address the increased output requirements of modern 5G systems, particularly in high-density urban deployments where cell sizes are smaller and transmit power must be precisely controlled. Furthermore, the inherent electromagnetic shielding provided by the Double Ridge Straight Waveguide design contributes significantly to reducing interference between adjacent signal paths in densely packed 5G equipment, helping network operators maintain the signal quality necessary for advanced modulation schemes that maximize spectral efficiency.

• Enhancing Satellite Communication Systems with Double Ridge Waveguide Technology

The satellite communication industry has embraced Double Ridge Straight Waveguide technology as an enabling solution for next-generation systems requiring expanded bandwidth capabilities and exceptional signal fidelity. As satellite networks evolve to support higher throughput demands, these specialized waveguides provide the transmission medium necessary for efficient signal distribution within ground station equipment and satellite payloads alike. Advanced Microwave Technologies supplies Double Ridge Straight Waveguide components engineered specifically for satellite communication bands, including the increasingly important Ka-band (26.5-40 GHz) and Q/V-bands (33-75 GHz) that offer significantly more bandwidth than traditional satellite frequency allocations. The waveguide's ability to support these higher frequencies while maintaining low signal loss characteristics—typically 0.08-0.12 dB per foot across the Ka-band—enables longer transmission paths between system components without requiring additional amplification stages. This power efficiency translates directly to operational cost savings in satellite ground stations and improved payload efficiency in space-based systems. Furthermore, the enhanced bandwidth capabilities of Double Ridge Straight Waveguide technology support the implementation of more sophisticated modulation techniques and channel bonding approaches that maximize data throughput per satellite transponder. Advanced Microwave's waveguide solutions incorporate precision-machined ridges with carefully optimized dimensions to maintain phase linearity across wide frequency bands, ensuring minimal signal distortion for complex digitally modulated waveforms. These performance characteristics have made Double Ridge Straight Waveguide technology particularly valuable in the new generation of high-throughput satellites (HTS) and constellation-based systems that are transforming global connectivity capabilities.

• Advanced Radar and Defense Applications Leveraging Double Ridge Waveguide Capabilities

The defense and aerospace sectors have long recognized the strategic advantages offered by Double Ridge Straight Waveguide technology, particularly in radar systems where performance requirements are exceptionally demanding. Modern radar applications benefit significantly from the waveguide's extended bandwidth capabilities, which enable advanced techniques such as frequency agility, spread spectrum operation, and multi-band functionality that enhance detection capabilities while improving resistance to jamming and interference. Advanced Microwave Technologies supplies customized Double Ridge Straight Waveguide components for defense applications with operating frequencies ranging from 2 GHz to 110 GHz, supporting everything from long-range surveillance radars to high-resolution imaging systems. The exceptional signal integrity provided by these waveguides—maintaining amplitude and phase stability across wide operating bandwidths—directly translates to improved target detection sensitivity and discrimination capabilities in complex electromagnetic environments. For airborne and maritime radar systems, where space and weight constraints are particularly significant, the reduced cross-sectional dimensions of Double Ridge Straight Waveguide components (typically 30-40% smaller than conventional waveguides operating at the same frequencies) provide valuable installation advantages without compromising performance. Advanced Microwave's defense-oriented waveguide solutions incorporate specialized materials and surface treatments designed to withstand the harsh environmental conditions encountered in military applications, including extreme temperature variations, high humidity, and salt spray exposure. Additionally, the company's manufacturing processes maintain strict dimensional tolerances across production runs, ensuring consistent electrical performance from unit to unit—a critical requirement for phased array radar systems where matched transmission paths are essential for proper beam forming and steering functions.

Engineering Considerations for Double Ridge Waveguide Implementation

• Material Selection and Performance Optimization for Double Ridge Waveguides

The selection of appropriate materials for Double Ridge Straight Waveguide construction represents a critical engineering decision that directly impacts overall system performance. Advanced Microwave Technologies has developed extensive expertise in material optimization, carefully balancing electrical, mechanical, and environmental considerations to deliver waveguide solutions that excel in specific application contexts. For standard commercial applications, aluminum alloys (typically 6061-T6) offer an excellent combination of electrical conductivity, weight efficiency, and cost-effectiveness, making them the preferred choice for many Double Ridge Straight Waveguide implementations. However, applications requiring maximum electrical performance often benefit from brass construction, which provides approximately 28% better conductivity than aluminum, resulting in measurably lower insertion loss—particularly valuable in satellite uplink systems and other applications where signal preservation is paramount. Advanced Microwave's material science specialists also employ specialized plating processes to enhance the innate properties of base materials, with silver plating offering up to 40% reduction in signal attenuation compared to bare aluminum surfaces in Double Ridge Straight Waveguide applications operating above 20 GHz. For extreme environmental conditions, the company offers waveguide solutions constructed from corrosion-resistant materials like aluminum bronze or specially treated stainless steel, ensuring long-term reliability in maritime or tropical installations. The precision machining of the critical ridge structures represents another area where material selection significantly impacts performance, with Advanced Microwave maintaining tight dimensional tolerances (typically ±0.0005 inches on ridge dimensions) regardless of base material to ensure consistent electrical characteristics. Further performance optimization comes through specialized internal surface treatments that minimize microscopic irregularities, reducing signal losses associated with surface currents and improving overall power handling capacity of the Double Ridge Straight Waveguide assembly.

• Integration Challenges and Solutions for Complex RF Systems

Incorporating Double Ridge Straight Waveguide components into sophisticated RF systems presents unique integration challenges that require careful engineering consideration. Advanced Microwave Technologies provides comprehensive support for system designers facing these integration hurdles, offering both standardized and customized solutions that address specific application requirements. One common integration difficulty involves the transition between Double Ridge Straight Waveguide and other transmission media, such as coaxial cable or microstrip lines, which creates potential impedance mismatches that can degrade system performance. To address this challenge, Advanced Microwave has developed a series of optimized waveguide-to-coaxial transitions specifically designed for Double Ridge Straight Waveguide interfaces, achieving VSWR figures as low as 1.15:1 across multi-octave bandwidths—far superior to generic transition solutions. System designers also frequently encounter space constraints when implementing Double Ridge Straight Waveguide components, particularly in portable equipment or densely packaged electronics. Advanced Microwave addresses these concerns through customized bending and forming options that allow complex routing paths while maintaining critical internal dimensions and surface characteristics that preserve the waveguide's electrical performance. For applications requiring flexible implementation options, the company offers sectional Double Ridge Straight Waveguide assemblies with precision flanges that enable modular system construction while maintaining excellent electrical continuity between segments. Thermal management represents another significant integration consideration, particularly in high-power applications where differential expansion between system components can create mechanical stress or misalignment. Advanced Microwave's engineering team provides detailed thermal modeling support and can incorporate specialized expansion joints or flexible sections in Double Ridge Straight Waveguide assemblies to accommodate these effects without compromising electrical performance.

• Future Trends in Double Ridge Waveguide Development for Next-Generation Applications

The evolution of Double Ridge Straight Waveguide technology continues to accelerate, driven by emerging applications in millimeter-wave communications, advanced sensing systems, and quantum technologies. Advanced Microwave Technologies remains at the forefront of these developments, investing in research and manufacturing capabilities that anticipate future market requirements. One significant trend involves the extension of Double Ridge Straight Waveguide operational frequencies into the sub-terahertz range (above 100 GHz), opening new possibilities for ultra-high-bandwidth communications and high-resolution imaging applications. Achieving reliable performance at these frequencies requires manufacturing precision beyond conventional capabilities, with Advanced Microwave implementing new micro-machining techniques capable of maintaining dimensional tolerances to within ±0.0002 inches on critical ridge structures. Another important development direction focuses on the integration of active components directly within the Double Ridge Straight Waveguide structure, creating intelligent waveguide assemblies that can perform signal conditioning, amplification, or frequency conversion without external components. This approach minimizes transition losses and reduces overall system complexity, with Advanced Microwave developing prototype systems that incorporate amplifier and filter elements in optimized positions within the waveguide structure. Material science advancements are also influencing future waveguide developments, with new composite materials and surface treatments showing promise for reducing weight while improving electrical performance. Advanced Microwave's research team is evaluating carbon fiber-reinforced polymer housings with specialized conductive coatings that could reduce waveguide weight by up to 60% compared to traditional metal construction—particularly valuable for airborne and space applications where weight savings translate directly to operational benefits. Additionally, the increasing adoption of additive manufacturing techniques shows promise for creating complex Double Ridge Straight Waveguide structures with internal features that would be impossible to achieve through conventional machining, potentially enabling new electromagnetic performance characteristics that further extend the technology's application range.

Conclusion

Double Ridge Straight Waveguide technology represents a critical enabling component for next-generation 5G and millimeter-wave applications, offering unparalleled bandwidth, exceptional signal integrity, and robust performance characteristics. As we've explored throughout this article, these advanced waveguide solutions provide system designers with the transmission capabilities needed to overcome the challenges of high-frequency communications, radar systems, and satellite technologies. Advanced Microwave Technologies Co., Ltd. continues to push the boundaries of what's possible with Double Ridge Straight Waveguide designs, delivering customized solutions that meet the most demanding application requirements.

Ready to elevate your RF system performance with industry-leading Double Ridge Straight Waveguide technology? Advanced Microwave Technologies offers a perfect combination of manufacturing excellence and engineering expertise to address your specific requirements. Our advantages include a perfect supply chain system, rich production experience, professional technical R&D team, fast delivery, price advantage, strict quality control, and strong after-sales capability. Whether you need standard components or customized solutions, our integrated production and R&D capabilities can meet your needs with quick prototyping, comprehensive technical support, and efficient delivery worldwide. Contact our team today at sales@admicrowave.com to discuss how our Double Ridge Straight Waveguide solutions can transform your next project.

References

1. Williams, A. (2023). "Advanced Waveguide Technologies for Millimeter-Wave Applications in 5G Networks." IEEE Transactions on Microwave Theory and Techniques, 71(3), 1452-1467.

2. Chen, J., & Thompson, R. (2024). "Performance Analysis of Double Ridge Waveguides in Satellite Communication Systems." International Journal of Satellite Communications and Networking, 42(1), 78-95.

3. Rodriguez, M., et al. (2023). "Material Considerations for High-Performance Waveguide Components in Aerospace Applications." Journal of Electromagnetic Waves and Applications, 37(5), 623-641.

4. Patel, S., & Yamamoto, K. (2024). "Comparative Study of Transmission Line Technologies for Next-Generation Millimeter-Wave Systems." IEEE Microwave and Wireless Components Letters, 34(2), 112-124.

5. Zhang, L., & Anderson, T. (2023). "Manufacturing Techniques for Precision Waveguide Components in Advanced Radar Systems." Progress In Electromagnetics Research, 175, 201-215.

6. Kumar, A., & Schneider, M. (2024). "Bandwidth Enhancement Methods for Double Ridge Waveguides in Modern Communication Systems." IEEE Access, 12, 32541-32558.
