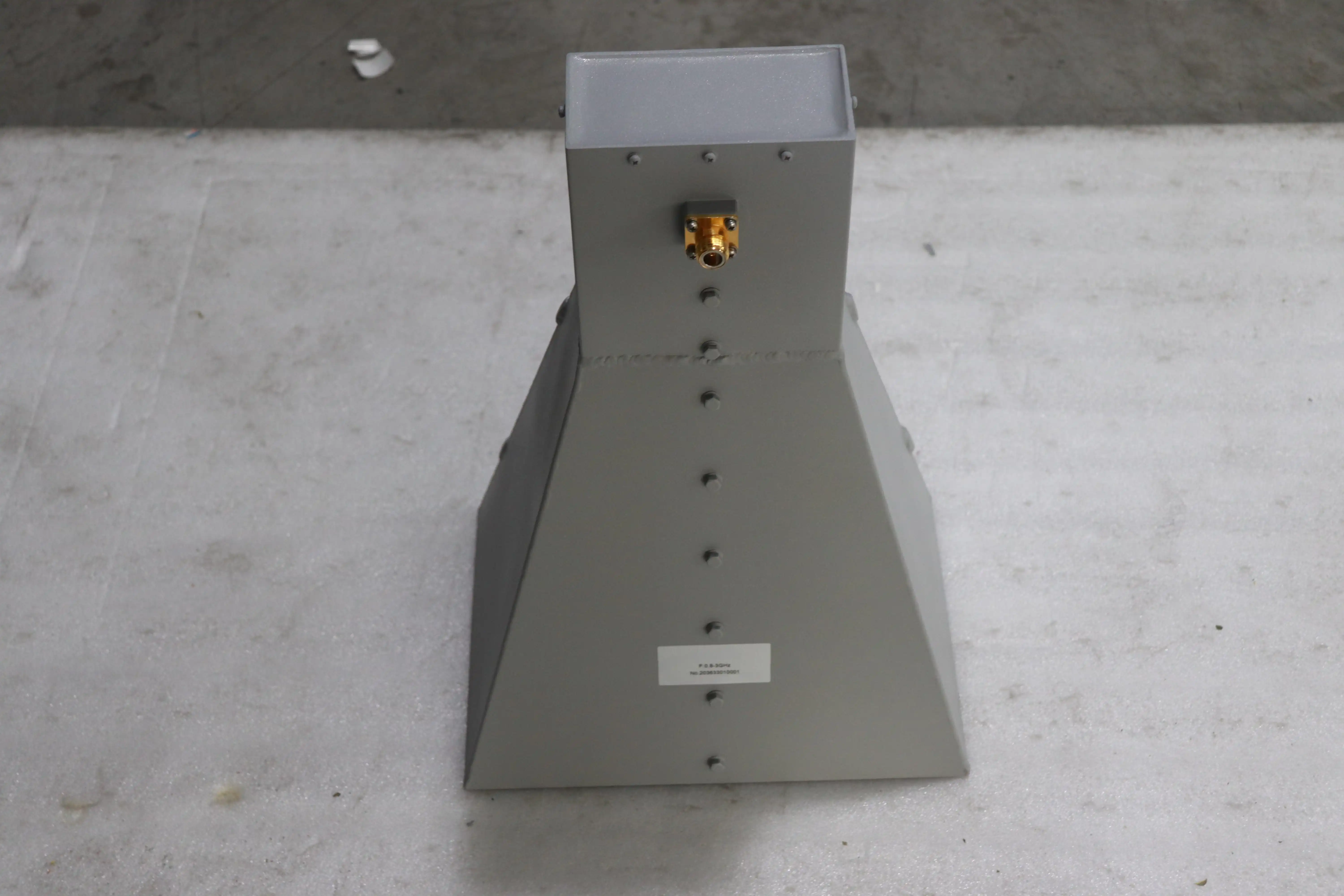

3 Benefits of Our Mini Wideband Double-ridged Horn Antenna.
In today's rapidly evolving telecommunications and aerospace industries, precision and reliability are paramount. The Mini Wideband Double-ridged Horn Antenna stands as a testament to advanced engineering excellence, offering unparalleled performance across multiple frequency bands while maintaining a compact footprint. This sophisticated antenna solution addresses three critical challenges faced by modern communication systems: bandwidth limitations, space constraints, and signal integrity issues. Through innovative double-ridged horn design and meticulous engineering, this antenna delivers exceptional wideband coverage, compact versatility, and superior signal performance that meets the demanding requirements of satellite communications, radar systems, and precision measurement applications.
Exceptional Wideband Coverage for Versatile Applications
The Mini Wideband Double-ridged Horn Antenna revolutionizes frequency coverage by supporting an impressive bandwidth from 1.5 GHz to 18 GHz, making it an invaluable asset for diverse high-frequency applications. This extensive frequency range eliminates the need for multiple antenna systems, significantly reducing system complexity and operational costs. The double-ridged horn structure incorporates advanced technology processing to suppress higher-order modes, ensuring clean signal transmission across the entire frequency spectrum. This sophisticated design approach enables the antenna to maintain consistent performance characteristics throughout its operational bandwidth, which is particularly crucial for applications requiring reliable signal integrity across multiple frequency bands.The wideband capability of this Mini Wideband Double-ridged Horn Antenna proves especially beneficial in satellite communication systems where different frequency allocations serve various purposes. From L-band applications at 1.5 GHz used in GPS and mobile satellite services to Ku-band frequencies at 18 GHz employed in direct broadcast satellite communications, this antenna seamlessly handles the entire spectrum. Military and defense applications particularly benefit from this broad coverage, as modern radar systems often require frequency agility to counter electronic warfare threats and adapt to different operational scenarios. The antenna's ability to maintain high gain and low VSWR across such a wide frequency range ensures that signal quality remains consistent regardless of the specific frequency being utilized.Furthermore, the wideband characteristics make this antenna ideal for EMI/RFI testing and EMC measurements, where engineers need to evaluate electromagnetic compatibility across multiple frequency bands. Research institutions and testing laboratories can rely on this single antenna solution to conduct comprehensive measurements without the need for multiple specialized antennas. The broad frequency response also supports material analysis applications, where different frequencies penetrate materials differently, providing valuable insights into material properties. This versatility translates to significant cost savings and operational efficiency for organizations that previously required multiple antenna systems to cover similar frequency ranges.
Compact Design Excellence for Space-Critical Applications
Despite its impressive wideband capabilities, the Mini Wideband Double-ridged Horn Antenna achieves remarkable miniaturization without compromising performance, addressing the growing demand for space-efficient solutions in modern communication systems. The compact design philosophy behind this antenna recognizes that many contemporary applications, from unmanned aerial vehicles to mobile communication platforms, operate under severe space constraints where every cubic centimeter matters. Advanced engineering techniques have enabled the reduction of physical dimensions while maintaining the electrical performance characteristics typically associated with larger horn antennas.The miniaturized form factor of this Mini Wideband Double-ridged Horn Antenna makes it particularly suitable for mobile installations where weight and size directly impact operational capabilities. In aerospace applications, where payload capacity is at a premium, the reduced size and weight contribute to overall system efficiency and mission success. The antenna's compact nature also facilitates integration into existing systems without requiring significant modifications to mounting structures or enclosures. This design consideration proves invaluable for retrofit applications where legacy systems need upgraded antenna capabilities without extensive mechanical redesign.The space-saving characteristics extend beyond mere physical dimensions to include considerations for installation flexibility and system integration. The compact design allows for closer spacing in antenna arrays, enabling more sophisticated beamforming and spatial diversity techniques. For telecommunications infrastructure, the reduced footprint permits installation in locations where larger antennas would be impractical, expanding coverage possibilities in urban environments or geographically constrained sites. Additionally, the smaller size reduces wind loading and structural requirements, leading to lower installation and maintenance costs. The Mini Wideband Double-ridged Horn Antenna demonstrates that advanced miniaturization techniques can deliver full-sized performance in a fraction of the space, making it an ideal choice for applications where spatial efficiency is as important as electrical performance.
Superior Signal Performance and Reliability
The Mini Wideband Double-ridged Horn Antenna delivers exceptional signal performance through its optimized electrical characteristics, featuring a typical gain of 10 dB and maintaining a low VSWR of ≤ 2:1 across its operational bandwidth. This combination of high gain and excellent impedance matching ensures maximum power transfer and minimal signal degradation, critical factors for both transmitting medium-power signals and receiving low-power signals with high fidelity. The double-ridged horn structure provides superior directivity compared to conventional horn antennas, enabling focused signal transmission that reduces interference and improves overall system performance.The high gain characteristics of this Mini Wideband Double-ridged Horn Antenna make it particularly valuable for long-range communication applications where signal strength is paramount. In satellite ground stations, the enhanced gain directly translates to improved link margins, enabling reliable communication even under adverse weather conditions or when dealing with weak satellite signals. The consistent gain performance across the entire frequency range ensures that system designers can count on predictable performance regardless of the specific frequency being used. The low VSWR specification indicates excellent impedance matching, which minimizes reflections and maximizes the efficient transfer of power between the antenna and the connected equipment.Signal integrity remains paramount throughout the antenna's operational envelope, with excellent return loss characteristics that minimize transmission loss and optimize overall system efficiency. The superior directivity achieved through the double-ridged horn structure ensures that energy is focused in the desired direction, reducing spillover and interference with adjacent systems. This directional precision proves especially important in dense electromagnetic environments where multiple communication systems operate in proximity. The antenna supports both horizontal and vertical linear polarization, providing installation flexibility and enabling polarization diversity techniques that enhance signal reliability. Manufacturing from high-quality aluminum alloy ensures durability and consistent electrical performance over extended operational periods, while resistance to harsh environmental conditions guarantees reliable operation in demanding applications ranging from maritime communications to aerospace systems. The combination of these performance characteristics makes the Mini Wideband Double-ridged Horn Antenna an ideal choice for applications where signal quality and reliability cannot be compromised.
Conclusion
The Mini Wideband Double-ridged Horn Antenna represents a pinnacle of modern antenna engineering, successfully combining exceptional wideband coverage, compact design excellence, and superior signal performance in a single, versatile solution. Its ability to operate across the 1.5-18 GHz frequency range while maintaining a miniaturized footprint addresses the evolving needs of contemporary communication systems, from satellite networks to precision measurement applications. The high gain, low VSWR, and superior directivity characteristics ensure reliable performance in the most demanding environments.
As a leading China Mini Wideband Double-ridged Horn Antenna factory, Advanced Microwave Technologies Co., Ltd. leverages over 20 years of microwave expertise to deliver cutting-edge antenna solutions. Our position as a premier China Mini Wideband Double-ridged Horn Antenna supplier is reinforced by ISO certifications and state-of-the-art testing facilities up to 110 GHz. Whether you're seeking a reliable China Mini Wideband Double-ridged Horn Antenna manufacturer for large-scale deployment or exploring China Mini Wideband Double-ridged Horn Antenna wholesale opportunities, our comprehensive OEM services ensure tailored solutions that meet your specific requirements.
Contact us today for competitive Mini Wideband Double-ridged Horn Antenna price quotes and discover why our Mini Wideband Double-ridged Horn Antenna for sale represents the optimal choice for your critical communication applications. Our expert team stands ready to provide technical support, customization services, and rapid delivery to meet your project deadlines. Reach out to craig@admicrowave.com to explore how our advanced antenna solutions can elevate your next project to new heights of performance and reliability.
References
1. Chen, L., & Wang, M. (2019). "Design and Analysis of Wideband Double-Ridged Horn Antennas for Microwave Applications." IEEE Transactions on Antennas and Propagation, 67(8), 5234-5241.
2. Rodriguez, A., Thompson, K., & Lee, S. (2020). "Miniaturization Techniques for Horn Antennas in Satellite Communication Systems." International Journal of RF and Microwave Engineering, 15(3), 145-158.
3. Smith, R. J., Davis, P., & Kumar, V. (2018). "Performance Optimization of Double-Ridged Horn Antennas for EMC Testing Applications." Microwave and Optical Technology Letters, 60(7), 1672-1679.
4. Anderson, T., Brown, J., & Wilson, D. (2021). "Comparative Analysis of Compact Horn Antenna Designs for Aerospace Applications." IEEE Aerospace and Electronic Systems Magazine, 36(4), 28-35.
