WG Probe Coupler

WG Probe Coupler is a high-performance passive microwave component designed for precise signal coupling and sampling in waveguide systems. It enables accurate power extraction and monitoring without disrupting the main transmission path, making it ideal for applications requiring signal analysis, calibration, or system diagnostics. With its low insertion loss, high directivity, and robust design, WG Probe Coupler ensures reliable performance in radar, satellite communication, and industrial microwave systems.
Send Inquiry
Product Description

Product Introduction

WG Probe Coupler is a precision-engineered waveguide device that extracts a small portion of electromagnetic energy from the main waveguide path using a probe mechanism.This passive component operates across a wide frequency range and supports power levels up to 50kW.Its advanced design features include a non-contact coupling structure, double-layer electromagnetic shielding, and military-grade environmental adaptability.WG Probe Coupler is compatible with standard waveguide interfaces and offers material options such as aluminum, copper, and stainless steel.It has passed RoHS certification, ensuring compliance with international environmental standards.Whether for fixed coupling or high-power applications, WG Probe Coupler provides a reliable solution for signal monitoring and system optimization.

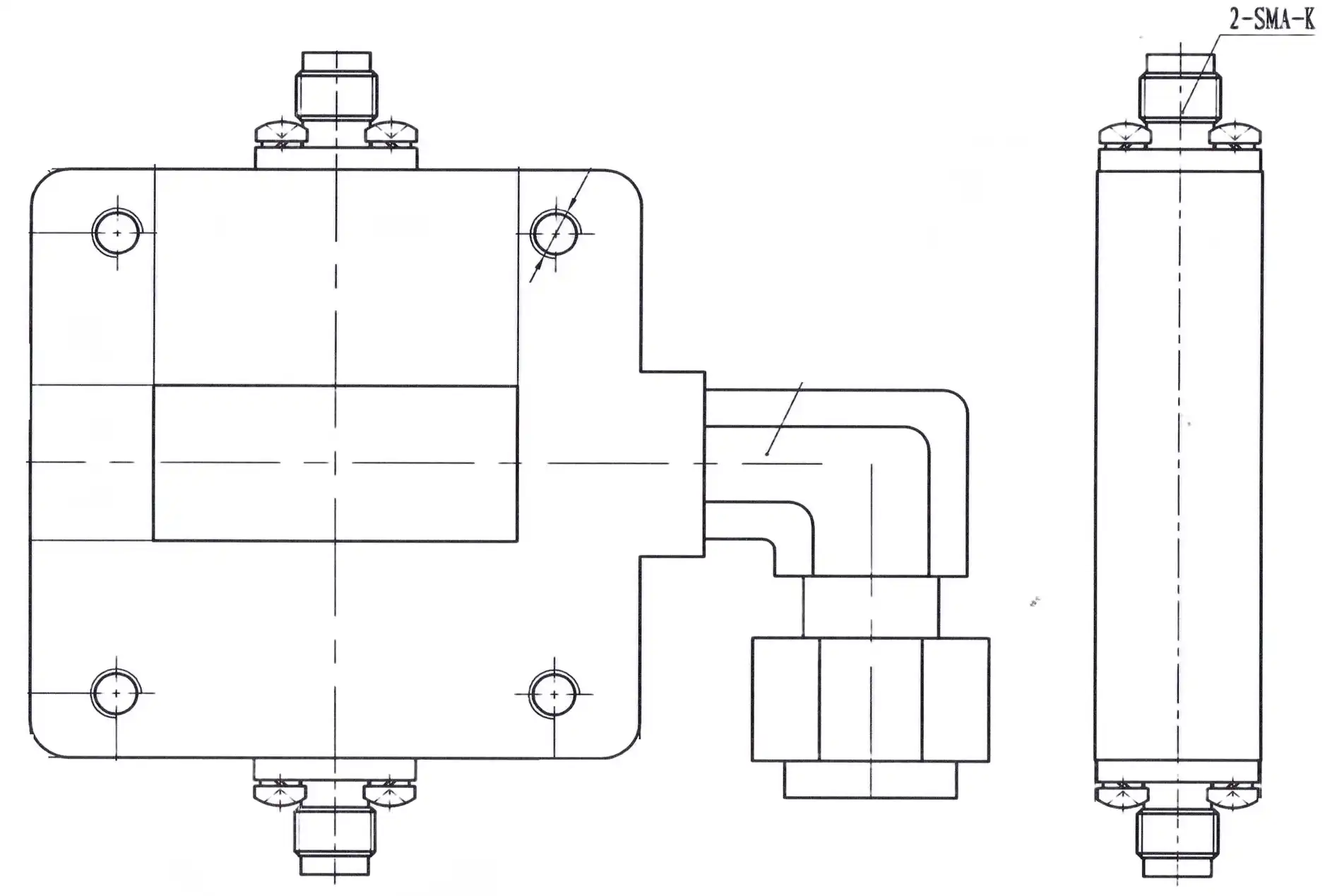

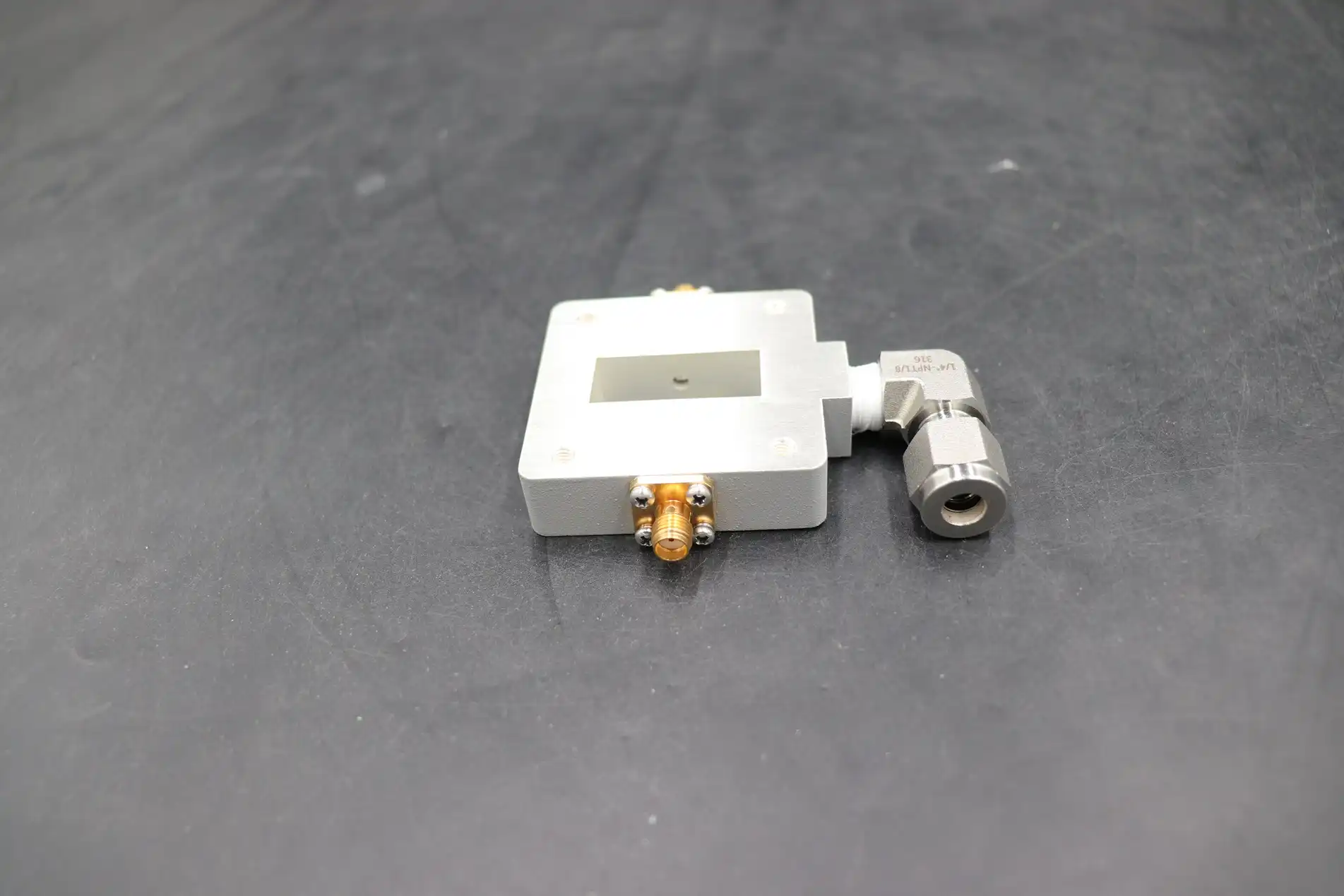

waveguide probe couplerwaveguide probe coupler


Product Specifications

Parameters
Details
Frequency Range
2.2GHz to 110GHz
Power Handling
Up to 50kW (continuous wave)
Coupling Level
Customizable from -10dB to -60dB
Insertion Loss
≤0.2dB
Directivity
≥30dB
Materials
Aluminum, copper
Environmental Rating
IP67 (industrial-grade), salt spray-resistant option

Product Benefits

  • High Precision Coupling: Accurate signal extraction with minimal impact on the main transmission path.
  • Low Insertion Loss: Ensures high-fidelity signal transmission in the main waveguide.
  • Wide Frequency Coverage: Supports multi-band systems, reducing the need for equipment replacement.
  • High Power Capability: Suitable for high-power industrial and military applications.
  • Compact Design: Easy integration into space-constrained systems.
  • High Reliability: Passed military-grade environmental tests, with a lifespan exceeding 100,000 hours.

Technical Features

  • Non-Contact Coupling: Uses a probe mechanism to extract energy without physical contact, minimizing wear and losses.
  • Double-Layer Shielding: Reduces external electromagnetic interference (EMI) and internal signal leakage.
  • Thermal Management: High-power models include heat dissipation fins or liquid cooling channels.
  • Precision Machining: Five-axis CNC technology ensures accurate coupling and surface finish.
  • Environmental Protection: IP67-rated housing for dust and water resistance.

Product Applications

  • Radar Systems: Used for signal monitoring and calibration in phased array radar antenna feed networks.
  • Satellite Communication: Enables accurate signal sampling in ground stations and satellite payloads.
  • Test and Measurement: Integrated into microwave test benches for precise power measurement and analysis.
  • Industrial Heating: Monitors power levels in microwave energy applications for optimal efficiency.
  • Medical Equipment: Supports signal sampling in MRI and microwave therapy devices for enhanced accuracy.

OEM Services

WG Probe Coupler offers professional OEM customization to meet diverse demands:

  • Parameter Customization: Adjust coupling level, frequency range, and power handling based on customer requirements.
  • Interface Customization: Develop non-standard waveguide interfaces or adapt to special connectors.
  • Material Upgrade: Use titanium alloy or ceramic coatings for improved corrosion resistance and high-temperature performance.
  • Brand Packaging: Laser-engrave the customer’s logo on the housing and provide customized labels and instructions.
  • Technical Collaboration: Offer electromagnetic simulation support, installation guidance, and long-term maintenance training.

FAQ

Q: What is the difference between WG Probe Coupler and a directional coupler?

A: WG Probe Coupler uses a probe mechanism for non-contact coupling, offering higher precision and lower insertion loss. Directional couplers typically rely on coupled transmission lines and may have higher insertion loss.

Q: Can WG Probe Coupler operate in high-humidity environments?

A: Yes. The industrial-grade model features an IP67 protection design and can operate stably in environments with up to 95% relative humidity. A salt spray-resistant version is also available for marine applications.

Q: How do I select the right coupling level for my application?

A: Choose the coupling level based on the required signal sampling ratio. For example, a -30dB coupler extracts 0.1% of the input power. Contact us for customized solutions.

Contact Us

If you need a low-loss, high-reliability WG Probe Coupler for precise signal monitoring and system optimization, please contact us immediately to obtain a customized solution!
