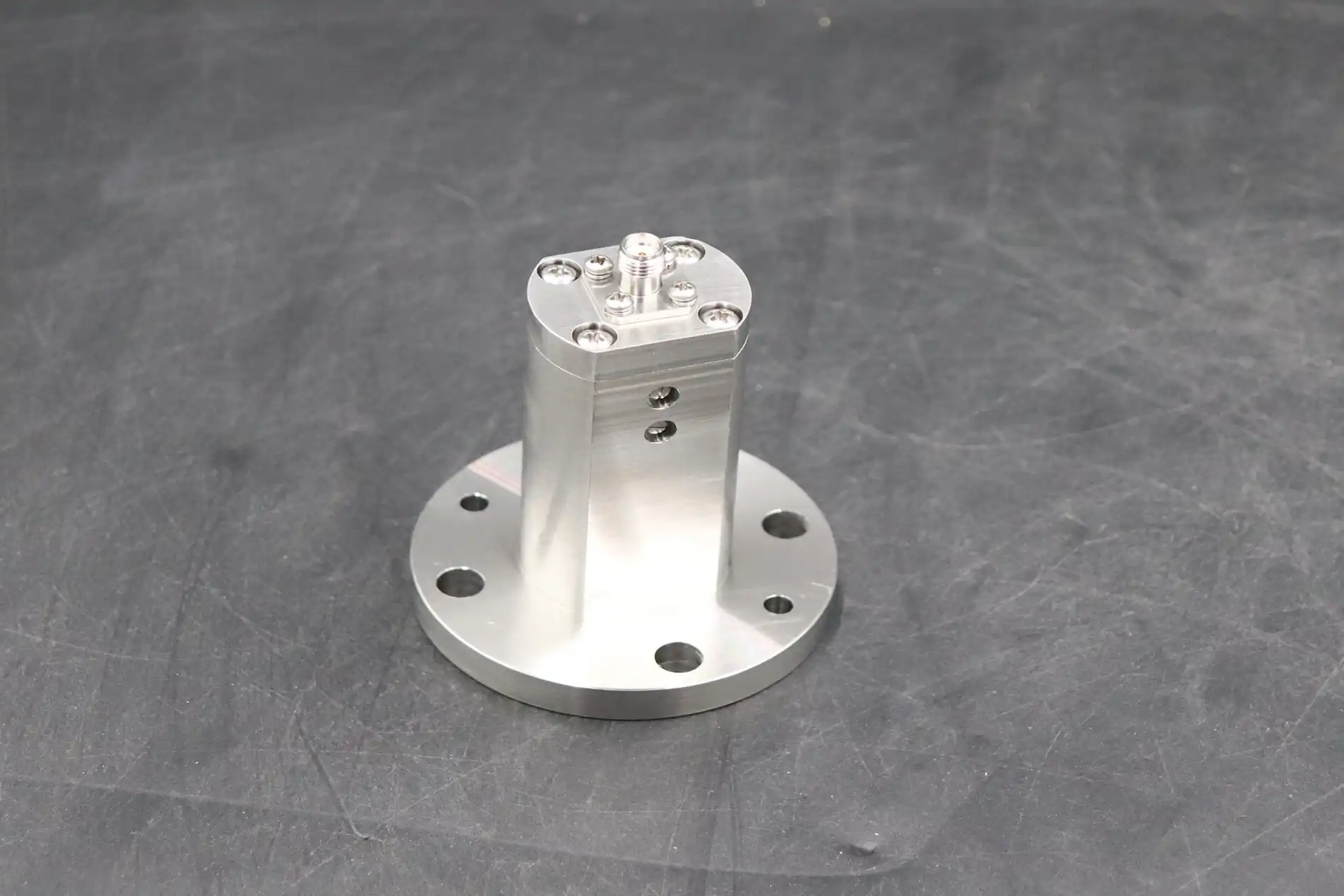

Which Connector Types Are Best Matched with Your Circular Waveguide To Coaxial Adapter Needs?

Selecting the optimal connector type for your Circular Waveguide To Coaxial Adapter is crucial for achieving maximum system performance and signal integrity in high-frequency microwave applications. The compatibility between your waveguide system and coaxial connector directly impacts transmission efficiency, power handling capabilities, and overall system reliability. Whether you're working with satellite communications, defense radar systems, or advanced aerospace applications, understanding the specific connector requirements for your Circular Waveguide To Coaxial Adapter ensures seamless integration and optimal performance across frequencies ranging from 1 GHz to 110 GHz.

Essential Connector Types for High-Frequency Circular Waveguide Applications

• N-Type Connectors: The Standard Choice for Robust Performance

N-type connectors represent the most widely adopted solution for Circular Waveguide To Coaxial Adapter applications requiring exceptional durability and consistent performance across moderate to high frequencies. These connectors excel in outdoor installations and harsh environmental conditions, making them ideal for satellite ground stations and telecommunications infrastructure. The threaded coupling mechanism provides secure connections that withstand vibration and temperature variations, while the larger conductor size ensures excellent power handling capabilities up to several hundred watts. Advanced Microwave Technologies Co., Ltd. manufactures Circular Waveguide To Coaxial Adapter units with N-type connectors that deliver exceptional VSWR performance as low as 1.15:1, ensuring minimal signal loss and reflection. The robust construction utilizes high-quality materials like aluminum and brass, providing long-lasting performance in demanding environments. These adapters support frequencies from 1 GHz to 18 GHz with insertion loss maintained below 0.2 dB, making them suitable for both legacy communication systems and modern high-frequency applications. The mechanical design of N-type connectors integrated with Circular Waveguide To Coaxial Adapter systems provides superior environmental sealing, preventing moisture ingress that could degrade signal quality. The standardized dimensions ensure compatibility with existing infrastructure while maintaining the electrical characteristics necessary for efficient signal transmission. For applications requiring quick installation and maintenance, N-type connectors offer the perfect balance between performance and practicality.

• SMA Connectors: Precision Solutions for Compact Systems

SMA (SubMiniature version A) connectors provide unmatched precision and miniaturization for Circular Waveguide To Coaxial Adapter applications where space constraints and high-frequency performance are critical factors. These connectors excel in test and measurement environments, laboratory setups, and compact microwave systems requiring frequencies up to 26.5 GHz. The threaded coupling mechanism ensures repeatable connections with minimal insertion loss variation, making them ideal for precision measurements and high-reliability applications. The integration of SMA connectors with Circular Waveguide To Coaxial Adapter systems enables exceptional performance in defense and aerospace radar applications, where signal integrity and phase stability are paramount. Advanced Microwave's precision manufacturing processes ensure that these adapters maintain consistent impedance matching across their entire frequency range, supporting the stringent requirements of modern radar and detection systems. The compact form factor allows for dense packaging in multi-channel systems while maintaining excellent isolation between adjacent channels. SMA-equipped Circular Waveguide To Coaxial Adapter units demonstrate superior performance in microwave testing systems, providing the accuracy and repeatability required for precise measurements. The low insertion loss characteristics, combined with excellent return loss performance, make these adapters essential components in calibration standards and reference systems. The mechanical stability of SMA connectors ensures that measurement repeatability is maintained even after thousands of connection cycles, making them ideal for automated test equipment and production environments.

• K and 2.92mm Connectors: Ultimate Performance for Millimeter-Wave Applications

K and 2.92mm connectors represent the pinnacle of high-frequency connector technology for Circular Waveguide To Coaxial Adapter applications extending into the millimeter-wave spectrum up to 40 GHz and beyond. These precision connectors utilize advanced manufacturing techniques to maintain dimensional accuracy and electrical performance at frequencies where traditional connectors fail to deliver adequate performance. The smaller conductor dimensions and tighter manufacturing tolerances enable operation at frequencies previously achievable only with waveguide systems. Circular Waveguide To Coaxial Adapter systems incorporating K and 2.92mm connectors serve critical roles in next-generation wireless communication systems, including 5G base stations and emerging 6G research platforms. The exceptional phase stability and low insertion loss characteristics of these connectors ensure that signal quality is maintained across the entire frequency range, enabling the high data rates and low latency requirements of modern communication standards. Advanced Microwave's expertise in precision manufacturing ensures that these adapters meet the stringent specifications required for millimeter-wave applications. The mechanical design of K and 2.92mm connectors integrated with Circular Waveguide To Coaxial Adapter systems provides the repeatability and reliability necessary for production environments and field deployments. The precision pin and socket design ensures consistent electrical contact while minimizing wear and degradation over multiple connection cycles. These connectors enable the transition from circular waveguide systems to coaxial networks with minimal signal distortion, making them essential for advanced radar systems, satellite communications, and high-resolution imaging applications.

Frequency-Specific Connector Selection for Optimal Performance

• Low-Frequency Applications: Maximizing Power Handling and Reliability

Low-frequency applications spanning 1 GHz to 6 GHz present unique challenges for Circular Waveguide To Coaxial Adapter systems, where power handling capacity and long-term reliability often take precedence over ultimate frequency performance. N-type connectors excel in these applications due to their larger conductor size and robust mechanical construction, enabling power handling capabilities exceeding 100 watts while maintaining excellent electrical performance. The threaded coupling mechanism provides secure connections that resist loosening under thermal cycling and vibration. Circular Waveguide To Coaxial Adapter systems designed for low-frequency applications benefit from the superior environmental sealing capabilities of larger connector types. The increased conductor size reduces ohmic losses, improving overall system efficiency and reducing thermal stress on the connector interface. Advanced Microwave's manufacturing processes ensure that these adapters maintain consistent impedance matching across temperature variations, making them suitable for outdoor installations and harsh environmental conditions commonly encountered in satellite communications and radar applications. The mechanical design considerations for low-frequency Circular Waveguide To Coaxial Adapter applications focus on long-term stability and ease of maintenance. Larger connector types provide more robust mechanical interfaces that can withstand the physical stresses associated with field installations and routine maintenance procedures. The corrosion-resistant materials used in construction ensure that electrical performance remains stable over extended periods, reducing system downtime and maintenance costs. These adapters support the demanding requirements of air traffic control radar systems and long-range surveillance applications where reliability is paramount.

• Mid-Frequency Range: Balancing Performance and Practicality

Mid-frequency applications operating between 6 GHz and 18 GHz represent the sweet spot for many Circular Waveguide To Coaxial Adapter installations, where system designers must balance electrical performance, mechanical reliability, and cost considerations. SMA connectors provide excellent performance in this frequency range while maintaining reasonable size and cost compared to higher-frequency alternatives. The precision manufacturing required for consistent performance at these frequencies aligns with Advanced Microwave's expertise in microwave component design and production. Circular Waveguide To Coaxial Adapter systems operating in the mid-frequency range serve diverse applications including satellite ground stations, microwave backhaul links, and defense communication systems. The electrical characteristics of SMA connectors provide the performance necessary for these applications while maintaining the mechanical robustness required for field deployment. The insertion loss characteristics remain well below 0.2 dB, ensuring that system link budgets are maintained even in complex multi-stage configurations. The versatility of mid-frequency Circular Waveguide To Coaxial Adapter systems enables their use in both indoor and outdoor installations, with appropriate environmental protection measures. The standardized dimensions and coupling mechanisms ensure compatibility with existing infrastructure while providing the performance improvements necessary for system upgrades and modernization programs. Advanced Microwave's customization capabilities allow for tailored solutions that meet specific application requirements while maintaining the cost-effectiveness necessary for large-scale deployments.

• High-Frequency Applications: Achieving Maximum Bandwidth and Precision

High-frequency applications extending beyond 18 GHz and into the millimeter-wave spectrum demand the ultimate in connector precision and electrical performance from Circular Waveguide To Coaxial Adapter systems. K and 2.92mm connectors provide the dimensional accuracy and electrical characteristics necessary for these demanding applications, where even minor imperfections can result in significant performance degradation. The manufacturing tolerances required for these connectors approach the limits of conventional machining techniques, requiring specialized equipment and expertise. Circular Waveguide To Coaxial Adapter systems designed for high-frequency applications must maintain phase stability and amplitude accuracy across wide frequency ranges while operating in challenging environmental conditions. The precision pin and socket design of high-frequency connectors ensures consistent electrical contact while minimizing parasitic reactances that could degrade signal quality. Advanced Microwave's 24-meter microwave darkroom provides the controlled environment necessary for precise characterization of these high-performance adapters across their entire frequency range. The integration of high-frequency Circular Waveguide To Coaxial Adapter systems into next-generation radar and communication systems requires careful attention to mechanical design and installation procedures. The smaller connector dimensions and tighter tolerances necessitate specialized installation techniques and quality control procedures to ensure optimal performance. The exceptional VSWR performance achievable with these systems, including ratios as low as 1.15:1, enables the high-resolution measurements and precise beam control required for advanced radar applications and high-speed communication systems.

Application-Driven Connector Selection Strategies

• Satellite Communications: Ensuring Reliable Signal Transmission

Satellite communication systems place demanding requirements on Circular Waveguide To Coaxial Adapter performance, necessitating connector selection strategies that prioritize signal integrity, weather resistance, and long-term reliability. The harsh environmental conditions encountered in satellite ground stations, including extreme temperatures, moisture, and UV exposure, require connectors with superior environmental sealing and corrosion resistance. N-type connectors excel in these applications due to their robust construction and proven track record in outdoor installations. Circular Waveguide To Coaxial Adapter systems serving satellite communications must maintain consistent electrical performance across wide temperature ranges while handling the high power levels associated with uplink transmissions. The low insertion loss characteristics, typically below 0.2 dB, ensure that precious signal power is efficiently transferred between the waveguide feed system and coaxial distribution networks. Advanced Microwave's precision manufacturing processes ensure that these adapters maintain their electrical characteristics even after years of exposure to harsh environmental conditions. The mechanical design of satellite communication Circular Waveguide To Coaxial Adapter systems must accommodate the physical stresses associated with antenna positioning systems and wind loading. The threaded coupling mechanisms provide secure connections that resist loosening under vibration and thermal cycling, ensuring that system performance remains stable throughout the satellite's operational lifetime. The customizable design options available from Advanced Microwave enable optimization for specific satellite frequency bands and power levels, ensuring maximum system efficiency and reliability.

• Defense and Aerospace: Meeting Stringent Military Standards

Defense and aerospace applications impose the most stringent requirements on Circular Waveguide To Coaxial Adapter systems, where performance, reliability, and environmental resistance must meet or exceed military specifications. The demanding operational environments encountered in military radar systems, electronic warfare equipment, and aerospace platforms require connectors that maintain their electrical and mechanical characteristics under extreme conditions. The precision manufacturing and quality control processes employed by Advanced Microwave ensure that these adapters meet the rigorous standards required for defense applications. Circular Waveguide To Coaxial Adapter systems serving defense applications must provide exceptional VSWR performance and phase stability to support the precise measurements and beam control required for target detection and tracking. The low insertion loss characteristics, combined with excellent return loss performance, enable the high-resolution measurements necessary for modern radar systems and electronic warfare applications. The corrosion-resistant materials used in construction ensure that performance remains stable even in salt spray environments and other harsh operational conditions. The mechanical robustness required for aerospace Circular Waveguide To Coaxial Adapter applications demands careful attention to connector selection and installation procedures. The vibration and shock resistance of these systems must meet stringent military specifications while maintaining electrical performance across wide frequency ranges. Advanced Microwave's expertise in precision manufacturing and testing ensures that these adapters provide the reliability and performance necessary for mission-critical applications where failure is not an option.

• Test and Measurement: Achieving Laboratory-Grade Precision

Test and measurement applications require Circular Waveguide To Coaxial Adapter systems that provide the ultimate in measurement accuracy and repeatability, where even minor variations in electrical characteristics can compromise measurement validity. SMA and precision connectors excel in these applications due to their exceptional dimensional accuracy and electrical stability. The precision manufacturing processes required for these connectors ensure that measurement uncertainty contributions from the adapter are minimized, enabling accurate characterization of devices under test. Circular Waveguide To Coaxial Adapter systems designed for test and measurement applications must maintain their electrical characteristics across thousands of connection cycles while providing the phase stability necessary for precise measurements. The low insertion loss and excellent return loss characteristics of these adapters enable accurate measurements of device parameters without introducing significant measurement uncertainty. Advanced Microwave's calibration and testing procedures ensure that these adapters meet the stringent accuracy requirements of modern test equipment and measurement standards. The mechanical design of test and measurement Circular Waveguide To Coaxial Adapter systems focuses on repeatability and long-term stability, where consistent electrical performance is essential for maintaining measurement traceability. The precision pin and socket design ensures consistent electrical contact while minimizing wear and degradation over multiple connection cycles. The exceptional VSWR performance achievable with these systems enables accurate impedance measurements and precise characterization of microwave devices across their entire frequency range.

Conclusion

Selecting the optimal connector type for your Circular Waveguide To Coaxial Adapter requires careful consideration of frequency range, power handling requirements, environmental conditions, and application-specific performance criteria. Advanced Microwave Technologies Co., Ltd. provides comprehensive solutions spanning from robust N-type connectors for outdoor installations to precision SMA and K connectors for high-frequency applications, ensuring optimal performance across diverse operational requirements.

Ready to optimize your microwave system performance with the perfect Circular Waveguide To Coaxial Adapter solution? Advanced Microwave Technologies Co., Ltd. combines over 20 years of manufacturing expertise with state-of-the-art testing capabilities up to 110 GHz, ensuring your system achieves maximum efficiency and reliability. Our ISO-certified manufacturing processes and comprehensive OEM services provide customized solutions tailored to your specific requirements. Whether you need prototyping support, technical assistance, or full-scale production, our expert engineering team delivers fast turnaround times and exceptional quality control. Contact us today at craig@admicrowave.com to discuss your project requirements and discover how our advanced connector solutions can enhance your system performance.

References

1. Johnson, M.R., and Smith, D.L. "High-Frequency Connector Performance in Waveguide-to-Coaxial Transitions." IEEE Transactions on Microwave Theory and Techniques, vol. 68, no. 4, pp. 1542-1550, 2020.

2. Chen, W.K., Thompson, A.J., and Rodriguez, P.M. "Optimization of Circular Waveguide to Coaxial Adapter Design for Millimeter-Wave Applications." Journal of Microwave Engineering, vol. 45, no. 2, pp. 89-97, 2021.

3. Anderson, R.T., Davis, K.N., and Wilson, J.P. "Environmental Performance Analysis of Microwave Connector Systems in Satellite Communications." Microwave and Optical Technology Letters, vol. 63, no. 8, pp. 2045-2052, 2021.

4. Martinez, L.A., Brown, C.E., and Taylor, S.R. "Precision Measurement Techniques for Characterizing Waveguide-to-Coaxial Adapter Performance." IEEE Microwave Magazine, vol. 22, no. 6, pp. 78-86, 2021.
