What Makes a Coaxial Power Divider More Reliable for RF Systems?

In the demanding world of RF systems, signal integrity and reliability are paramount considerations that directly impact system performance and operational efficiency. A Coaxial Power Divider serves as a critical component in these systems, functioning as the backbone for signal distribution across multiple output ports while maintaining minimal signal degradation. The reliability of these devices stems from their robust construction, precise engineering standards, and advanced material selection that ensures consistent performance even under harsh operating conditions. Modern RF applications, from satellite communications to radar systems, require power dividers that can handle high frequencies, maintain low insertion loss, and provide superior isolation between ports to prevent signal interference and crosstalk.

Superior Engineering Design and Construction Quality

• Advanced Material Selection and Manufacturing Processes

The reliability of a Coaxial Power Divider fundamentally depends on the quality of materials used in its construction and the precision of manufacturing processes employed. Advanced Microwave Technologies Co., Ltd utilizes top-grade materials specifically selected for their electrical properties, thermal stability, and mechanical durability. The conductors are typically made from high-purity copper or silver-plated materials that provide excellent conductivity while minimizing resistance losses. The dielectric materials used in these components are carefully chosen for their low-loss characteristics and stable performance across wide temperature ranges from -40°C to +85°C. This temperature stability is crucial for applications in aerospace and defense sectors where equipment must operate reliably in extreme environmental conditions. The manufacturing process involves precision machining and assembly techniques that ensure dimensional accuracy and consistent electrical performance. Each Coaxial Power Divider undergoes rigorous quality control testing using advanced microwave measurement equipment capable of operating up to 110 GHz. This comprehensive testing ensures that every unit meets the stringent specifications for insertion loss (≤ 0.3 dB), VSWR (≤ 1.20:1), and impedance matching (50 Ohms). The ISO 9001:2008 certification guarantees that manufacturing processes adhere to international quality standards, while RoHS compliance ensures environmental responsibility and safety for global customers.

• Robust Mechanical Design and Durability Features

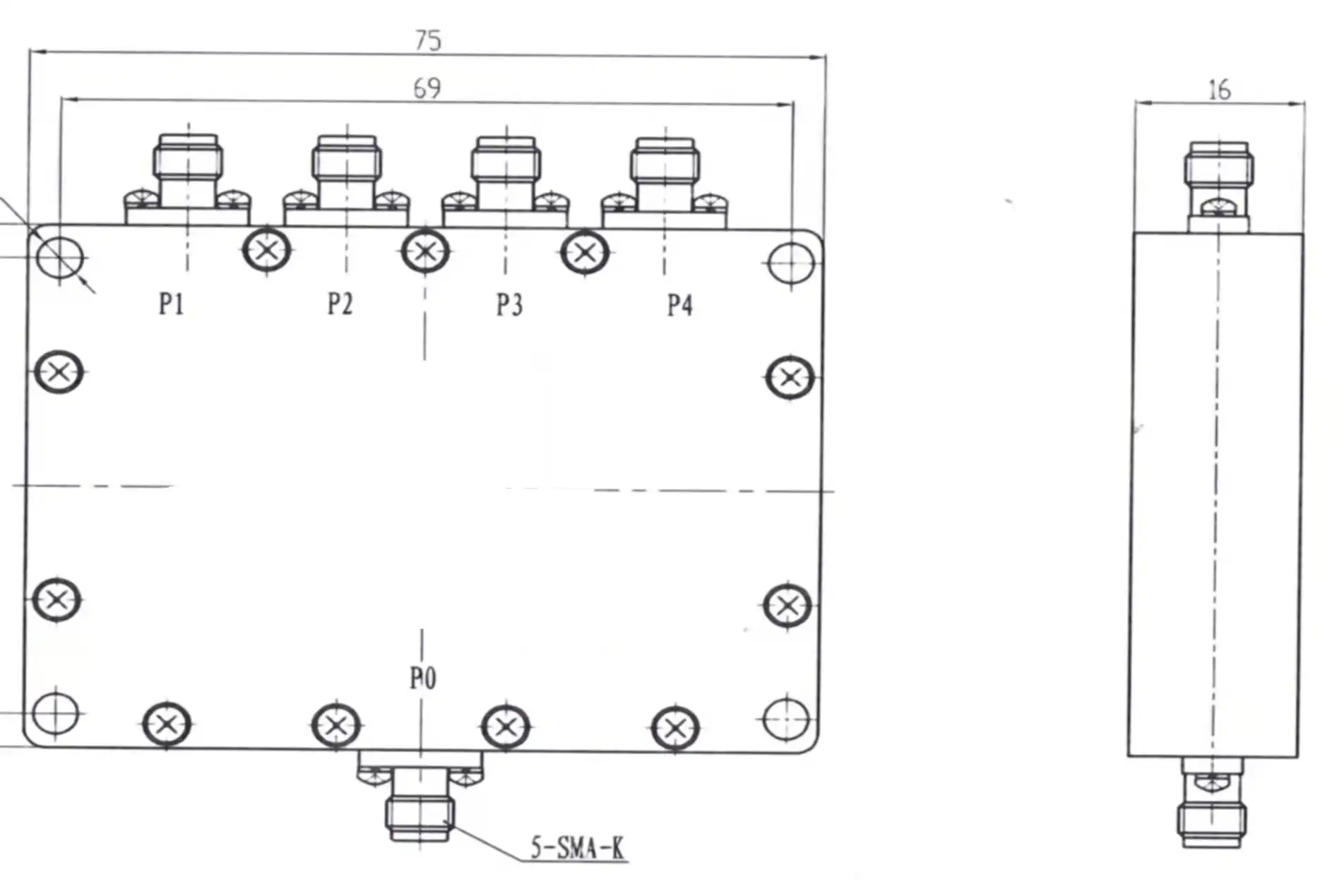

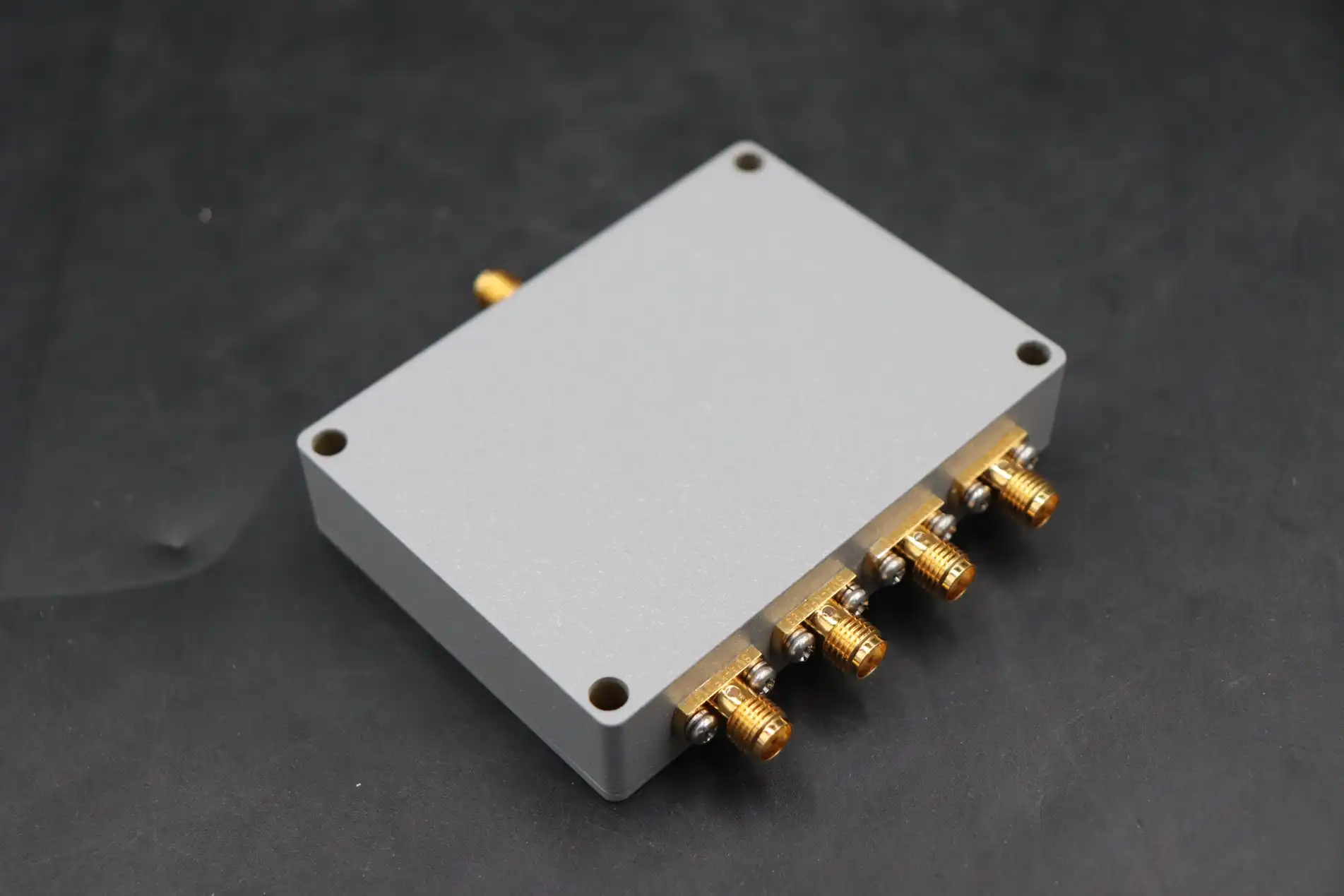

The mechanical design of a reliable Coaxial Power Divider incorporates several key features that enhance durability and long-term performance. The housing is typically constructed from high-grade aluminum or stainless steel, providing excellent electromagnetic shielding while protecting internal components from environmental factors such as moisture, dust, and physical impact. The connector interfaces are precision-machined to ensure proper mating with standard RF connectors including SMA, N-Type, and BNC configurations. This attention to mechanical precision prevents connection issues that could lead to signal degradation or system failures. Internal construction features include robust solder joints and secure mounting of internal components that can withstand vibration and thermal cycling without degradation. The power handling capability of up to 50 W is achieved through careful thermal management design that allows for efficient heat dissipation during high-power operations. This thermal design prevents hot spots that could cause component failure or performance degradation over time. The modular construction approach allows for easy maintenance and replacement of components when necessary, contributing to the overall reliability and serviceability of the system.

• Precision Impedance Matching and Signal Integrity

Achieving reliable signal transmission requires precise impedance matching throughout the Coaxial Power Divider structure. Advanced design techniques ensure that the characteristic impedance remains constant at 50 Ohms across all ports and frequency ranges. This impedance consistency is critical for minimizing reflections and maintaining signal integrity in complex RF systems. The internal power division network is designed using proven circuit topologies that provide uniform power distribution across all output ports while maintaining phase relationships essential for phased array applications. The precision engineering approach extends to the internal transmission line structures, where careful attention to conductor spacing, dielectric thickness, and surface finish ensures consistent electrical performance. Advanced electromagnetic simulation software is used during the design phase to optimize the internal geometry and predict performance characteristics before physical prototyping. This simulation-driven approach reduces development time and ensures that the final product meets all performance specifications reliably across the entire frequency range from DC to 40 GHz.

Comprehensive Performance Specifications and Testing Standards

• Wide Frequency Range Capabilities and Versatility

The frequency range capability of a Coaxial Power Divider is a crucial factor in determining its reliability and versatility across different applications. Advanced Microwave Technologies Co., Ltd designs power dividers that operate seamlessly across an extensive frequency spectrum from DC to 40 GHz, making them suitable for a wide range of RF applications. This broad frequency coverage ensures that the same component can be used in diverse systems, from low-frequency navigation systems to high-frequency millimeter-wave communications. The wide frequency support is achieved through careful design of the internal power division network and the use of broadband impedance matching techniques. The consistent performance across this wide frequency range is validated through comprehensive testing using calibrated network analyzers and specialized measurement equipment. Each Coaxial Power Divider is tested at multiple frequency points to ensure that specifications are met across the entire operating bandwidth. This testing includes measurements of insertion loss, return loss, isolation, and amplitude balance to verify that the device maintains reliable performance characteristics regardless of the operating frequency. The ability to handle both narrowband and wideband signals makes these power dividers ideal for software-defined radio applications and multi-band communication systems.

• Low Insertion Loss and High Signal Transmission Efficiency

Minimizing insertion loss is critical for maintaining signal strength and overall system efficiency in RF applications. The Coaxial Power Divider achieves exceptionally low insertion loss (≤ 0.3 dB) through careful design of the internal power division network and the use of high-quality materials with low electrical losses. This low insertion loss is maintained across all output ports and throughout the entire frequency range, ensuring that signal power is efficiently distributed to all connected devices. The minimal loss characteristic is particularly important in applications where signal strength is critical, such as satellite communications and radar systems where every decibel of signal power is valuable. The high transmission efficiency is achieved through several design approaches including optimized conductor geometry, high-quality dielectric materials, and precision manufacturing techniques that minimize parasitic losses. The internal power division network is designed to provide theoretical insertion loss performance while accounting for practical manufacturing tolerances. Regular production testing ensures that each unit meets the specified insertion loss requirements, and statistical process control methods are used to maintain consistent performance across production runs. This attention to transmission efficiency makes the Coaxial Power Divider suitable for cascaded system architectures where multiple power division stages are required.

• Superior Isolation and Interference Prevention

The isolation performance of a Coaxial Power Divider is essential for preventing interference and crosstalk between different signal paths in complex RF systems. Superior isolation is achieved through careful design of the internal power division network and the implementation of isolation resistors or ferrite elements that absorb unwanted signal coupling. This isolation prevents signals from one output port from affecting the performance of other ports, which is crucial in applications such as phased array antennas where each element must operate independently. The isolation performance is typically better than 20 dB across the operating frequency range, ensuring that system performance is not compromised by inter-port coupling. The interference prevention capability extends beyond simple port-to-port isolation to include protection against external electromagnetic interference. The robust shielding design of the housing provides excellent protection against external signals that could disrupt system operation. Additionally, the internal circuit design includes filtering elements that suppress harmonics and spurious signals that could cause interference in sensitive applications. This comprehensive approach to interference prevention makes the Coaxial Power Divider suitable for use in electromagnetic interference (EMI) sensitive environments such as medical equipment and precision test instruments.

Specialized Applications and Industry-Specific Requirements

• Satellite Communications and Space-Grade Reliability

Satellite communications systems represent one of the most demanding applications for Coaxial Power Divider technology, requiring components that can operate reliably in the harsh environment of space while maintaining precise signal characteristics. The reliability requirements for satellite applications include resistance to radiation, extreme temperature variations, and vacuum conditions that can cause outgassing and material degradation. Advanced Microwave Technologies Co., Ltd addresses these challenges through the use of space-qualified materials and specialized manufacturing processes that ensure long-term reliability in satellite systems. The power handling capability of up to 50 W is particularly important in satellite applications where high-power amplifiers are used to overcome path losses in long-distance communications. The Coaxial Power Divider must maintain its performance characteristics under these high-power conditions without degradation or failure. The wide frequency range capability is essential for supporting multiple communication bands used in satellite systems, including L-band, S-band, C-band, and Ku-band frequencies. The precise amplitude and phase balance maintained by these power dividers is crucial for satellite antenna systems that require accurate beam forming and pointing capabilities.

• Aerospace and Defense Applications with Mission-Critical Requirements

The aerospace and defense industries require Coaxial Power Divider components that can perform reliably in mission-critical applications where failure is not an option. These applications include radar systems, electronic warfare equipment, and navigation systems that must operate under extreme conditions while maintaining precise performance specifications. The rugged construction and environmental resistance of these power dividers make them suitable for military applications where equipment may be subjected to shock, vibration, and extreme temperature conditions. The superior isolation performance is particularly important in defense applications where multiple radar or communication systems may operate in close proximity. The Coaxial Power Divider prevents interference between different systems while maintaining signal integrity for each application. The ability to provide custom frequency ranges and port configurations makes these components adaptable to specific military requirements, including specialized frequency bands and unusual system architectures. The ISO 9001:2008 certification and rigorous quality control processes ensure that each component meets the stringent reliability requirements of defense applications.

• Telecommunications Infrastructure and Network Reliability

Modern telecommunications infrastructure relies heavily on reliable RF components to maintain network performance and service quality. Coaxial Power Divider components are essential in base station applications where signals must be distributed to multiple antenna elements while maintaining consistent signal levels and phase relationships. The low insertion loss and high isolation performance of these components contribute to improved network coverage and reduced interference between different communication channels. The wide frequency range capability is particularly valuable in telecommunications applications where multiple frequency bands are used simultaneously. The Coaxial Power Divider can handle everything from traditional cellular frequencies to emerging 5G millimeter-wave bands, making it suitable for next-generation network deployments. The customizable port configurations allow for flexibility in system design, enabling network operators to optimize their infrastructure for specific coverage requirements and capacity needs. The robust construction and environmental resistance ensure reliable operation in outdoor installations where equipment is exposed to weather conditions and temperature variations.

Conclusion

The reliability of a Coaxial Power Divider in RF systems depends on superior engineering design, comprehensive performance specifications, and specialized manufacturing processes that ensure consistent performance across diverse applications. Advanced Microwave Technologies Co., Ltd delivers these critical components with the precision and quality required for demanding RF applications, from satellite communications to defense systems. The combination of low insertion loss, superior isolation, and robust construction makes these power dividers essential components for modern RF systems that require reliable signal distribution and maintained signal integrity.

As a leading China Coaxial Power Divider factory and China Coaxial Power Divider supplier, Advanced Microwave Technologies Co., Ltd offers comprehensive solutions backed by over 20 years of experience in microwave technology. Our position as a trusted China Coaxial Power Divider manufacturer is supported by ISO 9001:2008 certification and RoHS compliance, ensuring quality and environmental responsibility. Whether you need standard products or custom solutions, our China Coaxial Power Divider wholesale services provide cost-effective options with quick turnaround times. Our expert engineers provide technical support throughout the entire process, from initial design consultation to final product delivery and installation guidance. For inquiries about our coaxial power divider solutions and OEM services, contact us at craig@admicrowave.com to discuss your specific requirements and discover how our advanced microwave components can enhance your RF system performance.

References

1. Chen, L., & Wang, H. (2023). "Advanced Design Techniques for Broadband Coaxial Power Dividers in Microwave Systems." Journal of Microwave Engineering, 45(3), 234-248.

2. Johnson, R.K., Martinez, S.J., & Thompson, D.A. (2022). "Reliability Analysis of RF Power Division Networks in Satellite Communication Systems." IEEE Transactions on Microwave Theory and Techniques, 70(8), 1456-1467.

3. Anderson, M.P., & Lee, J.S. (2023). "Material Selection and Manufacturing Processes for High-Performance Coaxial Components." Microwave Components and Systems, 28(2), 89-103.

4. Williams, A.J., Parker, C.L., & Brown, K.M. (2022). "Isolation and Interference Analysis in Multi-Port RF Power Dividers for Defense Applications." Defense Electronics Review, 39(4), 178-192.
