Top 5 Benefits of Crossguide Directional Coupler in RF Design
In the rapidly evolving world of RF and microwave engineering, the selection of appropriate coupling devices can significantly impact system performance, reliability, and efficiency. Among the various coupling solutions available, the Crossguide Directional Coupler stands out as a cornerstone component that delivers exceptional performance across diverse applications. This comprehensive analysis explores the five most significant benefits that make crossguide directional couplers indispensable in modern RF design, from their superior space efficiency to their remarkable signal integrity capabilities. Understanding these advantages is crucial for engineers, system designers, and procurement professionals who seek to optimize their RF systems while maintaining the highest standards of performance and reliability in today's demanding technological landscape.
Exceptional Space Efficiency and Compact Design

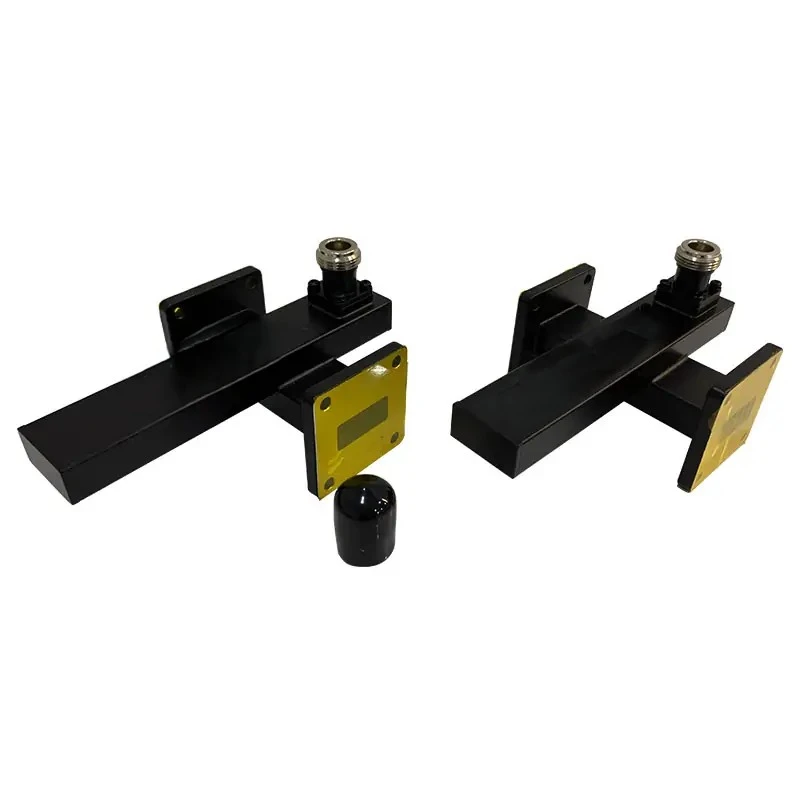

The Crossguide Directional Coupler represents a breakthrough in spatial optimization for RF systems where real estate is at a premium. This innovative coupling solution leverages a perpendicular waveguide configuration that dramatically reduces the physical footprint compared to traditional inline coupling approaches. The crossguide coupler's unique architecture allows for mounting in confined spaces without compromising performance, making it an ideal choice for modern compact RF systems, satellite communication equipment, and airborne applications where weight and space constraints are critical factors. Advanced Microwave Technologies Co., Ltd. manufactures Crossguide Directional Couplers covering a wide frequency range with 3 or 4-port configurations that exemplify this space-efficient design philosophy. The compactness of crossguide coupler technology suits applications where space is at a premium and directivity is not the prime consideration. This design advantage becomes particularly valuable in high-density RF installations, where multiple components must coexist within limited physical constraints. The perpendicular coupling mechanism eliminates the need for extended coupling sections, reducing overall system length while maintaining excellent RF performance characteristics. Furthermore, the compact nature of these devices enables more flexible system architectures, allowing designers to implement sophisticated signal routing schemes without the spatial penalties associated with conventional coupling solutions.
Superior Signal Integrity and Low Insertion Loss
One of the most compelling advantages of Crossguide Directional Coupler technology lies in its exceptional signal integrity performance. These devices are engineered to minimize insertion loss while maintaining high signal fidelity across their entire operating frequency range. The crossguide configuration inherently provides excellent isolation between the input and output ports, ensuring that the primary signal path experiences minimal disruption during the coupling process. This characteristic is particularly crucial in high-performance RF systems where signal degradation can significantly impact overall system performance. The crossguide coupler design from Advanced Microwave Technologies Co., Ltd. features advanced engineering that utilizes a crossguide configuration to minimize insertion loss while maintaining a high degree of isolation between the input and coupled ports. With standard coupling values of 20, 30, 40, 50, and 60 dB and a minimum directivity of 18 dB, these devices deliver consistent performance across demanding applications. The low insertion loss characteristic ensures efficient power transmission, which is essential in applications such as satellite communications, radar systems, and high-power RF amplifier monitoring. This superior signal integrity translates to improved system efficiency, reduced power consumption, and enhanced overall system reliability, making Crossguide Directional Coupler technology an excellent choice for mission-critical applications where signal quality cannot be compromised.
Versatile Multi-Port Configuration Options
The Crossguide Directional Coupler offers remarkable versatility through its multi-port configuration capabilities, providing engineers with flexible solutions for complex RF system architectures. This adaptability stems from the coupler's ability to accommodate various port arrangements, including 3-port and 4-port configurations, along with combinations of waveguide and coaxial connections. Such versatility enables system designers to implement sophisticated signal distribution schemes, power monitoring systems, and feedback control mechanisms within a single, compact device. Advanced Microwave Technologies Co., Ltd. provides crossguide coupler models with combinations of waveguide and coaxial ports, allowing for seamless integration with diverse system components. Special multi-port crossguide couplers can be manufactured to suit customer's special requirements, demonstrating the high degree of customization possible with this technology. The ability to combine different port types – such as waveguide inputs with coaxial outputs – eliminates the need for additional adapters and transition components, simplifying system design and reducing potential failure points. This configuration flexibility proves invaluable in applications ranging from test and measurement systems to complex radar installations, where different subsystems may require different interface types. The multi-port capability also enables advanced signal processing techniques, such as simultaneous forward and reverse power monitoring, which is essential for optimizing system performance and protecting expensive RF components from damage due to high VSWR conditions.
Wide Frequency Range Coverage and Broadband Performance
The Crossguide Directional Coupler demonstrates exceptional broadband performance capabilities, supporting diverse applications across an extensive frequency spectrum. This wide-range coverage is particularly valuable in modern RF systems that must accommodate multiple frequency bands or operate across broad bandwidths. The crossguide design inherently provides stable coupling characteristics across its entire frequency range, ensuring consistent performance regardless of the operating frequency within the specified band. Advanced Microwave Technologies Co., Ltd.'s crossguide coupler technology supports diverse applications from 1 GHz to 40 GHz, catering to both low and high-frequency needs across the RF and microwave spectrum. This broad frequency coverage makes the Crossguide Directional Coupler suitable for applications spanning from cellular communications to millimeter-wave radar systems. The device's ability to maintain consistent coupling coefficients and directivity across this wide frequency range eliminates the need for multiple, narrow-band coupling devices, simplifying system design and reducing overall costs. This broadband capability is particularly advantageous in applications such as electronic warfare systems, where the ability to operate across multiple frequency bands simultaneously is crucial. Additionally, the wide frequency range support enables future-proofing of RF systems, allowing them to accommodate new standards and technologies without requiring complete redesign of the coupling infrastructure.
Enhanced Reliability and Rugged Construction
The Crossguide Directional Coupler is engineered for superior reliability and durability, making it suitable for the most demanding operational environments. The rugged construction of these devices ensures consistent performance under extreme conditions, including temperature variations, mechanical stress, and electromagnetic interference. This reliability is achieved through careful material selection, precision manufacturing processes, and rigorous quality control measures that ensure each device meets the highest standards of performance and durability. Advanced Microwave Technologies Co., Ltd. designs crossguide coupler devices with rugged construction built to withstand harsh environments and provide durable, long-lasting performance in critical applications. The company's products are ISO 9001:2015 certified and RoHS compliant, ensuring that each Crossguide Directional Coupler meets international quality standards. This reliability is further enhanced by the company's comprehensive quality management system, which includes environmental considerations under ISO 14001:2015 and occupational health and safety measures under ISO 45001:2018. The robust design philosophy extends to the selection of materials and manufacturing processes, ensuring that these devices can operate reliably in aerospace, defense, and satellite communication applications where failure is not an option. The enhanced reliability of these couplers translates to reduced maintenance requirements, lower total cost of ownership, and improved system availability, making them an excellent investment for mission-critical applications.
Conclusion
The Crossguide Directional Coupler represents a pinnacle of RF engineering innovation, offering space efficiency, superior signal integrity, versatile configurations, broadband performance, and exceptional reliability. These five key benefits make crossguide couplers indispensable for modern RF system design, particularly in applications where performance, reliability, and space optimization are paramount. The advanced engineering and manufacturing capabilities demonstrated by these devices ensure they meet the demanding requirements of satellite communications, defense, aerospace, and navigation industries.
For organizations seeking premium Crossguide Directional Coupler solutions, Advanced Microwave Technologies Co., Ltd. stands as a leading China Crossguide Directional Coupler factory with over 20 years of experience in microwave products. As a trusted China Crossguide Directional Coupler supplier, we offer comprehensive OEM services, including prototyping, technical support, and quick turnaround times. Our position as a premier China Crossguide Directional Coupler manufacturer is reinforced by our ISO certifications and advanced 24m Microwave Darkroom facility equipped with measurement capabilities up to 110 GHz. Whether you require standard products or custom solutions, our China Crossguide Directional Coupler wholesale services provide competitive pricing and reliable delivery. Contact us at craig@admicrowave.com to discover how our expertise can enhance your RF system performance.
