Thermal Budget Constraints in 5G Antenna with Phase Shifter Arrays
Thermal budget constraints in a 5g antenna with phase shifter represent one of the most pressing technical challenges facing network infrastructure today. The thermal budget defines the maximum heat that antenna systems can safely dissipate while maintaining performance integrity. As millimeter-wave frequencies and massive MIMO configurations push power densities to unprecedented levels, effective thermal management separates reliable deployments from system failures. Phase shifters, the beam-steering backbone of advanced arrays, contribute significantly to thermal loads—particularly active variants that consume considerably more power than passive alternatives. Understanding these thermal limitations is essential for procurement teams selecting solutions that won't compromise network uptime or degrade signal quality under real-world operating conditions.
Understanding Thermal Budget Constraints in 5G Antenna Arrays
The thermal budget includes all the parts of the antenna system that generate heat, such as RF transceivers and digitally controlled phase-changer modules. Beamforming arrays in modern 5G deployments have hundreds or even thousands of radiating elements, and each one needs precise phase control to direct energy to the right people. This level of density creates heat hotspots that need careful engineering attention.
Thermal loading is directly related to how much power is used for operations. Active phase shifters use variable-gain amplifiers and semiconductor switches. Depending on the frequency band and control resolution, each element can lose anywhere from 50 to 200 milliwatts of power. When you multiply this by a 256-element matrix that works nonstop, the total amount of heat produced is so high that it needs complex cooling systems. Passive phase shifter technologies use less power, but they give up flexibility in beamforming and tuning speed.
Conditions in the environment make heat problems worse. Base stations on roofs in sunbelt areas are exposed to temperatures above 50°C, and enclosed radomes keep the heat from escaping. Requirements for wind loads and water entry cause enclosures to be small, which blocks natural convection paths. Because of these things, makers have to choose between speed and dependability, which limits the thermal margins they can use.

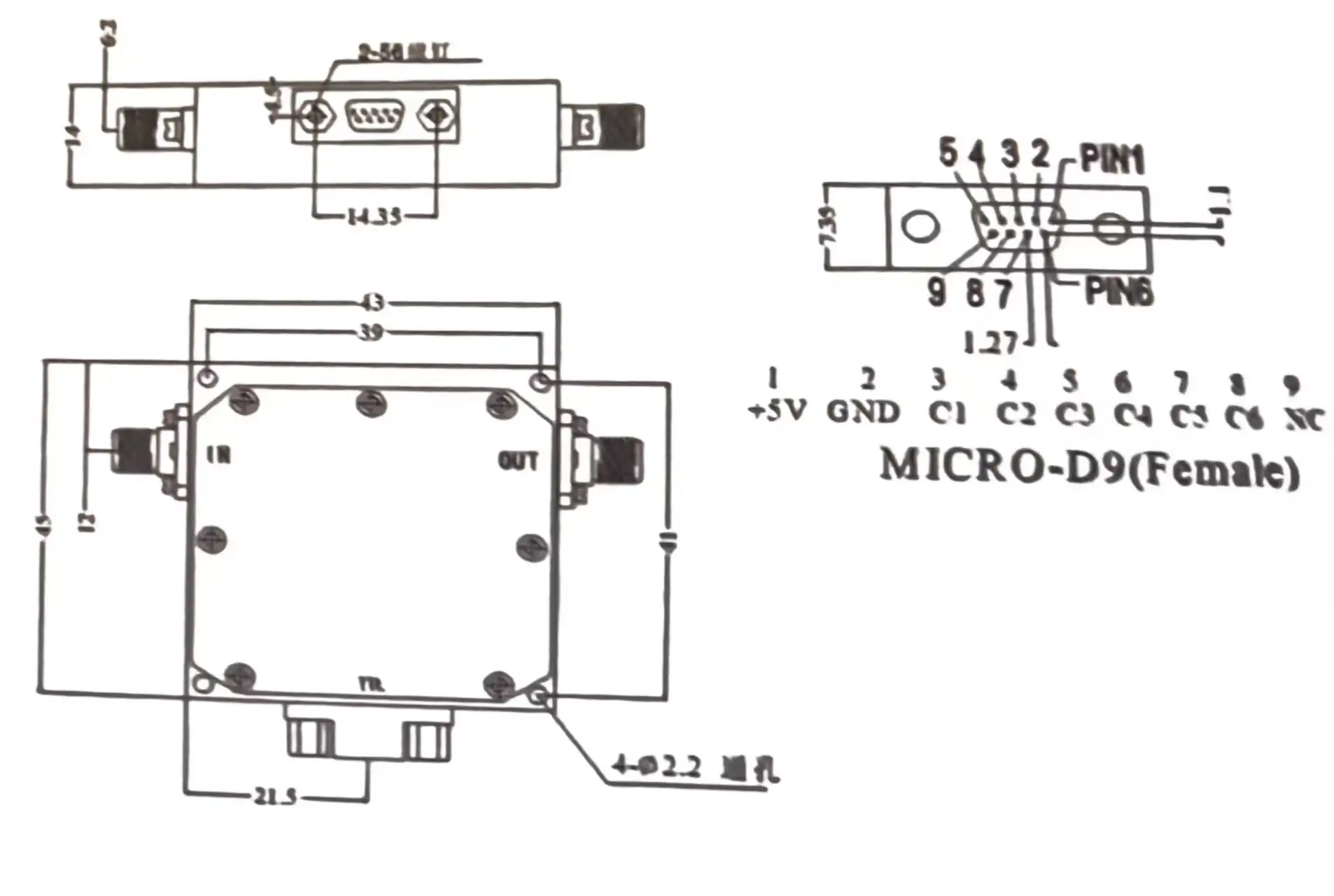

How Phase Shifters Impact Thermal Load
The design of a phase shifter has a big impact on its heat properties. Digital phase shifters made with GaAs or GaN semiconductors lose power in different ways than traditional systems based on ferrites. Semiconductor systems allow beam switching in microseconds, but they produce steady-state heat from control software and biasing networks. The RF insertion loss, which is usually between 3 and 6 dB in industrial settings, turns the signal energy straight into heat inside the substrate.
The actual thermal impact changes depending on the duty cycle. Compared to continuous-wave applications, time-division duplex systems that are working at 50% transmit duty lose less power on average. Dynamic beamforming algorithms that focus energy in one place instead of spreading it out in all directions can, strangely, make certain array elements hotter in specific places, causing temperature differences that put stress on solder joints and interconnects.
Signal Integrity and Reliability Implications
Several things happen when junction temperatures get too high that hurt the performance of a phase shifter. As the temperature rises, the mobility of semiconductor carriers drops, which changes the insertion loss and phase accuracy outside of the standard windows. At millimeter-wave frequencies, a temperature rise of 30°C can cause phase errors of more than 5 degrees, which is enough to change beam patterns and lower the effective power that is sent out.
When thermal budgets are exceeded, long-term dependability is lost. When temperatures are high, electromigration in the metallization layers speeds up, which finally leads to open circuits. Solder fatigue from temperature cycles makes the connection between the die and the package less strong. When operating above the recommended junction temperature for a long time, the mean time between failures drops by a factor of ten. This has a direct effect on the total cost of ownership for telecom companies that manage thousands of cell sites.
Analyzing Causes and Technical Challenges of Thermal Constraints
In stepped arrays, heat comes from a number of linked sources that need to be understood as a whole. In most cases, power amplifiers that change DC energy to RF energy only work 30–40% of the time, which means that 60–70% of the power that goes into them is wasted as heat. The thermal load increases significantly when paired with phase shifter losses and feed network waste.
Integration density trends make heat control even more difficult for a 5g antenna with phase shifter. Packaging rules that make it harder for heat to spread are caused by the industry's push for smaller form factors and lighter assemblies to make installation easier. At 28 GHz, antenna parts spaced at half-wavelength intervals don't leave much room for thermal vias or heat sink connection. This geometric fact pushes heat through narrow paths, which raises temperatures in the area.
Material and Packaging Limitations
The materials used to make circuit boards put basic limits on how much heat can move. Standard FR-4 surfaces have a thermal conductivity of about 0.3 W/mK, which means that heat-generating parts and cooling contacts on the outside can't move heat very quickly. PTFE materials used in high-frequency laminates make them better at conducting electricity, but they still have the same temperature limits. Metal-core PCBs or ceramic substrates make it easier for heat to spread, but they cost more to make and are harder to design.
New packaging methods add to the thermal protection. Wire bond connections between semiconductor die and lead frames add resistance that changes based on the length of the bond and the metal used. Flip-chip bump interconnects shorten the thermal path length, but you have to be careful when choosing the underfill material to avoid mismatches in the coefficient of thermal expansion. For environmental protection, hermetic sealing often keeps heat inside packages, so thermal vias need to be placed on the chassis grounds on purpose.
Environmental and Operational Factors
Ambient temperature changes in different placement areas require a wide working range. When equipment is designed for temperatures between -40°C and +65°C, it has to be able to handle internal self-heating that raises joint temperatures well above ambient. As materials expand and contract at different rates, diurnal cycling causes thermal fatigue stress that weakens mechanical bonds over time.
Beamforming techniques change how heat is distributed in real time. When arrays focus multiple beams on areas with a lot of traffic, some phase shifter groups work at full power for a long time while others do nothing. This uneven loading causes temperature differences across the aperture, which makes thermal models harder and calls for flexible cooling methods or limiting the power.
Strategies to Optimize Thermal Performance in 5G Phase Shifter Antennas
For thermal management to work well, it needs to use a variety of methods that are specifically designed for each deployment case and performance need. The use of conduction, convection, and radiation to move heat from critical junctions to ambient environments without using more power is what passive cooling methods are based on.
Attaching heat sinks to high-power parts makes the surface area available for convective cooling bigger. Computational fluid dynamics is used to find the best fin geometries that maximize how airflow interacts with them while minimizing weight penalties. Thermal interface materials between sinks and components lower contact resistance. However, when choosing a material, it's important to weigh thermal performance against long-term stability and the need for repair.
Thermal vias make vertical heat tracks through circuit boards, linking hot parts on the top layers to the ground planes and chassis sections below. Via farms, which are dense groups of plated through-holes, effectively spread heat over larger areas before it finally disappears. Strategically placing vias near phase shifter ICs and power amplifiers lowers peak junction temperatures by a large amount with little effect on RF performance.
Advanced Materials and Design Innovations
New material methods make it possible to better control heat. Graphene-enhanced thermal pads have a conductivity of over 1500 W/mK, which is much higher than that of standard silicone-based contacts. Aluminum nitride and silicon carbide substrates have good thermal conductivity (near 200 W/mK) and dielectric properties for RF circuits, but the high cost of the materials makes them hard to use on a large scale right now.
Low-power transistor methods cut down on the source of heat. Phase-change integrated circuits made on advanced CMOS nodes use 40–60% less power than older GaAs designs but have the same RF performance. When RF-MEMS switches or adjustable dielectrics are used in passive phase shifter applications, no DC power is used at all. However, switching speed and voltage needs are affected.
System-Level Thermal Management
Intelligent beamforming algorithms take temperature awareness into account to stop hotspots from forming. By giving beam duties to different array elements and only allowing prolonged maximum power operation in certain sections, the aperture's thermal load is spread out more equally. This software-defined method works with hardware cooling and doesn't need any extra mechanical systems.
When there is a lot of power or space is limited, active cooling solutions are needed. Thermoelectric coolers can control the temperature in a solid state, but they use a lot of power, sometimes more than the heat they remove, so they should only be used in situations where temperature differences are very important. Liquid cooling loops with microchannel cold plates are very good at getting rid of heat and can be used in crowded cities where forced air isn't practical for small cell deployments.
Case Studies of Thermal Budget Optimization in 5G Antenna with Phase Shifters
Real-life examples show how focused thermal tactics can solve certain deployment problems for a 5g antenna with phase shifter and lead to measured performance gains. When a big urban carrier first put in place massive MIMO base stations, they ran into thermal shutdowns during times of high traffic. The study found that phase shifter modules didn't have enough heat sinking, as joint temperatures were higher than the allowed 125°C.
The answer included special heat spreaders made of copper-molybdenum composite materials, which were picked because they have the right amount of thermal expansion for semiconductor packages. Computer models helped set up the heat sink's fins in a way that took advantage of the wind patterns at installation sites. These changes lowered the highest joint temperatures by 35°C, which stopped thermal shutdowns and increased the expected lifetime of the component by 40%. Within eighteen months, the investment paid off thanks to fewer maintenance calls and better network availability.
Compact Urban Antenna Modules
Urban installations with limited space needed new ways to deal with heat. A telecoms equipment maker that was making hidden antenna arrays for building integration had to deal with very strict size requirements. The radomes had to be no bigger than 30 cm in diameter and had to hold 64-element arrays with built-in phase control. The usual ways of dealing with heat sinks were geometrically impossible.
Engineers used phase change materials that were placed behind areas with a lot of power. During times of high traffic, these materials store heat through latent heat of fusion. During times of low traffic, natural airflow lets the stored energy escape. With vapor chamber heat spreaders that spread heat in two dimensions, the system kept junction temperatures within the acceptable range during daily job cycles. Twelve installations were tested in the field to make sure they could keep running smoothly during the hottest parts of summer without using active cooling.
Procurement and Technical Considerations for Buying 5G Antennas with Phase Shifters
To choose antenna systems with good thermal management, you need to carefully look at the technical specs and the supplier's abilities. Equipment rated for industrial temperature extremes (-40°C to +85°C) has better thermal engineering than commercial-grade options. The operating temperature range specs show the design gaps. The thermal resistance values show how well heat moves from semiconductor junctions to mounting surfaces. Lower values mean that heat moves more efficiently.
The amount of power used directly shows the heat load. Detailed datasheets should show how much power is used in both send and receive modes, as well as how much power is used by the phase shifter control circuits. Active phase shifter systems that use 150mW per element will make a lot more heat than passive systems that use 20mW per element, so they need different ways to cool down.
Evaluating Phase Shifter Technologies
Which one to use—active or passive—depends on the needs of the program and the amount of money you have to spend on cooling. Active designs allow beam swapping every microsecond and continuous phase setting over a full 360-degree range, which is necessary for advanced beamforming algorithms that track moving people. But because they use power all the time, they need strong cooling systems that are more expensive and complicated.
Passive phase shifters don't lose power when they're not in use; they only generate heat when they switch between modes. Their smaller thermal size makes designing cooling systems easier and lowers total power use, both of which are important for battery-powered systems or places with limited grid power. Some performance trade-offs are slower switching speeds and discrete phase steps instead of continuous tuning, which could limit the resolution of beamforming.
Supplier Engagement and Customization
Leading makers show they know how to handle temperature issues by keeping records of their tests and data from using their products in the field. Teams in charge of buying things should ask for thermal simulation reports that show what the junction temperatures would be in the worst-case scenarios and make sure they match up with actual measurements. Suppliers who offer customization can change standard designs to fit the conditions of a specific site, making cooling architectures that work best with local climate data.
Quality standards make sure that the way things are made is consistent. RoHS compliance proves that the materials used are safe for use around the world, while ISO 9001 certification shows that quality control systems have been in place for a while. Long-term reliability data, such as mean time between failure figures from fielded equipment, provide concrete performance proof that goes beyond meeting the initial requirements.
Conclusion
The design of a 5g antenna with phase shifter array is fundamentally influenced by thermal budget limitations, which have a direct effect on performance, reliability, and lifecycle costs. Phase shifter modules and RF amplifiers produce heat, which creates thermal loads that need advanced management strategies that use passive heat spreading, high-tech materials, and smart operational algorithms. When people are buying things, they need to look at both the electrical and thermal specs. If the thermal design isn't right, the network won't work as well in the long run, even if the electrical performance is good at first. When deployments go well, they combine active versus passive phase shifter technologies based on the needs of the application and the cooling infrastructure that is available. This makes sure that the system can keep running in harsh environments without losing performance or breaking down too soon.
Frequently Asked Questions
What differentiates active from passive phase shifters in thermal performance?
Active phase shifters use amplifiers and changeable attenuators that need a constant DC bias current and usually lose between 50 and 200 mW per element. Passive versions that use RF-MEMS switches or ferrite materials only use power when the state changes, which greatly lowers the steady-state thermal load. The choice depends on how fast the beamforming needs to be done and how much heat you can handle.
How do operating temperatures affect phase accuracy?
Semiconductor phase switches have electrical properties that change with temperature. At millimeter-wave frequencies, a 30°C temperature rise can cause changes in substrate permittivity and semiconductor carrier mobility that can shift phase response by 3–8 degrees. If this isn't fixed, it could affect the accuracy of beam pointing and sidelobe performance.
Can thermal management be upgraded after the system has been set up?
Retrofitting improvements are limited by the way the equipment works, but it is still possible. You can lower working temperatures without changing core antenna parts by using better thermal interface materials, adding more heat sinks, or better managing airflow. However, how well they work depends on the design margins you already have and how easy they are to reach.
