Double-Ridged Waveguide Magic Tee: Frequency Range up to 40 GHz Explained
The Double-Ridged Waveguide Magic Tee represents a pinnacle of microwave engineering, offering unparalleled signal distribution and combining capabilities across an extensive frequency spectrum. This sophisticated component serves as a critical junction in high-frequency applications, enabling precise power splitting and synthesis with minimal loss characteristics. Operating effectively up to 40 GHz and beyond, the Double-Ridged Waveguide Magic Tee demonstrates superior performance in demanding environments where signal integrity and reliability are paramount. Its unique dual-ridge architecture enhances bandwidth capabilities while maintaining exceptional isolation between ports, making it an indispensable tool for modern microwave systems in aerospace, defense, and telecommunications sectors.
Technical Architecture and Design Principles

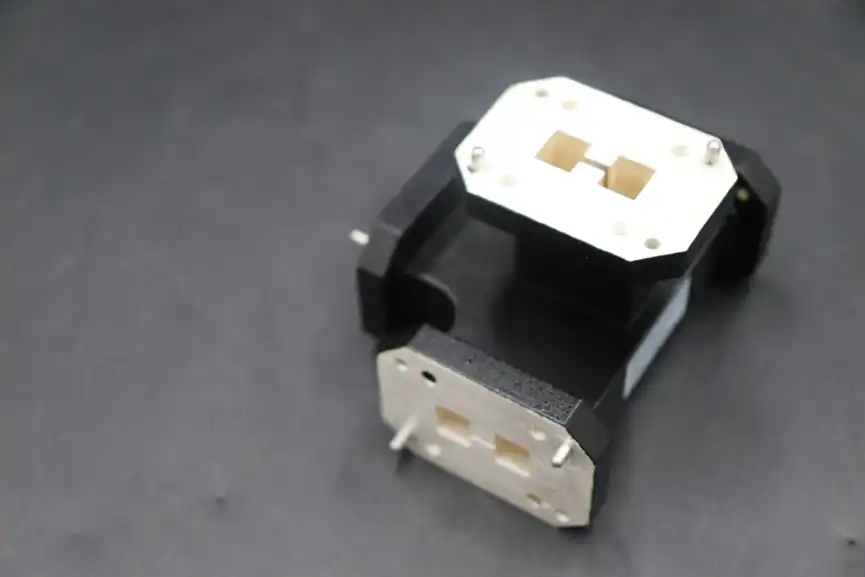

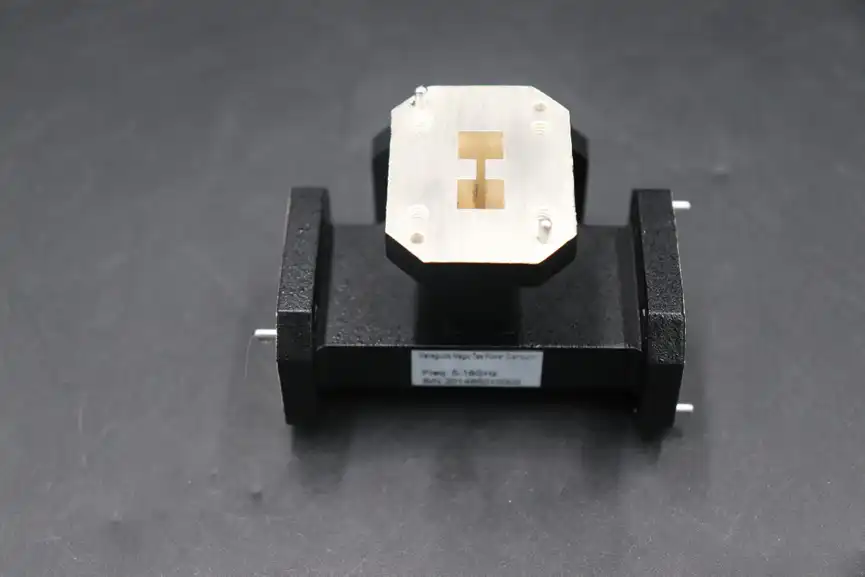

Dual-Ridge Structure Configuration
The fundamental design philosophy behind the Double-Ridged Waveguide Magic Tee centers on its innovative dual-ridge architecture, which significantly enhances operational bandwidth compared to conventional rectangular waveguides. This sophisticated structure incorporates two parallel ridges positioned symmetrically within the waveguide cross-section, creating a controlled impedance environment that supports broadband operation from 2 GHz to 110 GHz. The ridge configuration effectively reduces the cutoff frequency while maintaining single-mode propagation characteristics, enabling the Double-Ridged Waveguide Magic Tee to handle high-power applications with exceptional efficiency. The precision-machined aluminum or copper construction ensures minimal surface roughness, reducing conductor losses and maintaining signal integrity across the entire frequency range. Advanced Microwave Technologies Co., Ltd. has optimized this design through extensive electromagnetic simulation and testing in their state-of-the-art 24m Microwave Darkroom, ensuring that each Double-Ridged Waveguide Magic Tee meets stringent performance specifications for insertion loss, isolation, and power handling capabilities.
Power Distribution and Synthesis Mechanisms
The power distribution mechanism within the Double-Ridged Waveguide Magic Tee operates on fundamental electromagnetic principles that enable equal power splitting from a single input port to two output ports, or conversely, power combining from two input ports to a single output. This bidirectional functionality is achieved through carefully designed junction geometry that maintains phase relationships and impedance matching across all ports. The magic tee configuration incorporates both E-plane and H-plane junctions, creating isolated transmission paths that prevent signal interference between different channels. Advanced Microwave Technologies Co., Ltd. has engineered the Double-Ridged Waveguide Magic Tee with insertion loss specifications of ≤ 0.3 dB, ensuring minimal signal degradation during power distribution operations. The synthesis capability allows for coherent power combining with theoretical zero loss under ideal conditions, making it invaluable for applications requiring high-power transmission or reception. The robust construction materials and precision manufacturing processes ensure long-term stability and reliability, even under extreme environmental conditions ranging from -40°C to +85°C.
Isolation Performance and Signal Integrity
Port isolation represents a critical performance parameter for the Double-Ridged Waveguide Magic Tee, with Advanced Microwave Technologies Co., Ltd. achieving isolation levels of ≥ 30 dB between specific port combinations. This exceptional isolation prevents signal crosstalk in multi-channel microwave systems, ensuring that each transmission path maintains its independence and signal quality. The isolation mechanism relies on the orthogonal electromagnetic field orientations within the waveguide structure, creating natural barriers that prevent energy coupling between isolated ports. This characteristic proves essential in applications such as radar systems, satellite communications, and antenna arrays where multiple signals must coexist without interference. The Double-Ridged Waveguide Magic Tee's isolation performance remains stable across the entire operational frequency range, providing consistent signal separation that enhances overall system performance. Quality control processes at Advanced Microwave Technologies Co., Ltd. include comprehensive isolation testing using advanced network analyzers, ensuring that each Double-Ridged Waveguide Magic Tee meets or exceeds specified isolation requirements before delivery to customers.
Frequency Range Capabilities and Performance Analysis
Broadband Operation from 2 GHz to 110 GHz
The impressive frequency range capability of the Double-Ridged Waveguide Magic Tee stems from its optimized ridge geometry and precise dimensional control, enabling operation across multiple frequency bands from 2 GHz to 110 GHz. This extensive coverage encompasses critical communication bands including S-band, C-band, X-band, Ku-band, K-band, Ka-band, and millimeter-wave frequencies, making it suitable for diverse applications in satellite communications, radar systems, and emerging 5G/6G technologies. The dual-ridge configuration maintains consistent impedance characteristics across this broad spectrum, ensuring reliable performance without the need for frequency-specific adjustments or modifications. Advanced Microwave Technologies Co., Ltd. has validated the Double-Ridged Waveguide Magic Tee's performance through extensive testing in their ISO-certified laboratories, utilizing measurement equipment capable of characterizing components up to 110 GHz. The broadband nature of this component reduces system complexity by eliminating the need for multiple frequency-specific devices, resulting in cost savings and improved reliability for end users.
High-Frequency Performance Characteristics
At higher frequencies approaching 40 GHz and beyond, the Double-Ridged Waveguide Magic Tee demonstrates remarkable performance stability, maintaining low insertion loss and high isolation characteristics that are essential for millimeter-wave applications. The precision manufacturing techniques employed by Advanced Microwave Technologies Co., Ltd. ensure dimensional accuracy within tight tolerances, preventing performance degradation that commonly occurs in high-frequency applications due to manufacturing imperfections. Surface finish quality becomes increasingly critical at these frequencies, and the company's advanced machining capabilities produce components with minimal surface roughness, reducing conductor losses and maintaining signal integrity. The Double-Ridged Waveguide Magic Tee's performance at high frequencies makes it particularly valuable for automotive radar systems, point-to-point communications, and scientific instrumentation applications where signal quality and reliability are paramount. Thermal stability considerations are also addressed through careful material selection and thermal expansion coefficient matching, ensuring consistent performance across the specified operating temperature range.
Frequency Response Optimization
The frequency response optimization of the Double-Ridged Waveguide Magic Tee involves sophisticated electromagnetic modeling and iterative design refinement to achieve optimal performance across the entire operational bandwidth. Advanced Microwave Technologies Co., Ltd. employs state-of-the-art simulation software and validation testing to minimize frequency-dependent variations in insertion loss, isolation, and return loss parameters. The ridge profile optimization process considers factors such as characteristic impedance matching, modal field distribution, and higher-order mode suppression to ensure clean frequency response without spurious resonances or performance anomalies. This optimization extends to the junction design, where careful attention to corner radii, transition profiles, and dimensional relationships ensures smooth electromagnetic field transitions between different waveguide sections. The resulting frequency response characteristics demonstrate flat insertion loss performance across the operational band, with minimal ripple and excellent return loss specifications that indicate superior impedance matching throughout the frequency range.
Applications and Industry Implementation
Satellite Communication Systems
In satellite communication applications, the Double-Ridged Waveguide Magic Tee serves as a fundamental building block for antenna feed networks, signal distribution systems, and ground station equipment. The component's ability to efficiently split and combine high-frequency signals makes it indispensable for satellite transponder systems, where multiple communication channels must be processed simultaneously without interference. Advanced Microwave Technologies Co., Ltd. has developed specialized versions of the Double-Ridged Waveguide Magic Tee for satellite applications, incorporating enhanced power handling capabilities and environmental protection features necessary for space-based operations. The low insertion loss characteristics ensure minimal signal degradation in satellite links, where every decibel of performance directly impacts communication quality and system range. The robust construction and materials selection provide long-term reliability in the harsh space environment, including temperature cycling, radiation exposure, and vacuum conditions that would challenge lesser components.
Radar and Defense Applications
Military and defense applications represent a significant market for the Double-Ridged Waveguide Magic Tee, where its superior performance characteristics and reliability prove essential for mission-critical systems. In radar applications, the component enables precise beam forming and signal processing functions that are fundamental to target detection, tracking, and identification capabilities. The high isolation performance prevents signal leakage that could compromise system security or operational effectiveness, while the broadband operation supports multi-frequency radar systems and electronic warfare applications. Advanced Microwave Technologies Co., Ltd. manufactures the Double-Ridged Waveguide Magic Tee to meet stringent military specifications and environmental requirements, ensuring reliable operation in harsh field conditions. The component's ability to handle high power levels makes it suitable for high-power radar transmitters and electronic countermeasure systems, where signal integrity and power efficiency are critical performance parameters.
Aerospace and Navigation Systems
The aerospace industry relies heavily on the Double-Ridged Waveguide Magic Tee for various communication and navigation systems, where its lightweight construction and exceptional performance characteristics provide significant advantages. In aircraft applications, the component supports air traffic control systems, weather radar, and communication equipment that must operate reliably across varying altitude and environmental conditions. The compact design and flexible mounting options enable integration into space-constrained aircraft installations, while the robust construction ensures continued operation despite vibration, temperature variations, and other environmental stresses. Advanced Microwave Technologies Co., Ltd. has developed specialized versions of the Double-Ridged Waveguide Magic Tee for aerospace applications, incorporating materials and construction techniques that meet aviation industry standards for reliability and performance. The component's frequency range capabilities support both legacy and next-generation aviation systems, providing long-term value and upgrade compatibility for aircraft operators.
Conclusion
The Double-Ridged Waveguide Magic Tee represents a sophisticated solution for high-frequency signal distribution and combining applications, offering exceptional performance across an extensive frequency range up to 40 GHz and beyond. With its superior isolation characteristics, minimal insertion loss, and robust construction, this component addresses the demanding requirements of modern microwave systems in satellite communications, defense, aerospace, and navigation applications. The advanced engineering and manufacturing capabilities of Advanced Microwave Technologies Co., Ltd. ensure consistent quality and reliability for mission-critical applications worldwide.
Ready to enhance your microwave systems with cutting-edge technology? As a leading China Double-Ridged Waveguide Magic Tee factory, China Double-Ridged Waveguide Magic Tee supplier, China Double-Ridged Waveguide Magic Tee manufacturer, and China Double-Ridged Waveguide Magic Tee wholesale provider, Advanced Microwave Technologies Co., Ltd. offers comprehensive OEM services, rapid prototyping, and technical support backed by over 20 years of industry experience. Our ISO-certified facilities and expert engineering team deliver customized solutions that meet your specific requirements. With our perfect supply chain system, competitive pricing, and strict quality control, we ensure fast delivery and exceptional after-sales support. Contact our technical team today at craig@admicrowave.com to discuss your project requirements and discover how our Double-Ridged Waveguide Magic Tee can optimize your system performance.
